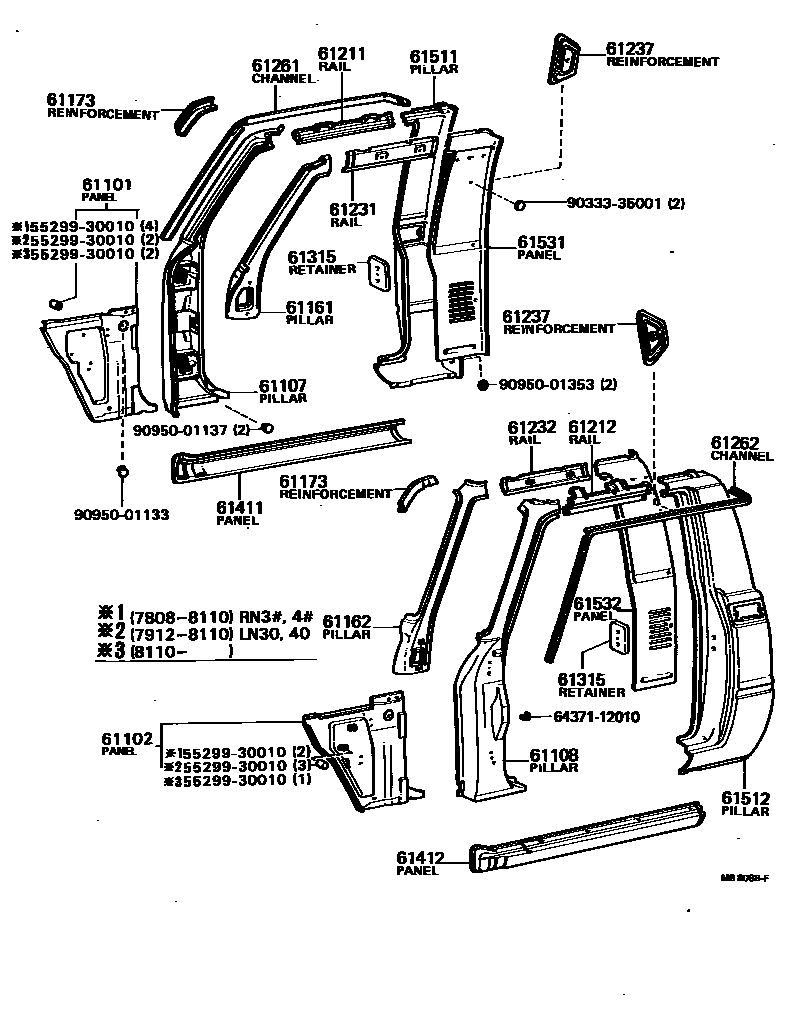

SIDE MEMBER

0001 1 0002 1

61101PANEL SUB-ASSY, COWL SIDE, RH

main61101-89116iRN30,33,4#197808-198110

main61101-89117iRN36197910-198110

main61101-89122iLN3#,4#,RN35,39,45197912-198809

61102PANEL SUB-ASSY, COWL SIDE, LH

main61102-89113iRN30,33,4#197808-198110

main61102-89118iLN30,40197912-198110

main61102-89122iLN30,40,41,RN35,45198110-198809

main61102-95112iRN36197910-198110

main61102-95115iLN36,46,RN39198110-198310

61107PILLAR SUB-ASSY, FRONT BODY OUTER, RH

main61027-89101iLN30,40,RN3#,43197912-198108

main61027-89102iRN30,40..DLX,STD197808-197912

main61027-89104iLN3#,4#,RN3#,4#198108-198407

main61027-89105iLN4#,RN35,45198407-198809

61108PILLAR SUB-ASSY, FRONT BODY OUTER, LH

main61028-89101iLN30,40,RN3#,43197912-198108

main61028-89102iRN30,40..DLX,STD197808-197912

main61028-89104iLN3#,4#,RN3#,4#198108-198407

main61028-89105iLN4#,RN35,45198407-198809

61161PILLAR, FRONT BODY, UPPER INNER RH

main61161-89105iLN3#,4#,RN3#,4#197808-198809

61162PILLAR, FRONT BODY, UPPER INNER LH

main61162-89105iLN3#,4#,RN3#,4#197808-198809

61173REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER

main61173-89101iRN30,40..DLX,STD197808-197912

RH

main61174-89101iLN41,RN35,45198608-198809

LH

61211RAIL, ROOF SIDE, OUTER RH

main61211-89103iLN3#,4#,RN3#,4#197808-198809

main61211-89104iLN4#,RN45..TW198110-198310

61212RAIL, ROOF SIDE, OUTER LH

main61212-89103iLN3#,4#,RN3#,4#197808-198809

main61212-89104iLN4#,RN45..TW198110-198310

61231RAIL, ROOF SIDE, INNER RH

main61231-89107iLN30,40,41,RN30,33,35,4#..T1197808-198809

main61231-95111iLN36,46,RN36,39..T1197910-198310

61232RAIL, ROOF SIDE, INNER LH

main61232-89107iLN30,40,41,RN30,33,35,4#..T1197808-198809

main61232-95111iLN36,46,RN36,39..T1197910-198310

61237REINFORCEMENT, SAFETY BAND ANCHORAGE

main61766-89101×2iLN30,40,41,RN30,33,35,4#..T1..(DLX,STD)197808-198809

main61766-89102×2iLN36,46,RN36,39..T1197910-198310

61261CHANNEL, ROOF DRIP, RH

main61261-89102iLN30,40,41,RN30,33,35,4#..T1..(DLX,STD)197808-198809

main61261-89103iLN40,RN4#..SDX197808-198310

main61261-89104iLN4#,RN45..TW198110-198310

61262CHANNEL, ROOF DRIP, LH

main61262-89102iLN30,40,41,RN30,33,35,4#..T1..(DLX,STD)197808-198809

main61262-89103iLN40,RN4#..SDX197808-198310

main61262-89104iLN4#,RN45..TW198110-198310

61315RETAINER, DOOR LOCK STRIKER PLATE

main61309-89101×2iLN3#,4#,RN3#,4#197808-198809

61411PANEL, ROCKER, OUTER RH

main61411-89104iLN3#,4#,RN3#,4#197808-198809

61412PANEL, ROCKER, OUTER LH

main61412-89104iLN3#,4#,RN3#,4#197808-198809

61511PILLAR, QUARTER LOCK, RH

main61511-89106iLN46..TW198110-198310

main61511-89107iLN40,RN4#..SDX197808-198310

main61511-89122iLN41,RN35,45198608-198809

61512PILLAR, QUARTER LOCK, LH

main61512-89110iLN46..TW198110-198310

main61512-89111iLN36,46,RN36,39..T1197910-198310

main61512-89112iRN40..SDX197808-197905

main61512-89131iLN41,RN35,45198608-198809

61531PANEL, BACK CORNER, INNER RH

main61531-89107iLN46..TW198110-198310

main61531-89108iLN36,46,RN36,39..T1197910-198310

main61531-89119iLN41,RN35,45198608-198809

61532PANEL, BACK CORNER, INNER LH

main61532-89107iLN46..TW198110-198310

main61532-89108iLN40,RN4#..SDX197808-198310

main61532-89119iLN41,RN35,45198608-198809

5529930010CAP, TEE NUT(FOR 6MM)

main55299-30010

6437112010RETAINER, PACKAGE TRAY TRIM

main64371-12010

9033335001

main90333-35001

9095001133

main90950-01133

9095001137

main90950-01137

9095001353

main90950-01353

27 parts on this diagram · 2 diagrams in section
