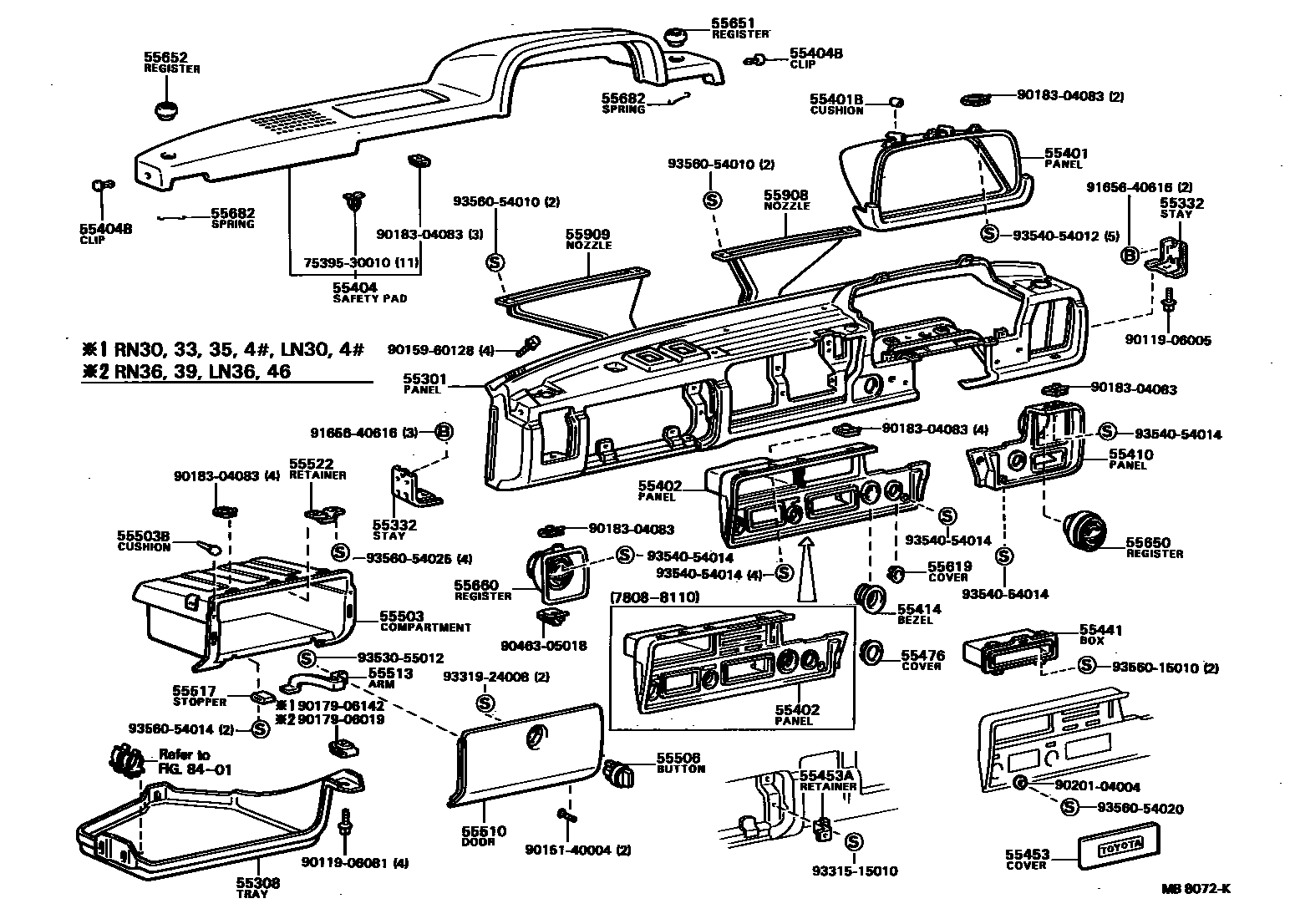

INSTRUMENT PANEL & GLOVE COMPARTMENT

55301PANEL SUB-ASSY, INSTRUMENT

main55301-89113iLN30,40,RN3#,4#197808-198008

main55301-89117iLN30,40,RN3#,43198008-198110

main55301-89118iLN3#,4#,RN3#,45198110-198809

55308TRAY SUB-ASSY, INSTRUMENT PANEL UNDER

main55611-89101iLN3#,4#,RN3#,4#197808-198809

55332STAY, INSTRUMENT PANEL

main55326-89101iLN3#,4#,RN3#,4#197808-198809

RH

main55327-89102iLN3#,4#,RN3#,4#197808-198809

LH

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55411-89103-01iLN3#,4#,RN3#,4#197808-198809

BLACK,BLACK,TRIM2#

main55411-89103-04iLN30,40,41,RN30,33,35,4#197808-198809

BLUE,BLUE,TRIM8#

main55411-89103-05iLN30,40,RN3#,4#..DLX,SDX197808-198110

BEIGE,BEIGE,TRIM4#

main55411-89103-06iLN3#,4#,RN3#,45..DLX,SDX198110-198508

BROWN,BROWN,TRIM4#

55401BCUSHION, INSTRUMENT CLUSTER FINISH PANEL

main55419-89101×2iLN3#,4#,RN3#,4#197808-198809

55402PANEL SUB-ASSY, INSTRUMENT LAYOUT, CENTER

main55405-89104iRN36197910-198008

SR PACKAGE,WOODGRAIN

main55405-89112iRN33,43..STD198008-198110

main55405-89116iLN30,40,RN3#,43..DLX198008-198110

main55405-89121iLN40,RN43..SDX; RN36198008-198110

SR PACKAGE,WOODGRAIN

main55405-89150iLN36,46,RN39; LN40,RN45..SDX198110-198310

SR PACKAGE,WOODGRAIN

main55434-89102iRN30,33,4#..STD197808-198008

main55434-89104iLN30,40,RN3#,4#..DLX197808-198008

main55434-89133iRN35..STD198110-198809

main55434-89134iLN3#,4#,RN3#,45..DLX198110-198809

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-89101-01iRN30,33,4#..STD197808-198002

BLACK,BLACK,TRIM2#

main55401-89101-04iRN30,33,4#..STD197808-198002

BLUE,BLUE,TRIM8#

main55401-89102-01iLN30,40,RN3#,4#..DLX,SDX197808-198002

BLACK,BLACK,TRIM2#

main55401-89102-04iLN30,40,RN30,33,4#..DLX,SDX197808-198002

BLUE,BLUE,TRIM8#

main55401-89102-05iLN30,40,RN3#,4#..DLX,SDX197808-198002

BEIGE,BEIGE,TRIM4#

main55401-89105-01iRN33,35,43..STD198002-198809

BLACK,BLACK,TRIM2#

main55401-89105-04iRN33,35,43..STD198002-198809

BLUE,BLUE,TRIM8#

main55401-89106-01iLN3#,4#,RN3#,4#..DLX,SDX198002-198809

BLACK,BLACK,TRIM2#

main55401-89106-04iLN30,40,41,RN33,35,4#..DLX,SDX198002-198809

BLUE,BLUE,TRIM8#

main55401-89106-05iLN30,40,RN3#,43..DLX,SDX198002-198110

BEIGE,BEIGE,TRIM4#

main55401-89106-06iLN3#,4#,RN3#,45..DLX,SDX198110-198508

BROWN,BROWN,TRIM4#

55404BCLIP, SAFETY PAD SET

main55466-89101-01×2iLN3#,4#,RN3#,4#197808-198809

BLACK,BLACK,TRIM2#

main55466-89101-04×2iLN30,40,41,RN30,33,35,4#197808-198809

BLUE,BLUE,TRIM8#

main55466-89101-05×2iLN30,40,RN3#,4#..DLX,SDX197808-198110

BEIGE,BEIGE,TRIM4#

main55466-89101-06×2iLN3#,4#,RN3#,45..DLX,SDX198110-198508

BROWN,BROWN,TRIM4#

55410PANEL ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55404-89108iLN30,40,RN3#,4#..DLX,STD197808-198110

main55404-89109iLN40,RN4#..SDX197808-198110

main55404-89112iLN3#,4#,RN3#,45..DLX,STD198110-198809

main55404-89113iLN36,46,RN39; LN40,RN45..SDX198110-198310

SR PACKAGE,WOODGRAIN

55414BEZEL, CIGAR LIGHTER HOLE

main55477-89101iLN3#,4#,RN3#,4#197808-198809

55441BOX, INSTRUMENT PANEL

main55441-89104iLN3#,4#,RN3#,45198110-198809

55453COVER, RADIO TUNER OPENING

main55522-89101-03iRN30,33,4#..STD197808-198110

GRAY,GRAY,TRIM2#

main55522-89102-03iRN35..STD198110-198201

DARK GRAY-M,GRAY,TRIM2#,8#

main55522-89103-03iRN35..STD198201-198809

DARK GRAY-M,GRAY,TRIM2#,8#

55453ARETAINER, RADIO TUNER OPENING, NO.1

main55437-89101iRN30,33,4#..STD197808-198110

main55437-89103iRN35..STD198110-198809

55476COVER, CIGARETTE LIGHTER HOLE

main55532-89102iRN36;RN30,33,35,40,43..STD197808-198809

55503COMPARTMENT SUB-ASSY, GLOVE

main55506-89101iLN3#,4#,RN3#,4#197808-198809

55503BCUSHION(FOR GLOVE COMPARTMENT)

main90541-04006×2iRN30,40197808-197903

main90541-04012×2iLN3#,4#,RN3#,4#197903-198809

55506BUTTON SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK

main55560-12020iLN3#,4#,RN3#,4#197808-198809

55510DOOR ASSY, GLOVE COMPARTMENT

main55501-89104-01iLN3#,4#,RN3#,4#197808-198307

BLACK,BLACK,TRIM2#

main55501-89104-04iLN30,40,41,RN30,33,35,4#197808-198809

BLUE,BLUE,TRIM8#

main55501-89104-05iLN30,40,RN3#,4#..DLX,SDX197808-198110

BEIGE,BEIGE,TRIM4#

main55501-89104-06iLN30,40,RN35,45..DLX,SDX198307-198508

BROWN,BROWN,TRIM4#

main55501-95117-01iLN36,46,RN39198307-198310

BLACK,BLACK,TRIM2#

main55501-95117-06iLN36,46,RN39198307-198310

BROWN,BROWN,TRIM4#

55513ARM, GLOVE COMPARTMENT DOOR CHECK

main55556-89101iLN3#,4#,RN3#,4#197808-198809

55517STOPPER, GLOVE COMPARTMENT DOOR ARM

main55517-89104iLN3#,4#,RN3#,4#197808-198809

55522RETAINER, GLOVE COMPARTMENT MALE

main55561-89102iLN3#,4#,RN3#,4#197808-198809

55619COVER, SWITCH HOLE

main55539-89102iRN36,39197910-198310

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-89103iLN3#,4#,RN3#,4#197808-198809

55651REGISTER, INSTRUMENT PANEL, NO.1

main55671-89112-01iLN3#,4#,RN3#,45198110-198809

BLACK,BLACK,TRIM2#

main55671-89112-04iLN30,40,41,RN35,45198110-198809

BLUE,BLUE,TRIM8#

main55671-89112-05iLN30,40,RN3#,4#..DLX,SDX197808-198110

BEIGE,BEIGE,TRIM4#

main55671-89112-06iLN3#,4#,RN3#,45..DLX,SDX198110-198508

BROWN,BROWN,TRIM4#

55652REGISTER, INSTRUMENT PANEL, NO.2

main55671-89113-01iLN3#,4#,RN3#,45198110-198809

BLACK,BLACK,TRIM2#

main55671-89113-04iLN30,40,RN30,33,4#..DLX,SDX197808-198110

BLUE,BLUE,TRIM8#

main55671-89113-05iLN30,40,RN3#,4#..DLX,SDX197808-198110

BEIGE,BEIGE,TRIM4#

main55671-89113-06iLN3#,4#,RN3#,45..DLX,SDX198110-198508

BROWN,BROWN,TRIM4#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55650-89101-03iLN30,40,RN3#,4#..DLX,STD197808-198110

DARK GRAY-M,GRAY,TRIM2#,4#,8#

main55650-89101-06iLN40,RN4#..SDX197808-198310

BROWN,BROWN,TRIM2#,4#

main55650-89101-13iLN3#,4#,RN3#,45..DLX,STD198110-198809

DARK GRAY-M,GRAY,TRIM2#

55682SPRING, INSTRUMENT PANEL REGISTER SUPPORT

main55686-89101×2iLN30,40,RN3#,4#..DLX,SDX197808-198110

55908NOZZLE SUB-ASSY, DEFROSTER, RH

main55950-89101iLN3#,4#,RN3#,4#197808-198809

55909NOZZLE SUB-ASSY, DEFROSTER, LH

main55960-89101iLN3#,4#,RN3#,4#197808-198809

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

7539530010CLIP, BACK DOOR MOULDING, NO.1

main75395-30010

9011906005

main90119-06005

9011906081

main90119-06081

9015140004

main90151-40004

9015960128

main90159-60128

9017906019

main90179-06019

9017906142

main90179-06142

9018304083

main90183-04083

9020104004

main90201-04004

9046305018

main90463-05018

9165640616

main91656-40616

9331515010

main93315-15010

9331924008

main93319-24008

9353055012

main93530-55012

9354054012

main93540-54012

9354054014

main93540-54014

9356015010

main93560-15010

9356054010

main93560-54010

9356054014

main93560-54014

9356054020

main93560-54020

9356054025

main93560-54025

51 parts on this diagram · 1 diagram in section
