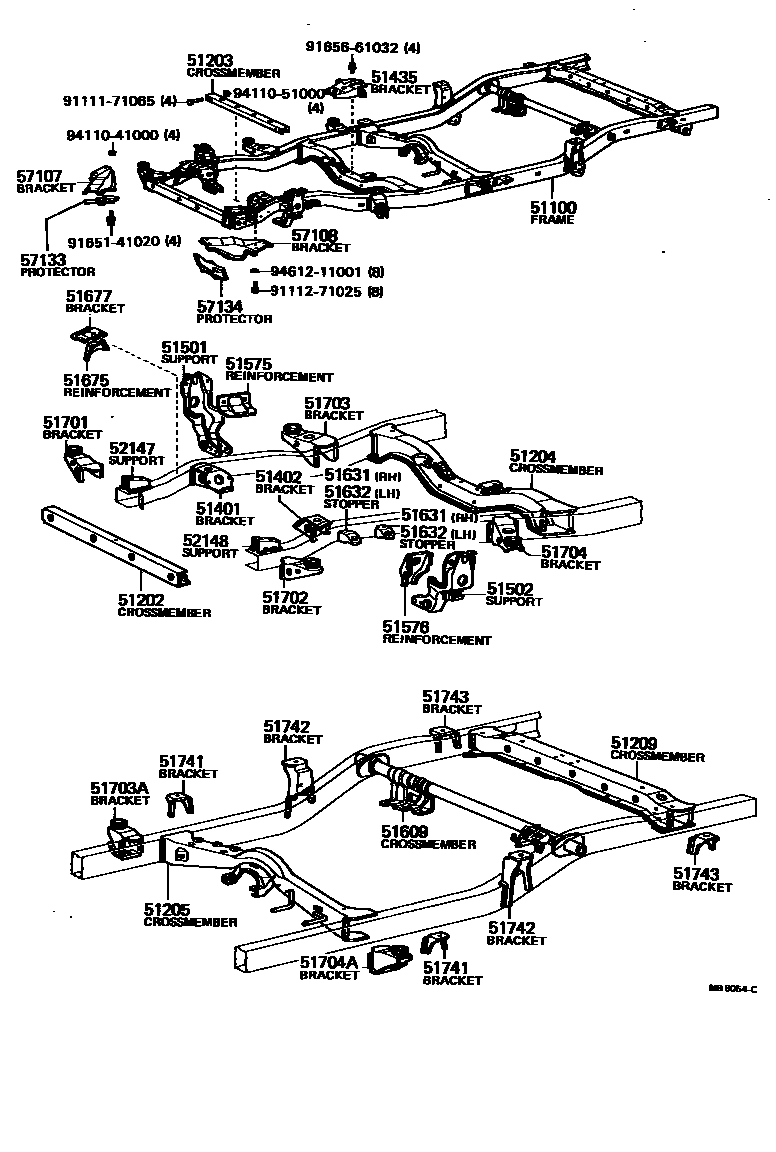

FRAME

0001 1 0002 1 0003 1 0004 1

51100FRAME ASSY

main51001-35660iRN30,33197808-198110

main51001-35661iRN35198110-198508

main51001-35662iRN35198508-198608

main51001-35663iRN35198608-198809

main51001-35710iRN4#..DLX,STD197808-198110

main51001-35711iRN45..T1..DLX198110-198508

main51001-35712iRN45198508-198608

main51001-35713iRN45198608-198809

main51001-35720iRN4#..SDX197808-198110

main51001-35721iRN45..SDX198110-198310

main51001-3D011iRN36197910-198001

main51001-3D012iRN36,39198001-198310

main51001-3D190iLN30197912-198110

main51001-3D191iLN30198110-198310

main51001-3D230iLN40..DLX197912-198110

main51001-3D231iLN40..T1..DLX198110-198508

main51001-3D232iLN41198508-198608

main51001-3D233iLN41198608-198809

main51001-3D240iLN40..SDX197912-198110

main51001-3D241iLN40..SDX198110-198310

main51001-3D440iLN36198110-198310

main51001-3D460iLN46..T1198110-198310

main51001-3D480iLN46..TW198110-198310

main51001-3D560iRN45..TW198110-198310

main51001-3D570iLN40..TW198110-198310

51202CROSSMEMBER SUB-ASSY, FRAME, NO.1

main51201-35070iLN30,40,41,RN30,33,35,4#197808-198809

main51201-35080iLN36,46,RN36,39197910-198310

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51202-35110iLN30,40,RN30,33,35,4#197808-198508

main51202-35130iRN36197910-198102

main51202-35131iRN36,39198102-198310

main51202-35151iLN36,46198110-198310

main51202-35160iLN41,RN35,45198508-198809

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51203-35150iLN30,40,RN30,33,4#197808-198002

main51203-35200iLN30,40,41198002-198809

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-35130iLN30,RN30,33,35197808-198809

main51204-35140iLN40,41,RN4#..T1197808-198809

main51204-35151iRN36197910-198108

main51204-35152iLN36,RN36,39198108-198310

main51204-35162iLN46..T1198110-198310

main51204-35180iLN40,RN45..TW198110-198310

main51204-35200iLN46..TW198110-198310

51209CROSSMEMBER SUB-ASSY, FRAME, NO.8

main51209-35080iLN3#,4#,RN3#,4#197808-198508

main51209-35081iLN41,RN35,45198508-198809

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-35120iRN30,33,35,4#197808-198809

main51401-35150iLN36,46,RN36,39197910-198310

main51401-35160iLN30,40,41197912-198809

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-35120iRN30,33,35,4#197808-198809

main51402-35150iLN36,46,RN36,39197910-198310

main51402-35160iLN30,40,41197912-198809

51435BRACKET, ENGINE REAR MOUNTING

main51431-35020iLN30,RN30,33,4#197808-198008

main51431-35030iLN40197912-198008

main51431-35060iLN40198404-198508

main51431-35070iRN35,45198404-198508

51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH

main51501-35010iLN30,40,41,RN30,33,35,4#197808-198809

main51505-35030iRN36197910-198310

main51505-35031iLN36,46,RN36,39198108-198310

51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH

main51502-35010iLN30,40,41,RN30,33,35,4#197808-198809

51575REINFORCEMENT, SUSPENSION ARM SUPPORT, NO.1

main51573-35010×2iLN30,40,41,RN30,33,35,4#197808-198809

51576REINFORCEMENT, SUSPENSION ARM SUPPORT, NO.2

main51575-35020×2iLN30,40,41,RN30,33,35,4#197808-198809

51609CROSSMEMBER SUB-ASSY, REAR SHOCK ABSORBER SUPPORT

main51205-35080iLN3#,4#,RN3#,4#..T1197808-198809

main51205-35090iLN4#,RN45..TW198110-198310

51631STOPPER, FRONT SUSPENSION REBOUND, RH

main51631-35020iLN30,40,41,RN30,33,35,4#197808-198809

RR

main51632-35020iLN30,40,41,RN30,33,35,4#197808-198809

FR

51632STOPPER, FRONT SUSPENSION REBOUND, LH

main51631-35020iLN30,40,41,RN30,33,35,4#197808-198809

FR

main51632-35020iLN30,40,41,RN30,33,35,4#197808-198809

RR

51675REINFORCEMENT, STEERING GEAR BOX SUPPORT

main51675-35070iLN30,40,41,RN30,33,35,4#197808-198809

51677BRACKET, STEERING GEAR BOX

main51679-35010iLN30,40,41,RN30,33,35,4#197808-198809

51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH

main51701-35050iLN30,40,41,RN30,33,35,4#197808-198809

main51701-35060iLN36,46,RN36,39197910-198310

51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH

main51701-35050iLN30,40,41,RN30,33,35,4#197808-198809

main51701-35060iLN36,46,RN36,39197910-198310

51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH

main51703-35010iLN30,40,41,RN30,33,35,4#197808-198809

main51703-35020iRN36197910-198103

main51703-35021iLN36,46,RN36,39198103-198310

51703ABRACKET SUB-ASSY, CAB REAR MOUNTING, RH

main51705-35040iLN3#,4#,RN3#,4#197808-198608

main51705-35050iLN41,RN35,45198608-198809

51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH

main51703-35010iLN30,40,41,RN30,33,35,4#197808-198809

main51704-35040iRN36197910-198103

main51704-35041iLN36,46,RN36,39198103-198310

51704ABRACKET SUB-ASSY, CAB REAR MOUNTING, LH

main51705-35040iLN3#,4#,RN3#,4#197808-198608

main51705-35050iLN41,RN35,45198608-198809

51741BRACKET, REAR BODY MOUNTING, NO.1

main51741-35050×2iLN3#,4#,RN3#,4#..T1197808-198312

51742BRACKET, BODY MOUNTING, NO.2

main51742-35040iLN3#,4#,RN3#,4#..T1197808-198809

RH

main51742-35060iLN4#,RN45..TW198110-198310

RH

main51743-35060iLN3#,4#,RN3#,4#..T1197808-198809

LH

main51743-35070iLN4#,RN45..TW198110-198310

LH

51743BRACKET, BODY MOUNTING, NO.3

main51741-35050×2iLN3#,4#,RN3#,4#197808-198809

52147SUPPORT, FRONT BUMPER, RH

main52147-35010iLN30,40,41,RN30,33,35,4#197808-198809

main52147-35020iLN36,46,RN36,39197910-198310

52148SUPPORT, FRONT BUMPER, LH

main52148-35010iLN30,40,41,RN30,33,35,4#197808-198809

main52148-35020iLN36,46,RN36,39197910-198310

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57107-35020iLN30,40,41,RN30,33,35,4#197808-198809

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-35020iLN30,40,41,RN30,33,35,4#197808-198809

57133PROTECTOR, STRUT BAR BRACKET, RH

main57133-35010iLN30,40,41,RN30,33,35,4#197808-198809

57134PROTECTOR, STRUT BAR BRACKET, LH

main57133-35010iLN30,40,41,RN30,33,35,4#197808-198809

9111171065

main91111-71065

9111271025

main91112-71025

9165141020

main91651-41020

9165661032

main91656-61032

9411041000

main94110-41000

9411051000

main94110-51000

9461211001

main94612-11001

40 parts on this diagram · 4 diagrams in section
