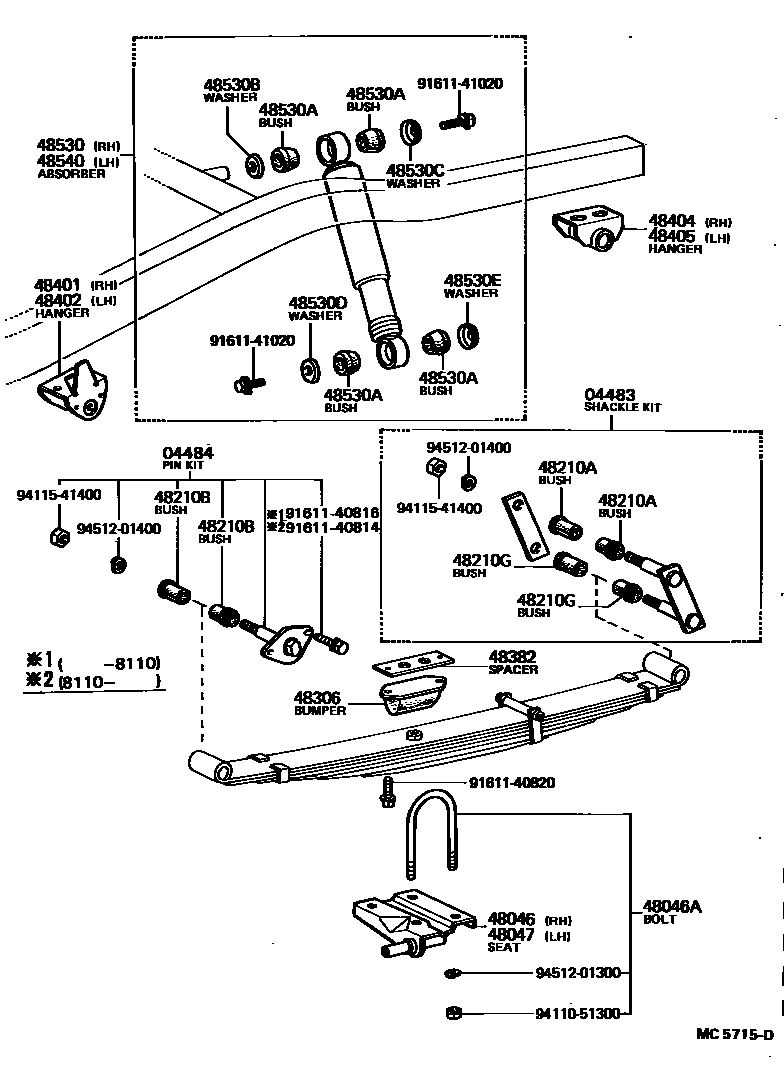

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1

04483SHACKLE KIT, REAR SPRING

main04483-26010×2iLN3#,4#,RN3#,4#197808-198809

sub04483-35040

04484PIN KIT, REAR SPRING

main04484-27010×2iLN3#,4#,RN3#,4#197808-198809

sub04482-35030

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-35040iLN36,46,RN36,39197910-198310

main48046-35050iLN30,40,41,RN30,33,35,4#197808-198809

48046ABOLT, U(FOR REAR SPRING)

main90118-13091×4iLN30,40,41,RN30,33,35,4#197808-198809

sub90117-13082

sub94110-51300

sub94512-01300

main90118-13103×4iLN30,40,41,RN35,45198110-198809

W/6-LEAF SPRING

sub90117-13063

main90118-14174×4iLN36,46,RN36,39197910-198310

sub90117-14008

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48047-35040iLN36,46,RN36,39197910-198310

main48047-35050iLN30,40,41,RN30,33,35,4#197808-198809

48210SPRING ASSY, REAR RH

main48210-35120iLN30,40,41,RN30,33,35,4#197906-198809

main48210-35170iLN36,46,RN36,39197910-198310

main48210-35200iRN30,40197808-197906

main48210-35230iRN43..SDX197912-198110

W/185R-14 TIRE

main48210-35250iLN30,40,41,RN35,45198110-198809

sub48210-35251

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-18046×4iLN3#,4#,RN3#,4#197808-198809

48210BBUSH(FOR REAR SPRING PIN)

main90385-18046×4iLN3#,4#,RN3#,4#197808-198809

48210GBUSH(FOR REAR SPRING SHACKLE LOWER)

main90385-18046×4iLN3#,4#,RN3#,4#197808-198809

48306BUMPER SUB-ASSY, REAR SPRING

main48306-35040×2iLN36,46,RN36,39197910-198310

main48341-35020×2iLN30,40,41,RN30,33,35,4#197808-198809

48382SPACER, BUMPER BLOCK

main48382-35020×2iRN43..SDX197912-198110

W/185R-14 TIRE

48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH

main48414-35050iLN3#,4#,RN3#,4#197808-198809

48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH

main48414-35050iLN3#,4#,RN3#,4#197808-198809

48404BRACKET SUB-ASSY, REAR SPRING, REAR RH

main48416-35050iLN3#,4#,RN3#,4#197808-198809

48405BRACKET SUB-ASSY, REAR SPRING, REAR LH

main48416-35050iLN3#,4#,RN3#,4#197808-198809

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-39325iLN30,40,41,RN30,33,35,4#197808-198809

sub48531-39326

main48531-39375iRN36,39197910-198310

main48531-39475iLN36,46198110-198310

sub48531-39476

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16007×8iLN3#,4#,RN3#,4#197808-198809

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03004×2iLN3#,4#,RN3#,4#197808-198809

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03012×2iLN3#,4#,RN3#,4#197808-198809

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03012×2iLN3#,4#,RN3#,4#197808-198809

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004×2iLN3#,4#,RN3#,4#197808-198809

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-39325iLN30,40,41,RN30,33,35,4#197808-198809

sub48531-39326

main48531-39375iRN36,39197910-198310

main48531-39475iLN36,46198110-198310

sub48531-39476

9161140814

main91611-40814

9161140816

main91611-40816

9161140820

main91611-40820

9161141020

main91611-41020

9411051300

main94110-51300

9411541400

main94115-41400

9451201300

main94512-01300

9451201400

main94512-01400

30 parts on this diagram · 4 diagrams in section
