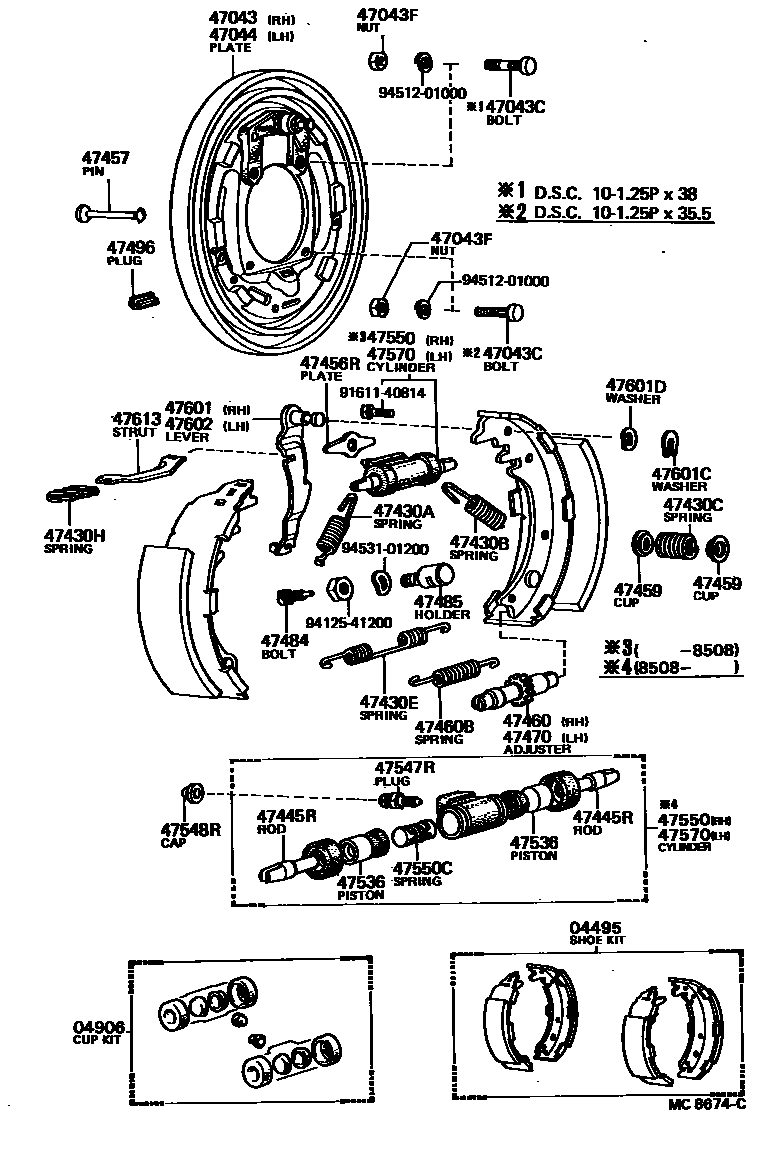

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE
04495SHOE KIT, REAR BRAKE
04906CUP KIT, REAR WHEEL CYLINDER
47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47430ASPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430BSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430HSPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)
47445RROD, REAR WHEEL CYLINDER
47456RPLATE, REAR BRAKE SHOE GUIDE
47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47459CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)
47460BSPRING, TENSION(FOR REAR BRAKE ADJUSTER)
47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)
47484BOLT, REAR BRAKE SHOE RETRACTING SPRING CLAMP
47485SPACER OR HOLDER, SHOE RETRACTING SPRING CLAMP
47496PLUG, HOLE(FOR REAR BRAKE)
47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)
47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)
47601CWASHER, C(FOR REAR BRAKE)
47601DWASHER, WAVE(FOR REAR BRAKE)
47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)
47613STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE)
9161140814
main91611-40814
9412541200
main94125-41200
9451201000
main94512-01000
9453101200
main94531-01200
36 parts on this diagram · 3 diagrams in section
