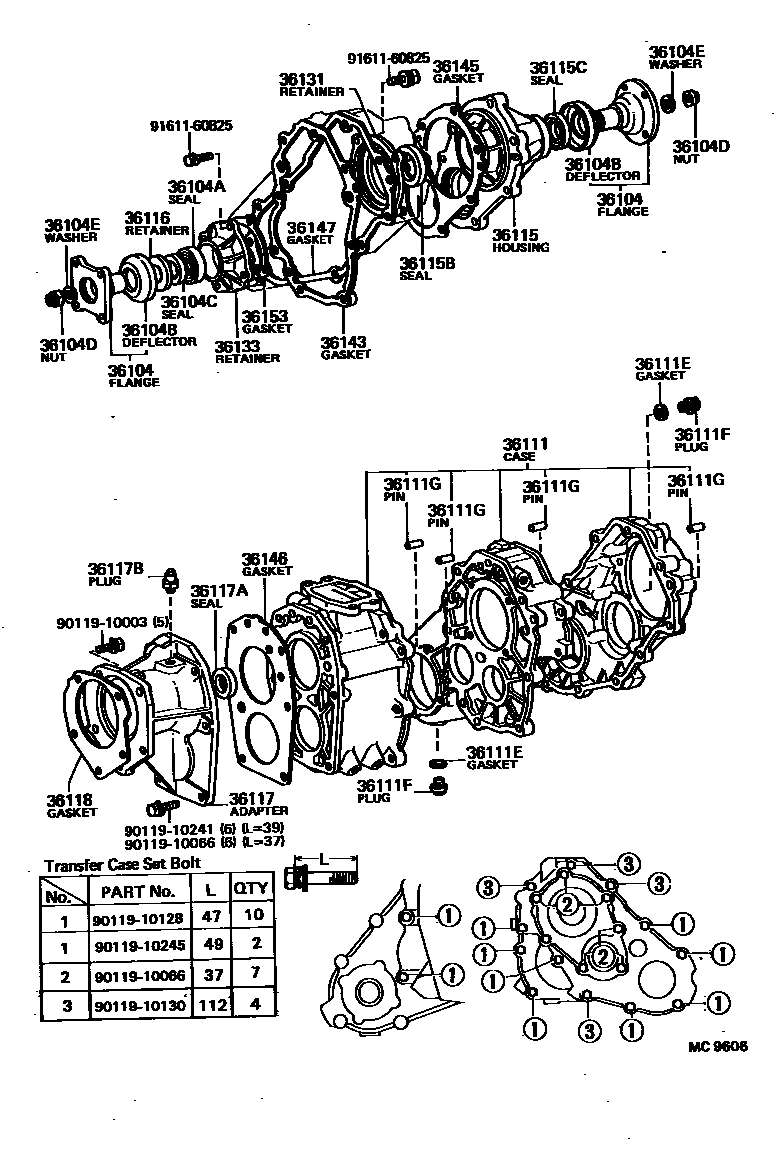

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1

36104FLANGE, COMPANION (FOR TRANSFER OUTPUT SHAFT)

main33309-35011iLN36,46,RN36,39197910-198310

RR DRIVE

main33309-35021iLN36,46,RN36,39197910-198310

FR DRIVE

36104ASEAL, TYPE T, OIL (FOR TRANSFER OUTPUT SHAFT)

main90311-38016iLN36,46,RN36,39197910-198310

36104BDEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT)

main33325-35020×2iLN36,46,RN36,39197910-198310

36104CSEAL, DUST (FOR TRANSFER OUTPUT SHAFT)

main90303-38010iLN36,46,RN36,39197910-198310

36104DNUT (FOR TRANSFER OUTPUT SHAFT)

main90179-20001×2iLN36,46,RN36,39197910-198310

36104EWASHER, PLATE (FOR TRANSFER OUTPUT SHAFT)

main90201-20005×2iLN36,46,RN36,39197910-198310

36111CASE, TRANSFER

main36103-35010iLN36,46,RN36,39197910-198111

main36103-35011iLN36,46,RN39198111-198302

main36103-35012iLN36,46,RN39198302-198310

36111EGASKET (FOR TRANSFER CASE)

main12157-10010×2iRN36197910-198108

main90430-18007×2iLN36,46,RN36,39198108-198310

36111FPLUG (FOR TRANSFER CASE)

main90341-18002iLN36,46,RN36,39197910-198305

FILLER PLUG

main90341-18006iLN36,46,RN39198305-198307

FILLER PLUG

main90341-18081iLN36,46,RN36,39197910-198310

DRAN PLUG

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10113×4iRN36197910-197911

main90250-10232×4iLN36,46,RN36,39197911-198310

36115HOUSING, TRANSFER EXTENSION

main36115-35010iLN36,46,RN36,39197910-198310

36115BSEAL, TYPE V OIL (FOR TRANSFER EXTENSION HOUSING)

main90312-48001iLN36,46,RN36,39197910-198310

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-38140iLN36,46,RN36,39197910-198310

36116RETAINER, TRANSFER EXTENSION HOUSING DUST SEAL

main33145-30010iLN36,46,RN36,39197910-198310

36117ADAPTER, TRANSFER

main36117-35010iRN36197910-198009

main36117-35011iRN36,39198009-198310

main36117-35020iLN36,46198110-198310

36117ASEAL, OIL(FOR TRANSFER ADAPTER)

main90310-32001iRN36197910-198002

main90311-32009iLN36,46,RN36,39198002-198310

36117BPLUG, BREATHER(FOR TRANSFER ADAPTER)

main90930-03031×2iRN36,39197910-198310

36118GASKET, TRANSFER ADAPTER

main33142-35030iLN36,46198110-198310

main33142-35040iRN36,39197910-198310

36131RETAINER, TRANSFER OUTPUT SHAFT FRONT BEARING

main36131-35010iLN36,46,RN36,39197910-198310

36133RETAINER, TRANSFER FRONT DRIVE GEAR BEARING

main36133-35010iLN36,46,RN36,39197910-198310

36143GASKET, TRANSFER CASE, FRONT

main36143-35010iLN36,46,RN36,39197910-198310

36145GASKET, TRANSFER EXTENSION HOUSING

main36145-35010iLN36,46,RN36,39197910-198310

36146GASKET, TRANSFER REDUCTION CASE

main36146-35010iLN36,46,RN36,39197910-198310

36147GASKET, TRANSFER CASE

main36141-35010iLN36,46,RN36,39197910-198310

36153GASKET, FRONT DRIVE GEAR BEARING RETAINER

main36153-35010iLN36,46,RN36,39197910-198310

9011910003

main90119-10003

9011910066

main90119-10066

9011910128

main90119-10128

9011910130

main90119-10130

9011910241

main90119-10241

9011910245

main90119-10245

9161160825

main91611-60825

32 parts on this diagram · 2 diagrams in section
