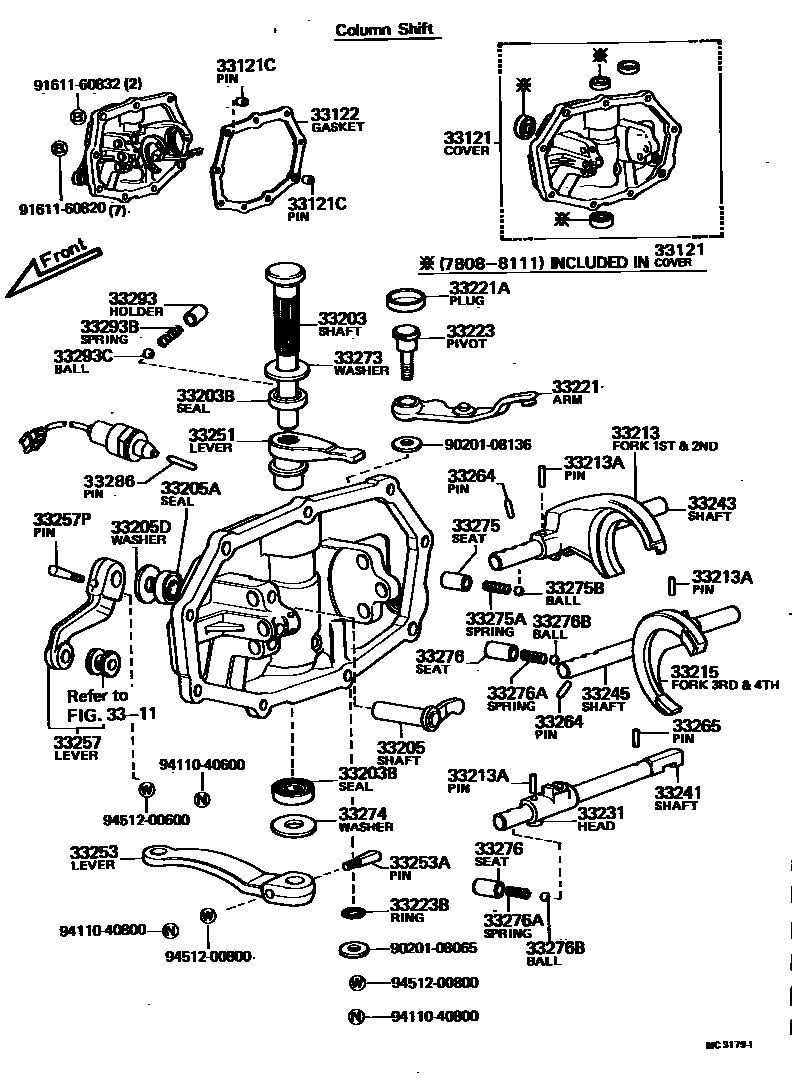

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

3311

33121COVER, MANUAL TRANSMISSION CASE

main33102-26010iRN35,45..4H198111-198307

main33102-35010iRN35,45..4F198111-198508

main33102-35030iRN39198111-198310

main33102-35040iRN35,45..4H198307-198508

main33121-26903iRN30,40..4H197808-197912

sub33102-26020

main33121-26904iRN33,35,4#..4H197912-198111

main33121-35060iLN30,40..5H197912-198401

sub33121-28010

sub90341-18049

sub90430-18008

main33121-35070iLN30,40..5F197912-198401

main33121-35080iLN36,46198110-198310

main33121-35901iRN33,43..4F197912-198110

main33121-35902iRN30,40..4F197808-197912

sub33102-35020

main33121-35903iRN36,39197910-198111

main33121-35904iRN35,45..4F198110-198111

33121CPIN(FOR TRANSMISSION CASE COVER)

main90250-10214×2iLN3#,4#197912-198401

main90253-11001×2iRN3#,4#197808-198508

33122GASKET, MANUAL TRANSMISSION CASE COVER

main33122-30020iRN3#,4#197808-198508

main33122-35020iLN3#,4#197912-198401

33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1

main33261-20010iRN30,33,35,4#..4F197808-198508

main33261-30020iRN30,33,35,4#..4H197808-198508

main33261-35030iRN36,39197910-198310

main33261-35050iLN30,40..5H197912-198107

main33261-35051iLN30,40..5H198107-198401

main33261-35060iLN30,40..5F197912-198101

main33261-35061iLN30,40..5F198101-198401

main33261-35070iLN36,46198110-198310

33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)

main90311-13050iRN30,33,35,4#..4H197808-198508

LWR

main90311-18002iRN3#,4#..4F197808-198508

main90312-15003iRN30,33,35,4#..4H197808-198508

UPR

main90312-17001iLN3#,4#197912-198401

OD=24,T=5.0

main90312-20016iLN30,40..5H197912-198211

OD=26,T=6.0

main90313-20001iLN30,40..5H198211-198401

OD=26,T=6.0

33205SHAFT SUB-ASSY, SELECT LEVER

main33262-26010iRN30,33,35,4#..4H197808-198508

main33262-28020iLN41,RN35,45..5H198508-198809

main33262-35030iLN30,40..5H197912-198006

main33262-35031iLN30,40..5H198006-198401

33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)

main90313-13001iLN30,40,41,RN30,33,35,4#..4H,5H197808-198809

33205DWASHER(FOR OUTER LEVER OIL SETTING)

main94612-11300iLN30,40,41,RN30,33,35,4#..4H,5H197808-198809

33213FORK, 1ST & 2ND SHIFT

main33212-26030iLN4#,RN35,45..5H198501-198809

main33212-28010iRN3#,4#197808-198508

main33212-28021iLN40..5H198401-198501

sub90105-06143

main33212-35010iLN3#,4#197912-198401

main33212-35022iLN40..5F198401-198501

sub90105-06143

main33212-35023iLN4#..5F198501-198809

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05001×4iRN3#,4#197808-198809

main90254-05016iLN3#,4#198109-198401

L=25.5

33215FORK, 3RD & 4TH SHIFT

main33213-26020iRN3#,4#197808-198508

main33213-28011iLN41,RN35,45..5H198508-198809

sub33220-26010

sub33364-26020

main33213-35020iLN3#,4#197912-198401

main33213-35031iLN40..5F198401-198501

sub33213-35033

sub33364-26020

sub90105-06143

main33213-35032iLN4#..5F198501-198809

sub33213-35033

sub33364-26020

33221ARM, REVERSE SHIFT

main33201-35020iLN3#,4#197912-198401

main33221-28010iLN40198401-198508

main33221-30010iRN3#,4#197808-198508

33221APLUG, TIGHT(FOR REVERSE SHIFT ARM)

main96411-12500iRN3#,4#197808-198809

sub96411-42500

33223PIVOT, SHIFT ARM

main33223-30011iRN3#,4#197808-198508

main33223-35020iLN3#,4#197912-198401

33223BRING, O(FOR SHIFT ARM PIVOT)

main90301-08001iRN3#,4#197808-198508

main96710-01010iLN3#,4#197912-198111

main96711-19010iLN3#,4#198111-198401

33231HEAD, REVERSE SHIFT

main33202-26011iLN3#,4#197912-198401

main33231-26010iRN3#,4#197808-198508

main33231-28010iLN40..5H198401-198508

sub33231-28020

sub33220-26010

sub33232-28020

sub33364-26020

main33231-35040iLN4#..5F198401-198809

sub33231-35070

sub33214-35040

sub33244-35050

sub33245-35080

sub33395-26020

sub90105-06143

33241SHAFT, REVERSE SHIFT FORK

main33241-26010iRN3#,4#197808-198508

main33244-28010iLN40..5H198401-198508

sub33244-28011

main33244-35020iLN4#..5F198401-198805

main33244-35021iLN41..5F198805-198809

sub33244-35050

sub33214-35040

sub33231-35070

sub33245-35080

sub33395-26020

sub90105-06143

main33245-35020iLN3#,4#197912-198508

33243SHAFT, 1ST & 2ND SHIFT FORK

main33242-26010iRN3#,4#197808-198508

main33242-26020iLN4#,RN35,45..5H198501-198809

main33242-28010iLN40..5H198401-198501

sub90105-06143

main33242-35010iLN3#,4#197912-198401

main33242-35020iLN40..5F198401-198501

main33242-35021iLN4#..5F198501-198805

main33242-35022iLN41..5F198805-198809

33245SHAFT, 3RD & 4TH SHIFT FORK

main33243-26010iRN33,35,4#197912-198410

main33243-26020iRN30,40197808-197912

main33243-28010iLN3#,4#198102-198401

main33243-35030iLN30,40197912-198102

main33243-35040iLN40..5F198401-198501

main33243-35041iLN4#..5F198501-198805

main33243-35042iLN41..5F198805-198809

main33243-35050iLN40..5H198401-198508

sub33243-35051

main33243-35060iRN35,45198410-198508

33251LEVER, SHIFT & SELECT

main33251-22010iRN30,33,4#..4F197808-198110

main33251-26010iRN30,33,35,4#..4H197808-198508

main33251-28011iLN40..5H198401-198508

sub33251-28012

main33251-30040iRN36,39197910-198310

main33251-35040iLN30,40..5H197912-198401

sub33251-26030

main33251-35050iLN3#,4#..5F197912-198401

main33251-35060iLN4#..5F198401-198809

sub33251-35061

sub90109-08305

33253LEVER, SHIFT OUTER, NO.1

main33253-20030iRN30,33,35,4#..4H197808-198508

main33253-35050iLN30,40..5H197912-198401

main33253-35070iLN40..5H198401-198508

33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)

main33281-16020iLN41,RN35,45..5H198508-198809

main33281-30010iRN30,33,35,4#..4H197808-198411

main33282-57010iLN30,40..5H197912-198401

33257LEVER, SELECT OUTER

main33257-35020iRN35,45..4H198110-198508

main33257-35050iLN30,40..5H197912-198401

main33257-35070iLN40..5H198401-198508

main33260-35010iRN30,33,4#..4H197808-198110

33257PPIN, SELECT OUTER LEVER LOCK

main33282-35010iRN30,33,35,4#..4H197808-198508

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main33264-30010×2iRN3#,4#197808-198508

main90360-10003iLN41,RN35,45198508-198809

main90361-10001iLN3#,4#197912-198401

L=32.9,OD=9.53

main90361-10002iLN41,RN35,45198508-198809

main90361-10003iLN40198401-198508

main90361-10008×3iLN3#,4#197912-198401

L=14.9,OD=9.53

33265PIN, SHIFT INTERLOCK, NO.2

main33265-30010iRN3#,4#197808-198508

main90250-05010×2iLN3#,4#197912-198401

main90250-05020×2iLN41,RN35,45198508-198809

33273WASHER, SHIFT LEVER SHAFT HOUSING, NO.1

main90201-15137iRN30,33,35,4#..4H197808-198508

33274WASHER, SHIFT LEVER SHAFT HOUSING, NO.2

main90201-08019iLN30,40..5H197912-198401

main94612-11300iRN30,33,35,4#..4H197808-198508

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main33275-10010×2iRN3#,4#197808-198508

main90341-12003iLN3#,4#197912-198401

main90341-12008×5iLN40198401-198508

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-10061iLN4#..5F198401-198809

main90501-13006×4iLN3#,4#198102-198401

main90501-14047×4iLN30,40197912-198102

main90501-14061iLN41,RN35,45198508-198809

sub90501-14123

main90501-14062iLN40198401-198508

sub90501-14132

main90501-14090iRN35,45198410-198508

main90501-14638iRN3#,4#197808-198410

33275BBALL, SHAFT DETENT

main90360-10003iRN3#,4#197808-198508

33276SEAT, SHIFT DETENT BALL SPRING, NO.2

main33275-10010×2iRN3#,4#197808-198508

main90341-12003iLN3#,4#197912-198401

33276ASPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)

main90501-13006iLN3#,4#198102-198401

main90501-14047iLN30,40197912-198102

main90501-14090×2iRN35,45198410-198508

main90501-14638×2iRN3#,4#197808-198410

33276BBALL, SHIFT DETENT, NO.2

main90360-10003iLN3#,4#197912-198401

33286PIN, SWITCH PRESSURE

main33286-26010iRN30,40..4H197808-197912

33293HOLDER, REVERSE RESTRICT BALL

main33276-10010iRN30,33,35,4#..4H197808-198508

main33293-30010iRN3#,4#..4F197808-198508

33293BSPRING, COMPRESSION (FOR REVERSE RESTRICT BALL)

main90501-14007iRN30,33,35,4#..4H197808-198508

main90501-16041iRN3#,4#..4F197808-198508

33293CBALL (FOR REVERSE RESTRICT)

main90360-10003iRN3#,4#197808-198508

9020108065

main90201-08065

9020108136

main90201-08136

9161160820

main91611-60820

9161160832

main91611-60832

9411040600

main94110-40600

9411040800

main94110-40800

9451200600

main94512-00600

9451200800

main94512-00800

47 parts on this diagram · 7 diagrams in section
