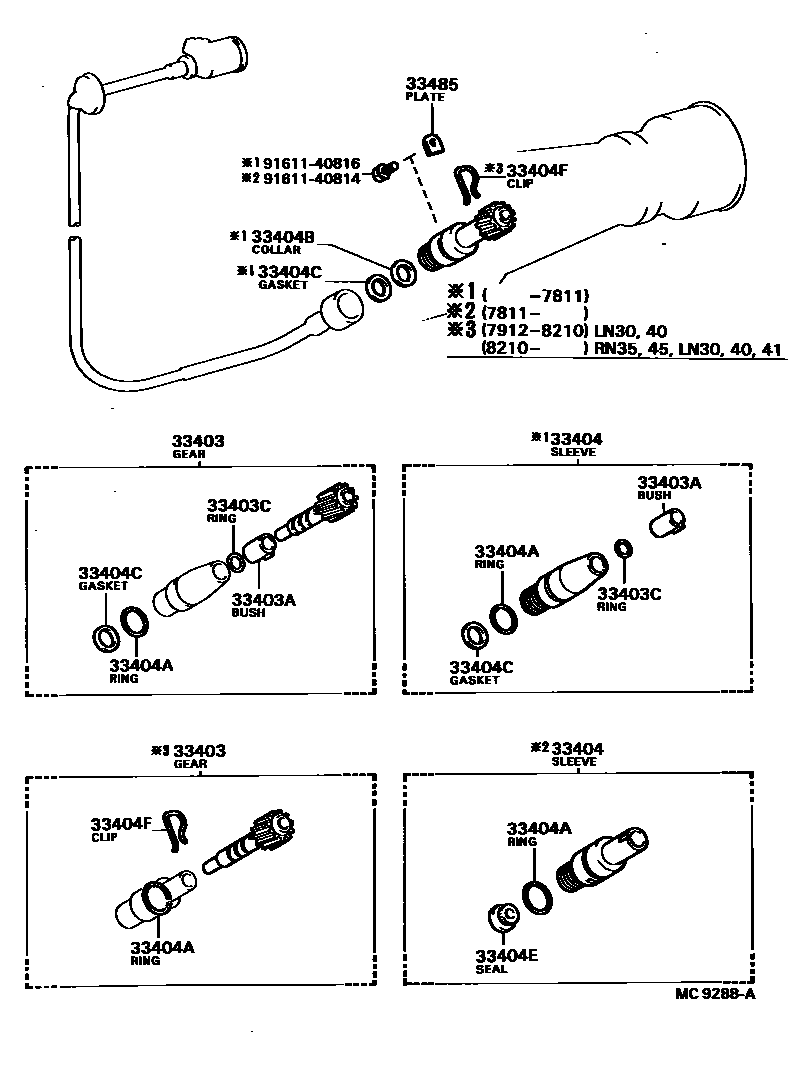

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-29016iRN35,45198110-198210

N=19,W/185R-14 TIRE

main33403-29065iLN36,46,RN36,39197910-198310

N=20

main33403-39016iLN36,46,RN39198210-198310

N=18

main33482-29045iRN35,45198210-198809

main33482-39025iLN30,40,41198305-198809

main33482-39045iLN30,40198110-198305

main33482-39085iRN35,45198210-198809

33403ABUSH (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT SLEEVE)

main90386-09078iRN30,40197808-197811

33403CRING, O (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT)

main90301-09017iRN30,40197808-197811

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-30040iLN36,46,RN39198210-198310

main33404-35010iLN30,40197912-198210

main33404-39016iRN30,40197808-197811

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iLN3#,4#,RN3#,4#197808-198809

33404BCOLLAR, SPEEDOMETER FLEXIBLE TUBE SHAFT GASKET (MTM)

main90201-07069iRN30,40197808-197811

33404CGASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (MTM)

main90303-06017iRN30,40197808-197811

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iLN3#,4#,RN3#,4#197811-198809

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iLN30,40197912-198210

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30010iRN30,40197808-197811

main33485-30020iLN3#,4#,RN3#,4#197811-198809

9161140814

main91611-40814

9161140816

main91611-40816

12 parts on this diagram · 1 diagram in section
