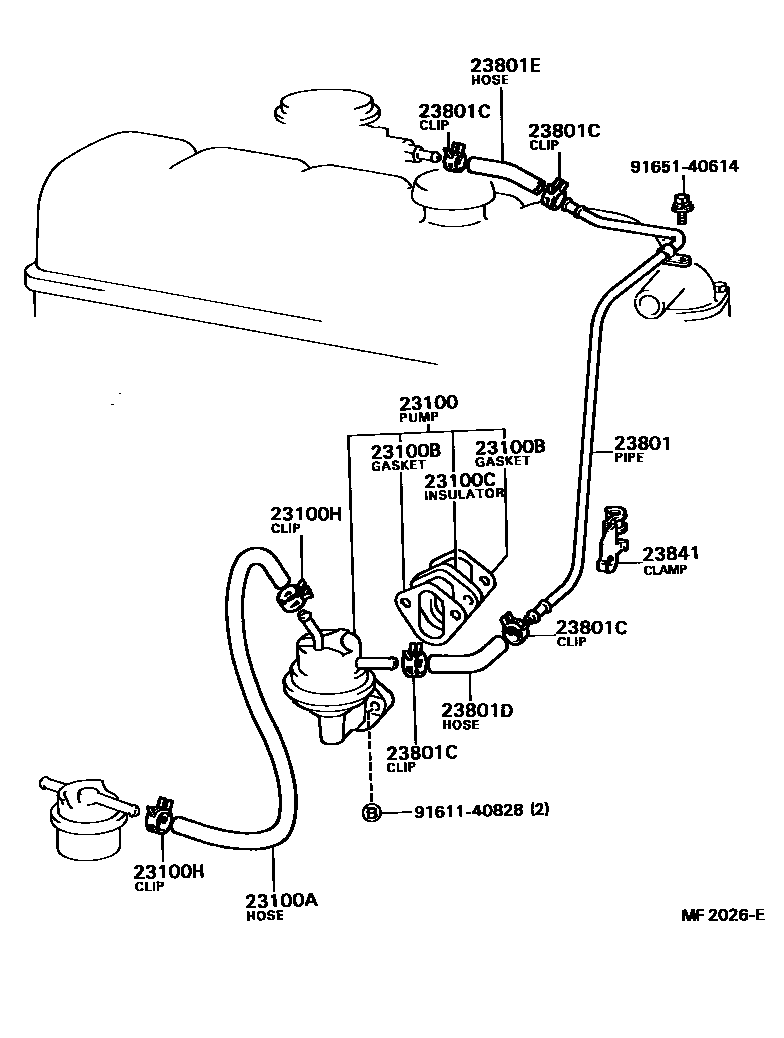

FUEL PUMP & PIPE

0001 1 0002 1

23100PUMP ASSY, FUEL

main23100-39255i12RJ..RN30,33,4#197808-198110

main23100-39256i12RJ..RN35,45198110-198809

main23100-39295i18RJ..RN36197910-198110

main23100-39296i18RJ..RN39198110-198310

23100AHOSE, FUEL

main95332-06028i12RJ..RN30,40197808-197904

L=280

main95332-06030i18RJ..RN36,39197910-198310

*H,L=260

23100BGASKET, FUEL PUMP

main90923-05005×2i12RJ,18RJ..RN3#,4#197808-198809

23100CINSULATOR, FUEL PUMP

main90923-06001i12RJ,18RJ..RN3#,4#197808-198809

23100HCLIP(FOR FUEL HOSE)

main96132-30600×2i12RJ,18RJ..RN3#,4#197808-198809

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main23811-31061i12RJ..RN30,40197808-197912

main23811-31070i12RJ..RN33,35,4#197912-198809

main23811-34041i18RJ..RN36,39197910-198310

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main90467-12001×4i12RJ..RN30,33,35,4#197808-198809

main96132-30600×4i18RJ..RN36,39197910-198310

23801DHOSE, FUEL PIPE, NO.1

main95332-06010i12RJ..RN30,33,35,4#197808-198809

main95332-06020i18RJ..RN36,39197910-198310

23801EHOSE, FUEL PIPE, NO.2

main95332-06010i12RJ..RN30,33,35,4#197808-198809

L=100

23841CLAMP, FUEL PIPE(HOSE), NO.1

main23841-31020i12RJ..RN30,33,35,4#197808-198809

main23841-34030i18RJ..RN36,39197910-198310

9161140828

main91611-40828

9165140614

main91651-40614

12 parts on this diagram · 2 diagrams in section
