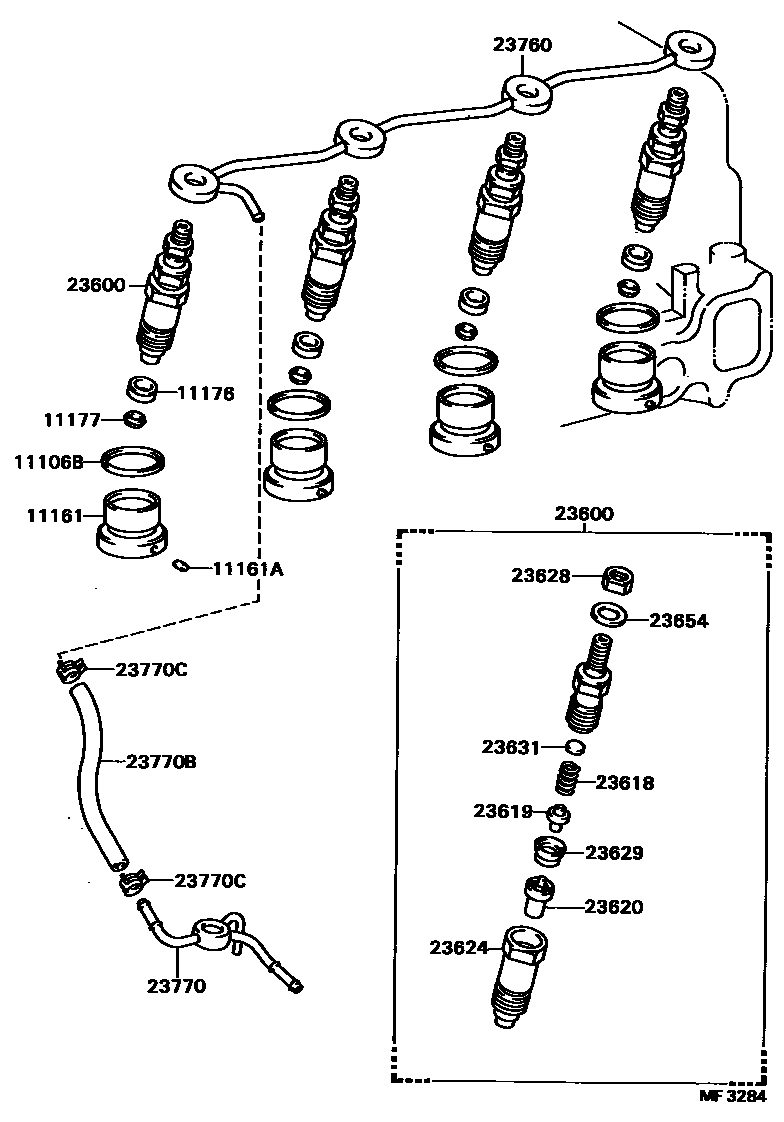

INJECTION NOZZLE

0001 1 0002 1

11106BSHIM(FOR COMBUSTION CHAMBER)

main11165-54010iL..LN3#,4#197912-198204

T=0.05

main11165-54011iL,2L..LN3#,4#198204-198809

main11166-54010iL..LN3#,4#197912-198204

T=0.10

main11166-54011iL,2L..LN3#,4#198204-198809

main11167-54010iL..LN3#,4#197912-198204

T=0.15

main11167-54011iL,2L..LN3#,4#198204-198809

main11168-54010iL..LN3#,4#197912-198204

T=0.20

main11168-54011iL,2L..LN3#,4#198204-198809

11161CHAMBER, COMBUSTION

main11161-54031iL..LN3#,4#198008-198204

sub11161-54060

main11161-54032iL..LN3#,4#198204-198508

main11161-54040iL..LN30,40197912-198008

sub11161-54031

main11161-54070i2L..LN41198508-198809

11161APIN, STRAIGHT(FOR COMBUSTION CHAMBER)

main90250-02046iL,2L..LN3#,4#197912-198809

11176SEAT, INJECTION NOZZLE

main11176-56010iL,2L..LN3#,4#197912-198809

11177GASKET, INJECTION NOZZLE SEAT

main11177-47010iL..LN3#,4#197912-198307

main11177-54010iL,2L..LN3#,4#198307-198608

sub11177-54011

main11177-54011i2L..LN41198608-198809

23600HOLDER & NOZZLE SET, NOZZLE

main23600-54020iL..LN3#,4#197912-198508

main23600-59035i2L..LN41198508-198809

23618SPRING, NOZZLE HOLDER PRESSURE

main23618-54020iL,2L..LN3#,4#197912-198801

sub23618-54050

main23618-54050i2L..LN41198801-198809

23619PIN, NOZZLE HOLDER PRESSURE

main23619-46010iL,2L..LN3#,4#197912-198809

23620NOZZLE ASSY

main23620-54020iL..LN3#,4#197912-198508

main23620-59015i2L..LN41198508-198809

23624NUT, NOZZLE RETAINING

main23624-54020iL..LN3#,4#197912-198508

sub23624-58080

main23624-54040i2L..LN41198508-198809

23628NUT(FOR RING PACKING SETTING)

main23628-46010iL,2L..LN3#,4#197912-198809

23629PIECE, DISTANCE(FOR NOZZLE)

main23629-46010iL,2L..LN3#,4#197912-198809

23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)

main23631-46010iL,2L..LN3#,4#197912-198809

main23632-46010iL,2L..LN3#,4#197912-198809

main23633-46010iL,2L..LN3#,4#197912-198809

main23634-46010iL,2L..LN3#,4#197912-198809

main23635-46010iL,2L..LN3#,4#197912-198809

main23636-46010iL,2L..LN3#,4#197912-198809

main23637-46010iL,2L..LN3#,4#197912-198809

main23638-46010iL,2L..LN3#,4#197912-198809

main23639-46010iL,2L..LN3#,4#197912-198809

main23641-46010iL,2L..LN3#,4#197912-198809

main23642-46010iL,2L..LN3#,4#197912-198809

main23643-46010iL,2L..LN3#,4#197912-198809

main23644-46010iL,2L..LN3#,4#197912-198809

main23645-46010iL,2L..LN3#,4#197912-198809

main23646-46010iL,2L..LN3#,4#197912-198809

main23647-46010iL,2L..LN3#,4#197912-198809

main23648-46010iL,2L..LN3#,4#197912-198809

main23649-46010iL,2L..LN3#,4#197912-198809

main23651-46010iL,2L..LN3#,4#197912-198809

main23652-46010iL,2L..LN3#,4#197912-198809

23654WASHER(FOR RING PACKING)

main23654-46010iL,2L..LN3#,4#197912-198809

23760PIPE ASSY, NOZZLE LEAKAGE

main23760-54010iL..LN30,40197912-198102

sub23760-54011

main23760-54011iL,2L..LN3#,4#198102-198809

23770PIPE ASSY, NOZZLE LEAKAGE, NO.2

main23764-54010iL..LN30,40197912-198101

main23764-54020iL..LN3#,4#198101-198307

main23764-54021iL,2L..LN3#,4#198307-198707

sub23764-54022

main23764-54022i2L..LN41198707-198809

23770BHOSE, FUEL

main95332-04020iL..LN3#,4#197912-198809

sub95333-04020

main95332-04020iL,2L..LN3#,4#198307-198808

sub95333-04020

23770CCLAMP OR CLIP(FOR FUEL HOSE SET)

main96132-30400iL,2L..LN3#,4#197912-198808

sub96132-51000

main96132-51000i2L..LN41198808-198809

18 parts on this diagram · 2 diagrams in section
