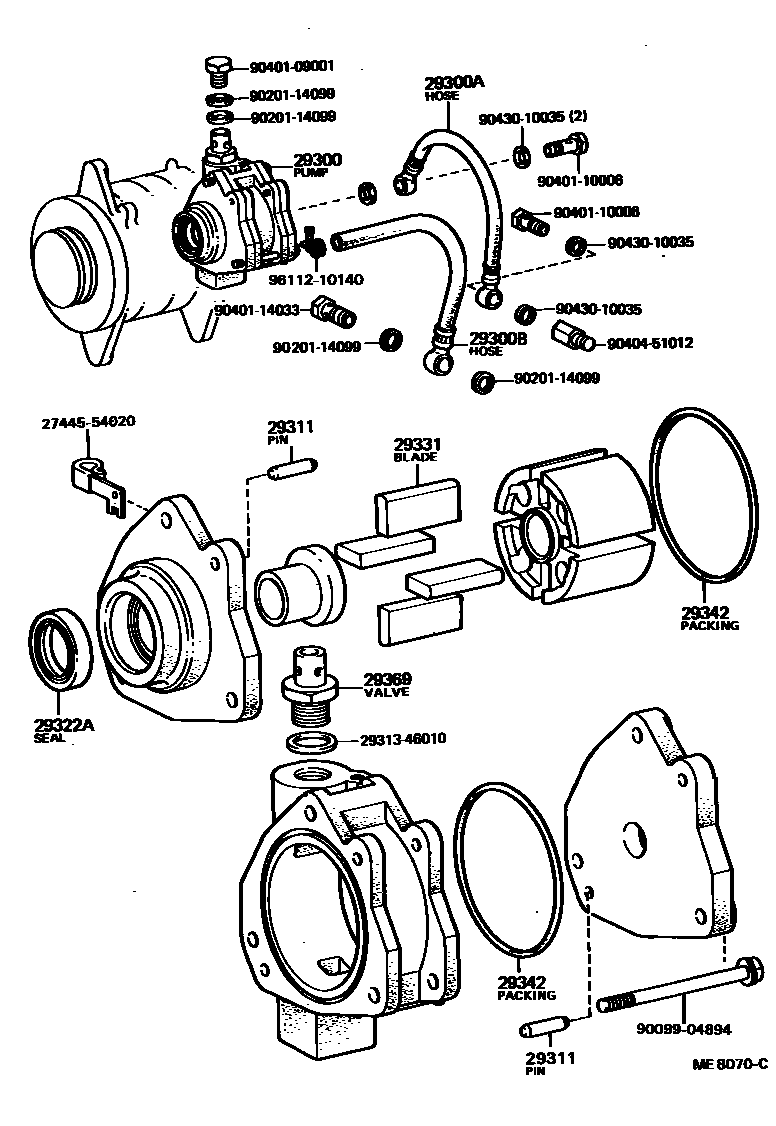

VACUUM PUMP

0001 1 0002 1

29300PUMP ASSY, VACUUM

main29300-54021iL..LN3#,4#197912-198508

main29300-54050i2L..LN41198508-198809

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02056iL..LN3#,4#197912-198508

main90923-02077i2L..LN41198508-198809

29300BHOSE, VACUUM PUMP OIL OUTLET

main90923-02052iL..LN3#,4#197912-198508

main90923-02089i2L..LN41198508-198809

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010i2L..LN41198508-198809

main90099-08082×4iL..LN3#,4#197912-198508

29322ASEAL, VACUUM PUMP OIL

main90099-15017iL..LN3#,4#197912-198508

29331BLADE, VACUUM PUMP, A

main29331-56010×4iL..LN3#,4#197912-198508

main29331-56070×4i2L..LN41198508-198809

29342PACKING, VACUUM PUMP

main96740-02063i2L..LN41198508-198809

29369VALVE SUB-ASSY, CHECK

main29369-54010iL..LN3#,4#197912-198304

main29369-56070i2L..LN41198508-198809

main29369-68030iL..LN3#,4#198304-198508

2744554020

main27445-54020

2931346010

main29313-46010

9009904894

main90099-04894

9020114099

main90201-14099

9040109001

main90401-09001

9040110006

main90401-10006

9040114033

main90401-14033

9040451012

main90404-51012

9043010035

main90430-10035

9611210140

main96112-10140

18 parts on this diagram · 2 diagrams in section
