STARTER

0001 112V 0.8KW 0002 112V 0.8KW 0004 112V 1.0KW 0005 112V 1.0KW 0006 112V 2.5KW,24V 4.5KW 0007 112V 2.0KW

28011CLUTCH SUB-ASSY, STARTER

main28011-15010i18RJ..RN36,39197910-198310

12V 0.8KW

main28011-26042i18RJ..RN39198110-198310

12V 1.0KW

main28011-41011i12RJ..RN30,33,4#197808-198002

12V 0.8KW

main28011-41020i18RJ..RN36197910-198110

12V 1.0KW

main28011-54010iL..LN30,40197912-198110

12V 2.5KW,24V 4.5KW

main28011-54070iL,2L..LN3#,4#198110-198809

12V 2.0KW

28100STARTER ASSY

main28100-31020i12RJ..RN33,35,4#198002-198302

main28100-31021i12RJ..RN35,45198302-198809

main28100-34070i18RJ..RN36197910-198110

sub28100-40061

main28100-34080i18RJ..RN39198110-198310

main28100-37010i18RJ..RN36,39197910-198302

main28100-37011i18RJ..RN39198302-198310

main28100-40015i12RJ..RN30,33,4#197808-198002

main28100-54023iL..LN30,40197912-198101

main28100-54032iL..LN30,40197912-198101

main28100-54042iL..LN30,40198101-198110

main28100-54061iL..LN30,40198101-198110

sub28100-54220

main28100-54090iL,2L..LN3#,4#198110-198809

main28100-54100iL,2L..LN3#,4#198110-198809

28110HOUSING ASSY, STARTER DRIVE

main28110-31020i12RJ..RN33,35,4#198002-198809

12V 0.8KW

main28110-34080i18RJ..RN39198110-198310

12V 1.0KW

main28110-37010i18RJ..RN36,39197910-198310

12V 0.8KW

main28110-40030i12RJ..RN30,33,4#197808-198002

12V 0.8KW

main28110-40061i18RJ..RN36197910-198110

12V 1.0KW

main28115-54010iL..LN30,40197912-198110

12V 2.5KW,24V 4.5KW

sub90119-12018

main28115-54011iL,2L..LN3#,4#198110-198809

12V 2.5KW

main28115-54070iL,2L..LN3#,4#198110-198809

12V 2.0KW

28111BUSH(FOR STARTER HOUSING)

main28111-51011i12RJ,18RJ..RN3#,4#197808-198110

12V 0.8KW,1.0KW

28113LEVER, STARTER PINION DRIVE

main28113-15011i18RJ..RN36,39197910-198310

12V 0.8KW

main28113-41011i12RJ..RN30,33,4#197808-198002

12V 0.8KW

28114PIN, STARTER DRIVE LEVER SET

main28114-41011i12RJ,18RJ..RN3#,4#197808-198002

12V 0.8KW,1.0KW

28117RUBBER(FOR STARTER YOKE)

main28117-41013i12RJ..RN30,33,4#197808-198002

12V 0.8KW

main28117-41020i18RJ..RN36197910-198110

12V 1.0KW

28118PLATE(FOR STARTER YOKE)

main28118-41013i12RJ..RN30,33,4#197808-198002

12V 0.8KW

main28118-77090iL..LN30,40197912-198110

12V 2.5KW,24V,4.5KW

28120YOKE ASSY, STARTER

main28120-15010i18RJ..RN36,39197910-198310

12V 0.8KW

main28120-26070i18RJ..RN39198110-198203

12V 1.0KW

main28120-26071i18RJ..RN39198203-198310

12V 1.0KW

main28120-34070i18RJ..RN36197910-198110

12V 1.0KW

main28120-36040i12RJ..RN30,33,4#197808-198002

12V 0.8KW

main28120-47040iL,2L..LN3#,4#197912-198809

12V 2.5KW

main28120-54070iL,2L..LN3#,4#198110-198809

12V 2.0KW

main28120-77090iL..LN30,40197912-198110

24V 4.5KW

28121COIL, STARTER FIELD

main28121-34070i18RJ..RN36197910-198004

12V 1.0KW

main28121-36040i12RJ..RN30,33,4#197808-198002

12V 0.8KW

main28121-42020i18RJ..RN36198004-198110

12V 1.0KW

28123CORE, STARTER POLE

main28123-40012×4i12RJ..RN30,33,4#197808-198002

12V 0.8KW

main28123-41020×4i18RJ..RN36197910-198110

12V 1.0KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-13020i12RJ..RN33,35,4#198002-198809

12V 0.8KW

main28130-21011i12RJ..RN30,33,4#197808-198002

12V 0.8KW

main28130-34060i18RJ..RN39198110-198310

12V 1.0KW

main28130-37010i18RJ..RN36,39197910-198310

12V 0.8KW

main28130-41020i18RJ..RN36197910-198110

12V 1.0KW

main28130-54060iL,2L..LN3#,4#198110-198809

12V 2.5KW

sub28130-54430

sub28199-46080

sub90099-04207

28131BUSH, COMMUTATOR END FRAME

main28131-20010i18RJ..RN36197910-198110

12V 1.0KW,STD

main90099-10039i18RJ..RN36197910-198110

12V 1.0KW,U/S 0.3

main90099-10040i12RJ..RN30,33,4#197808-198002

12V 0.8KW U/S 0.5

main90099-10134i18RJ..RN36,39197910-198310

12V 0.8KW

28132COVER, STARTER BEARING(FOR DRIVE HOUSING)

main28166-41011i12RJ,18RJ..RN3#,4#197808-198110

12V 0.8KW,1.0KW

28133COVER, BEARING(FOR END FRAME)

main28132-15010i12RJ..RN33,35,4#198002-198809

12V 0.8KW

sub28132-15011

main28132-40010i18RJ..RN36197910-198110

12V 1.0KW

main28132-41011i12RJ..RN30,33,4#197808-198002

12V 0.8KW

28136PLATE, STARTER LOCK

main28136-15010i12RJ..RN33,35,4#198002-198809

12V 0.8KW

main28136-40010i18RJ..RN36197910-198110

12V 1.0KW

main28136-41011i12RJ..RN30,33,4#197808-198002

12V 0.8KW

28138RUBBER(FOR STARTER BEARING COVER)

main28138-15010i12RJ..RN33,35,4#198002-198809

12V 0.8KW

main28138-40010i18RJ..RN36197910-198110

12V 1.0KW

sub28138-26030

main28138-41011i12RJ..RN30,33,4#197808-198002

12V 0.8KW

28140HOLDER ASSY, STARTER BRUSH

main28140-15010i18RJ..RN36,39197910-198310

12V 0.8KW

main28140-25020i18RJ..RN36197910-198110

12V 1.0KW

main28140-26070i18RJ..RN39198110-198310

12V 1.0KW

main28140-41012i12RJ..RN30,33,4#197808-198002

12V 0.8KW

sub28140-41013

main28140-54070iL,2L..LN3#,4#198110-198809

12V 2.0KW

main28140-77090iL..LN30,40197912-198110

12V 2.5KW,24V,4.5KW

28142BRUSH, STARTER

main28142-21010×4i12RJ..RN30,33,4#197808-198110

12V 0.8KW

main28142-25020×2i18RJ..RN36197910-198110

12V 1.0KW,YOKE

main28142-25021×2i18RJ..RN36197910-198110

12V 1.0KW,HOLDER

28143SPRING, STARTER BRUSH

main28143-40010×4i12RJ,18RJ..RN3#,4#197808-198110

12V 0.8KW,1.0KW

sub28143-40040

main90099-17112×4i18RJ..RN39198110-198310

12V 1.0KW

main90099-17115×4iL,2L..LN3#,4#198110-198809

12V 2.0KW

28150SWITCH ASSY, MAGNET STARTER

main28150-15012i18RJ..RN36,39197910-198302

12V 0.8KW

main28150-33020i12RJ..RN30,40197808-197906

12V 0.8KW

main28150-33021i18RJ..RN36197910-198004

12V 1.0KW

main28150-34070i18RJ..RN36198004-198110

12V 1.0KW

main28150-34080i18RJ..RN39198110-198310

12V 1.0KW

main28150-37010i12RJ..RN35,45198302-198809

12V 0.8KW

sub28150-37011

main28150-54011iL..LN30,40198101-198110

12V 2.5KW

sub28150-54190

main28150-54022iL..LN30,40197912-198101

24V 4.5KW

main28150-54031iL..LN30,40197912-198101

12V 2.5KW

main28150-54041iL..LN30,40198101-198110

24V 4.5KW

main28150-54051iL,2L..LN3#,4#198110-198809

12V 2.5KW

sub28150-54221

main28150-54070iL,2L..LN3#,4#198110-198809

12V 2.0KW

sub28150-54110

28160ARMATURE ASSY, STARTER

main28160-15010i18RJ..RN36,39197910-198310

12V 0.8KW

main28160-26070i18RJ..RN39198110-198310

12V 1.0KW

sub28160-26071

main28160-40014i12RJ..RN30,33,4#197808-198002

12V 0.8KW

main28160-41020i18RJ..RN36197910-198110

12V 1.0KW

main28160-47040iL,2L..LN3#,4#197912-198809

12V 2.5KW

sub28160-54140

main28160-54070iL,2L..LN3#,4#198110-198809

12V 2.0KW

sub28160-54071

main28160-77090iL..LN30,40197912-198110

24V 4.5KW

28162SPRING, STARTER BRAKE

main28162-15010i18RJ..RN36,39197910-198310

12V 0.8KW,1.0KW

main28162-41011i12RJ..RN30,33,4#197808-198002

12V 0.8KW

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-40011i12RJ,18RJ..RN3#,4#197808-198809

12V 0.8KW,1.0KW

28163ARING, SNAP(FOR STARTER PINION STOP NUT)

main90099-07047i12RJ,18RJ..RN3#,4#197808-198809

12V 0.8KW,1.0KW

9009900102

main90099-00102

9009900111

main90099-00111

9009900902

main90099-00902

9009901090

main90099-01090

9009902169

main90099-02169

9009904884

main90099-04884

9009905122

main90099-05122

9009905129

main90099-05129

9011610019

main90116-10019

9161241030

main91612-41030

9411040800

main94110-40800

9411041000

main94110-41000

9451100500

main94511-00500

9451100600

main94511-00600

9451100800

main94511-00800

9454101000

main94541-01000

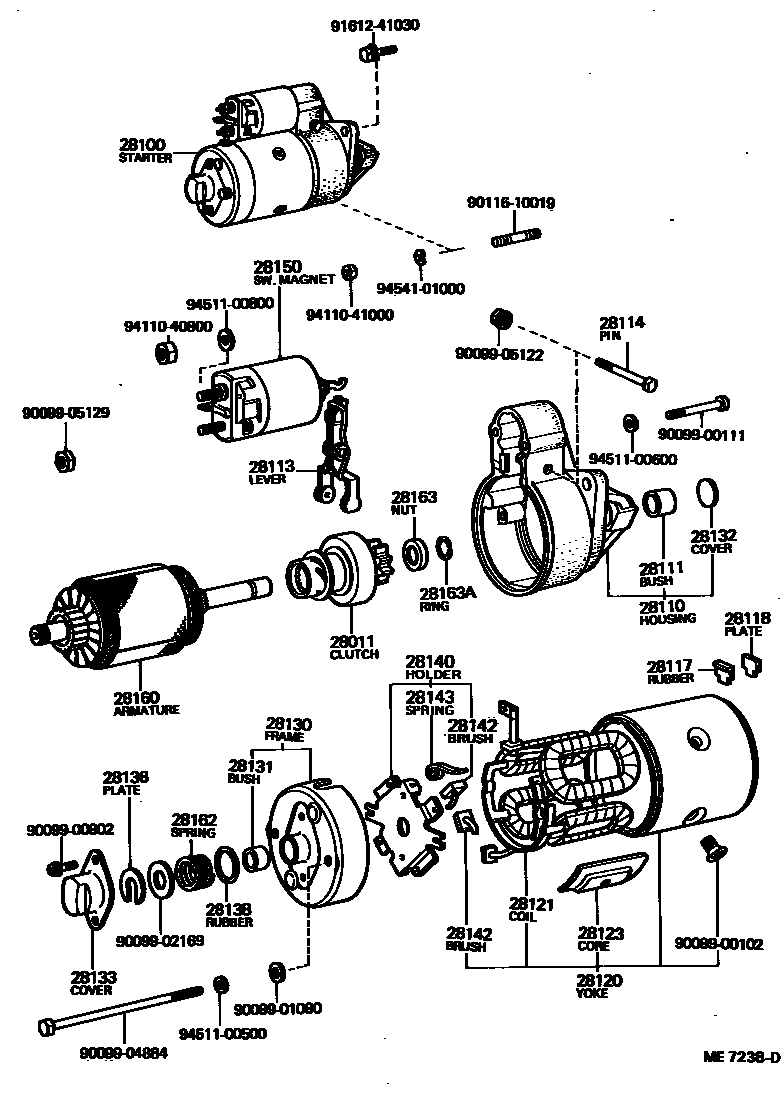

41 parts on this diagram · 6 diagrams in section
