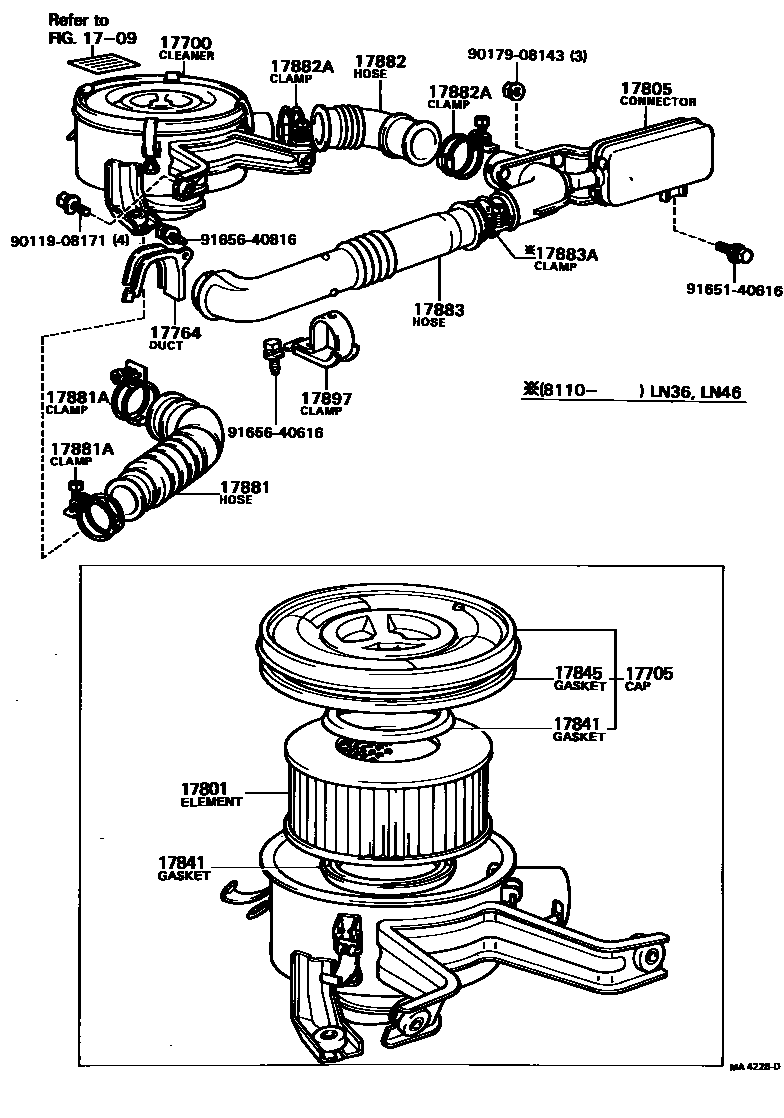

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1709CAUTION PLATE & NAME PLATE (ENGINE)

→ Go to FIG 17-09

17700CLEANER ASSY, AIR

main17700-31360i12RJ..RN30,40197808-197909

main17700-31361i12RJ..RN30,40197909-197912

main17700-31380i12RJ..RN30,40197808-197909

W/HOT AIR INTAKE

main17700-31381i12RJ..RN30,40197909-197912

W/HOT AIR INTAKE

main17700-31451i12RJ..RN33,43197912-198110

main17700-31510i12RJ..RN35,45198110-198307

main17700-31511i12RJ..RN35,45198307-198809

main17700-34610i18RJ..RN36197910-198012

main17700-34620i18RJ..RN36197910-198110

W/HOT AIR INTAKE

main17700-34700i18RJ..RN39198110-198310

W/HOT AIR INTAKE

main17700-54070iL..LN30,40197912-198101

main17700-54071iL,2L..LN3#,4#198101-198809

17705CAP SUB-ASSY, AIR CLEANER

main17705-31032i12RJ..RN30,33,4#197808-198110

WHITE

main17705-31033i12RJ..RN35,45198110-198809

BLACK

main17705-34230i18RJ..RN36197910-198110

main17705-34231i18RJ..RN39198110-198310

main17705-54031iL..LN30,40197912-198101

main17705-54032iL,2L..LN3#,4#198101-198809

17764DUCT, AIR CLEANER

main53207-89102iL,2L..LN30,4#197912-198809

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-25010i12RJ..RN35,45198110-198809

main17801-31080i12RJ..RN33,43198103-198110

main17801-34060i18RJ..RN36,39197910-198310

main17801-54030iL,2L..LN3#,4#197912-198809

17805CONNECTOR SUB-ASSY, INTAKE AIR

main17805-89101iL..LN30,40197912-198101

main17805-89103iL,2L..LN30,4#198101-198809

17841GASKET, FILTER ELEMENT

main17841-31020×2i12RJ..RN30,33,35,4#197808-198809

main17841-33011×2i18RJ..RN36,39197910-198310

main17841-54010×2iL,2L..LN3#,4#197912-198809

17845GASKET, AIR CLEANER CAP

main17845-25010i12RJ..RN33,35,4#197912-198210

main17845-31020i12RJ..RN30,40197808-197912

main17845-34050i18RJ..RN36,39197910-198310

main17845-42010i12RJ..RN35,45198210-198809

*G,L=990

main17845-54010iL,2L..LN3#,4#197912-198809

17881HOSE, AIR CLEANER, NO.1

main17881-24021i12RJ..RN35,45198112-198809

main17881-25012i12RJ..RN30,40197808-197912

COLD SPEC

main17881-34110i18RJ..RN36,39197910-198310

W/HOT AIR INTAKE

main17881-54060iL,2L..LN3#,4#197912-198809

main17882-31040i12RJ..RN33,35,4#197912-198112

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10460i12RJ..RN30,40197808-197912

COLD SPEC

main96111-10690×2iL,2L..LN3#,4#197912-198809

ID=69

17882HOSE, AIR CLEANER, NO.2

main17882-89104iL,2L..LN3#,4#197912-198809

main17882-89106i12RJ,18RJ..RN3#,4#198008-198809

main17882-95110i12RJ,18RJ..RN33,36,43197910-198008

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-01003i12RJ,18RJ..RN33,35,36,39,4#197910-198809

main96111-10690×2iL,2L..LN3#,4#197912-198809

ID=69

17883HOSE, AIR CLEANER, NO.3

main17883-89102iL,2L..LN30,40,41197912-198809

main17883-95110iL..LN36,46198110-198310

17883ACLAMP(FOR AIR CLEANER HOSE, NO.3)

main90460-64001iL..LN36,46198110-198310

17897CLAMP, HOSE(FOR AIR CLEANER)

main90461-09002iL,2L..LN3#,4#197912-198809

ID=63.5

9011908171

main90119-08171

9017908143

main90179-08143

9165140616

main91651-40616

9165640616

main91656-40616

9165640816

main91656-40816

20 parts on this diagram · 7 diagrams in section
