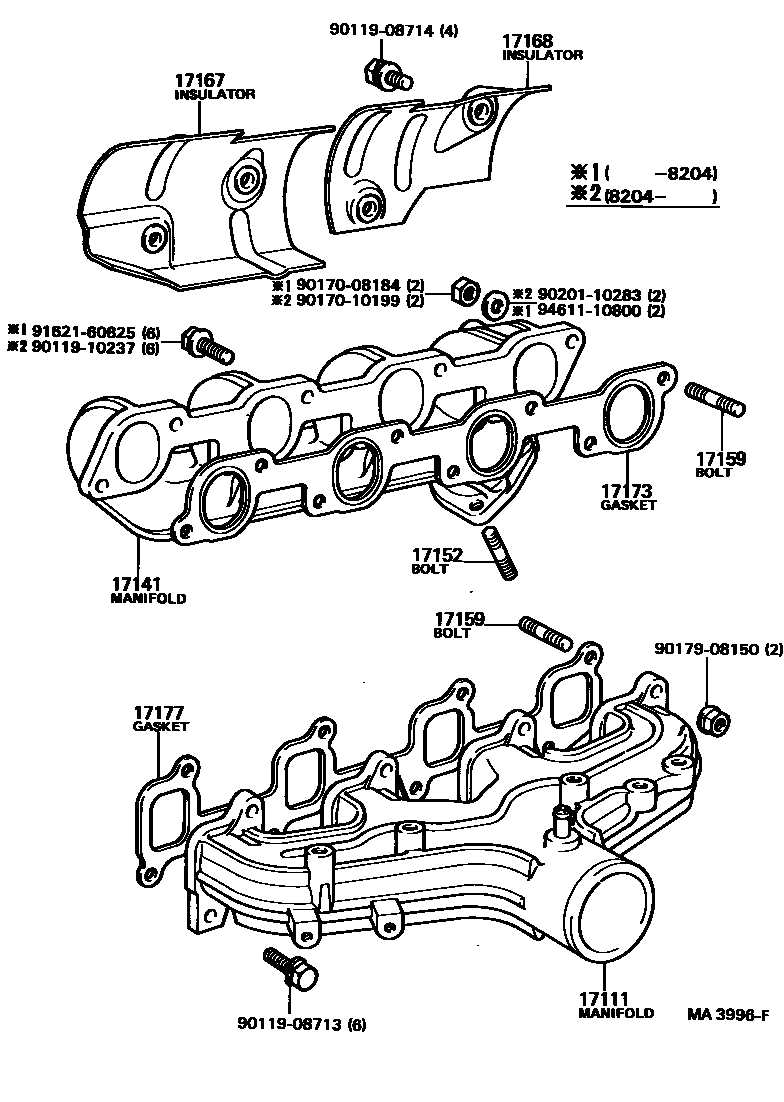

MANIFOLD

0001 1 0002 1 0003 1

17111MANIFOLD, INTAKE

main17101-54011iL..LN30,40197912-198101

main17101-54030iL,2L..LN3#,4#198110-198809

main17101-54040iL..LN30,40198101-198110

17141MANIFOLD, EXHAUST

main17141-54011iL..LN3#,4#197912-198204

main17141-54012iL..LN3#,4#198204-198311

main17141-54040iL,2L..LN4#198311-198809

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10017×3i18RJ..RN36,39197910-198310

L=38,S=14&21

main90116-10027×3iL..LN3#,4#197912-198207

L=45.4,S=14&20

main90116-10042×2i12RJ..RN30,33,35,4#197808-198809

L=37,S=13&20

main90116-10071×3iL..LN3#,4#198207-198302

L=47.4,S=14&22

main90116-10088×3iL,2L..LN3#,4#198302-198809

L=47.4,S=14&22

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08053×4iL..LN3#,4#197912-198204

main90116-08220×2iL,2L..LN4#198504-198809

INTAKE MANIFOLD SIDE

main90116-10027×2iL..LN3#,4#198204-198207

EXHAUST MANIFOLD SIDE

main90116-10071×2iL..LN3#,4#198207-198302

EXHAUST MANIFOLD SIDE

main90116-10088×2iL..LN3#,4#198302-198311

EXHAUST MANIFOLD SIDE

main90116-10091×2iL,2L..LN4#198311-198809

EXHAUST MANIFOLD SIDE

main90116-10141×2i2L..LN41198706-198809

EXHAUST MANIFOLD SIDE

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-54010iL..LN30,40197912-198010

main17167-54011iL..LN3#,4#198010-198401

main17167-54040iL..LN40198401-198411

main17167-54041iL,2L..LN4#198411-198809

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-54010iL..LN30,40197912-198010

main17168-54011iL,2L..LN3#,4#198010-198809

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-54010iL..LN3#,4#197912-198204

main17173-54011iL,2L..LN3#,4#198204-198809

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-54010iL..LN30,40197912-198107

main17177-54011iL..LN3#,4#198107-198411

main17177-54012iL,2L..LN4#198411-198809

9011908713

main90119-08713

9011908714

main90119-08714

9011910237

main90119-10237

9017008184

main90170-08184

9017010199

main90170-10199

9017908150

main90179-08150

9020110283

main90201-10283

9162160825

main91621-60825

9461110800

main94611-10800

17 parts on this diagram · 3 diagrams in section
