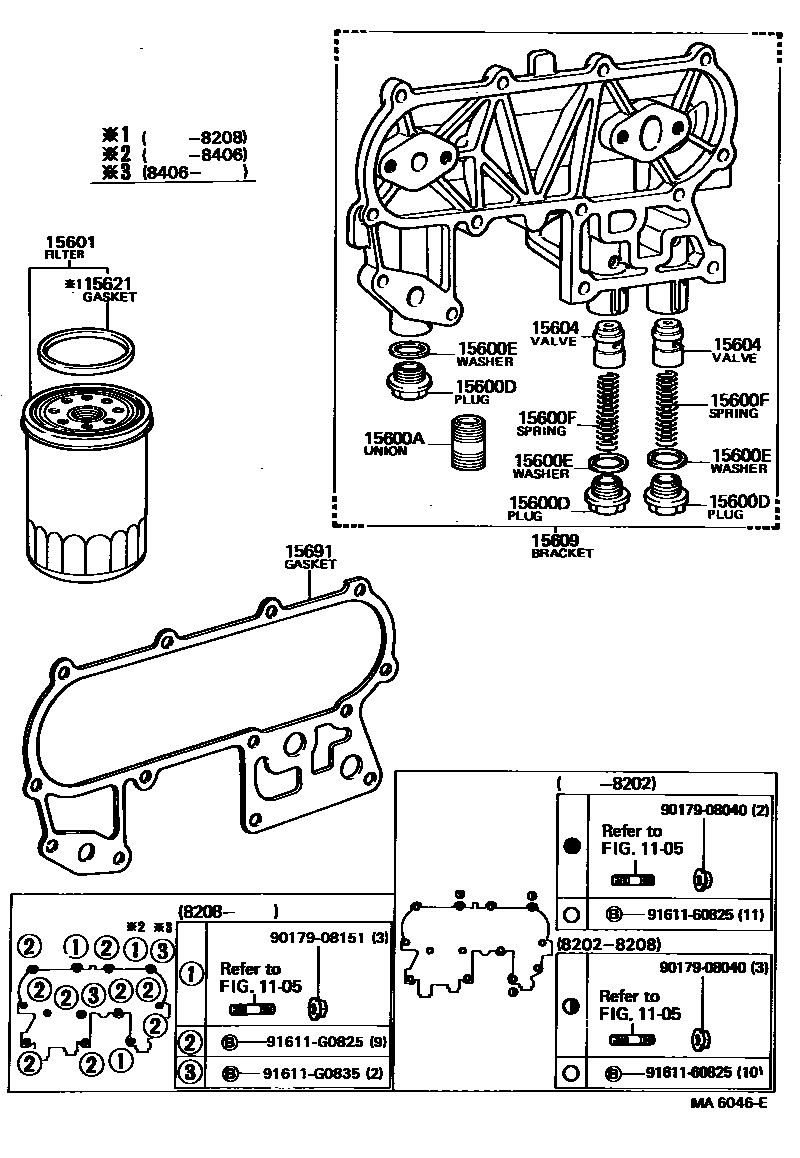

OIL FILTER

0001 1 0002 1 0003 1 MA3357C,MA0087H

1105CYLINDER BLOCK

→ Go to FIG 11-05

15600AUNION(FOR OIL FILTER)

main15116-54010iL,2L..LN3#,4#197912-198809

15600DPLUG(FOR OIL FILTER)

main90341-18001×3iL..LN3#,4#197912-198206

NO.1

main90341-18015×3iL,2L..LN3#,4#198206-198809

NO.1

main90344-54003iL..LN36,46198110-198310

NO.2

15600EWASHER(FOR OIL FILTER)

main90430-18001×3iL..LN3#,4#197912-198411

main90430-18011×3iL,2L..LN4#198411-198809

15600FSPRING, COMPRESSION(FOR OIL FILTER)

main90501-16026×2iL,2L..LN3#,4#197912-198809

15601FILTER SUB-ASSY, OIL

main15600-41010iL,2L..LN3#,4#197912-198809

main15601-33010i18RJ..RN36197910-198105

main15601-33020i18RJ..RN36,39198105-198305

main15601-33021i12RJ,18RJ..RN3#,45198305-198809

15604VALVE SUB-ASSY, OIL SAFETY

main15131-54010×2iL,2L..LN3#,4#197912-198809

15609BRACKET SUB-ASSY, OIL FILTER

main15609-31030i12RJ..RN30,33,35,4#197808-198809

main15609-33011i18RJ..RN36,39197910-198310

main15609-54010iL..LN30,40197912-198205

main15609-54011iL..LN30,40198205-198406

main15609-54012iL,2L..LN4#198406-198806

main15609-54013i2L..LN41198806-198809

main15609-54020iL..LN36,46198110-198310

15621GASKET, OIL FILTER BODY

main15621-22010i12RJ,18RJ..RN3#,4#197808-198208

main15621-41010iL..LN3#,4#197912-198208

15691GASKET, OIL FILTER

main15691-31010i12RJ..RN30,33,35,4#197808-198809

main15691-33010i18RJ..RN36,39197910-198310

main15691-54010iL..LN30,40197912-198108

main15691-54011iL..LN3#,4#198108-198203

main15691-54012iL,2L..LN3#,4#198203-198608

main15691-54020i2L..LN41198608-198806

main15692-54030i2L..LN41198806-198809

9017908040

main90179-08040

9017908151

main90179-08151

9161160825

main91611-60825

91611G0825

main91611-G0825

91611G0835

main91611-G0835

15 parts on this diagram · 3 diagrams in section
