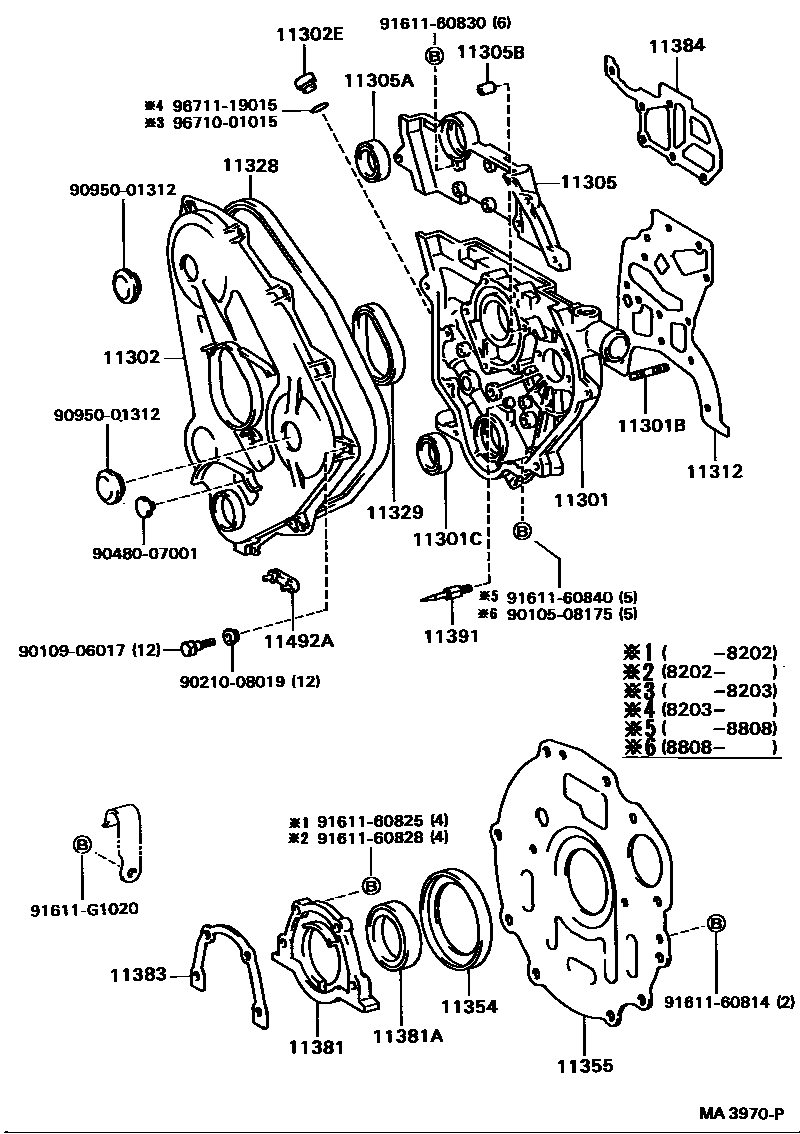

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11301CASE SUB-ASSY, TIMING GEAR

main11311-54010iL..LN30,40197912-198008

main11311-54020iL..LN30,40198008-198105

main11311-54021iL..LN3#,4#198105-198202

main11311-54022iL,2L..LN3#,4#198202-198809

11301BBOLT,STUD(FOR TIMING GEAR CASE)

main92132-60828×2iL,2L..LN3#,4#197912-198809

L=28,S=16&16

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42001iL..LN3#,4#197912-198202

main90311-42003iL..LN3#,4#198202-198406

main90311-42012iL,2L..LN4#198406-198809

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11321-31040i12RJ..RN30,33,35,4#197808-198809

main11321-34010i18RJ..RN36,39197910-198310

main11321-54012iL..LN30,40197912-198104

main11321-54013iL..LN3#,4#198104-198203

main11321-54014iL,2L..LN3#,4#198203-198809

11302EPLUG, STRAIGHT(FOR TIMING GEAR COVER)

main90341-18004iL,2L..LN3#,4#197912-198809

11305RETAINER, OIL SEAL, NO.2

main11382-54010iL,2L..LN3#,4#197912-198809

11305ASEAL, OIL(FOR OIL SEAL RETAINER, NO.2)

main90311-42001iL..LN3#,4#197912-198202

main90311-42003iL,2L..LN3#,4#198202-198809

11305BPIN, RING(FOR OIL SEAL RETAINER, NO.2)

main90253-11001×2iL,2L..LN3#,4#197912-198809

11312GASKET, FRONT END PLATE

main11312-31010i12RJ..RN30,33,35,4#197808-198809

main11312-33012i18RJ..RN36197910-197912

main11312-33014i18RJ..RN36,39197912-198310

main11312-54010iL..LN30,40197912-198008

main11312-54011iL..LN30,40198008-198105

main11312-54012iL..LN3#,4#198105-198201

main11312-54013iL,2L..LN3#,4#198201-198809

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-31010i12RJ..RN30,33,35,4#197808-198809

main11328-33014i18RJ..RN36197910-197912

main11328-33016i18RJ..RN36,39197912-198310

main11328-54010iL,2L..LN3#,4#197912-198809

11329GASKET, TIMING GEAR REAR COVER

main11329-54011iL,2L..LN3#,4#197912-198809

11354SEAL, FLYWHEEL HOUSING DUST

main11354-54010iL,2L..LN3#,4#197912-198809

11355PLATE, REAR END

main11355-33012i18RJ..RN36,39197910-198310

main11355-54030iL,2L..LN3#,4#197912-198809

11381RETAINER, ENGINE REAR OIL SEAL

main11381-38010i18RJ..RN36,39197910-198310

main11381-54010iL,2L..LN3#,4#197912-198808

main11381-54020i2L..LN41198808-198809

11381ASEAL, ENGINE REAR OIL

main90311-80001i18RJ..RN36,39197910-198310

HTC 80 100 12

main90311-85001iL..LN3#,4#197912-198402

HTC 85 105 13

main90311-85003iL,2L..LN4#198402-198608

HTC 85 105 10

main90311-85004i2L..LN41198608-198809

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-33010i18RJ..RN36,39197910-198209

main11383-35010i18RJ..RN39198209-198310

main11383-54010iL,2L..LN3#,4#197912-198808

main11383-54020i2L..LN41198808-198809

11384GASKET, OIL SEAL RETAINER, NO.2

main11384-54010iL,2L..LN3#,4#197912-198809

11391POINTER, TIMING

main11391-31021i12RJ..RN30,33,35,4#197808-198809

main11391-40010i18RJ..RN36,39197910-198310

main11391-54010iL,2L..LN3#,4#197912-198809

11492APLATE, WATER SEAL

main11492-54010iL,2L..LN3#,4#197912-198809

9010508175

main90105-08175

9010906017

main90109-06017

9021008019

main90210-08019

9048007001

main90480-07001

9095001312

main90950-01312

9161160814

main91611-60814

9161160825

main91611-60825

9161160828

main91611-60828

9161160830

main91611-60830

9161160840

main91611-60840

91611G1020

main91611-G1020

9671001015

main96710-01015

9671119015

main96711-19015

32 parts on this diagram · 3 diagrams in section
