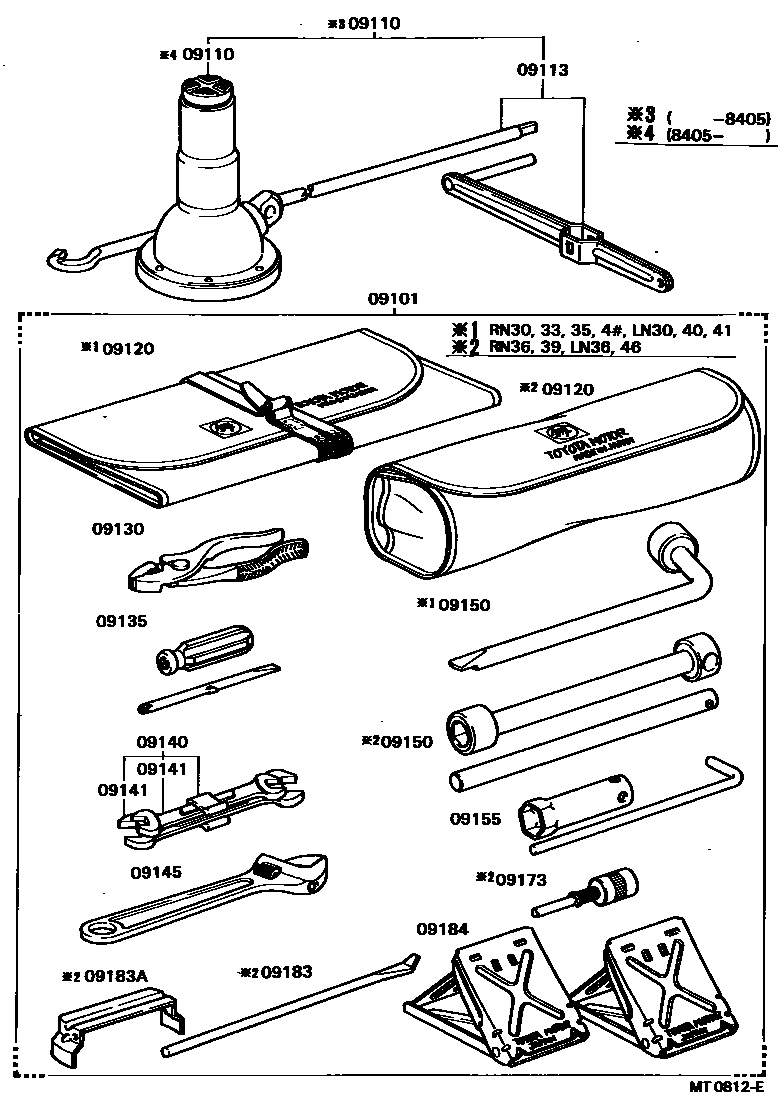

STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09101-26140iLN30,40197912-198205

main09101-26160iLN30,40,41198205-198809

main09101-26162iRN35,45198301-198809

main09101-26174iRN35,45198205-198301

main09101-35070iRN30,40197808-197901

main09101-35090iRN30,40197901-197903

main09101-35091iRN30,33,35,4#197903-198205

main09101-35151iRN36197910-198110

main09101-35210iRN39198110-198205

main09101-35220iLN36,46198110-198205

main09101-35230iLN36,46198205-198310

main09101-35231iRN39198205-198310

09110JACK ASSY

main09110-35090iLN30,40,RN30,33,35,4#..T1197808-198405

main09110-35091iLN40,RN45..TW198110-198310

main09110-35110iRN36197910-198008

main09110-35120iLN36,46,RN36,39198008-198310

main09111-35071iLN4#,RN35,45198405-198809

09113HANDLE, JACK

main09113-35060iLN30,40,41,RN30,33,35,4#..T1197808-198605

main09113-35061iLN41,RN35,45198605-198809

main09113-35070iLN40,RN45..TW198110-198310

main09113-35100iRN36197910-198008

main09113-35110iLN36,46,RN36,39198008-198310

09120BAG, TOOL

main09120-26021iLN30,40,41,RN30,33,35,4#197808-198809

main09120-36020iLN36,46,RN36,39197910-198310

09130PLIERS

main09130-00010iLN3#,4#,RN3#,4#197808-198205

main99913-11500iLN3#,40,46,RN3#,45198205-198809

09135DRIVER, SCREW

main99915-10700iLN3#,40,46,RN3#,4#197808-198809

09140SPANNER SET

main09140-27010iLN3#,40,46,RN3#,4#197808-198807

09141SPANNER

main99914-11012iLN3#,40,46,RN3#,4#197808-198809

main99914-11417iLN3#,40,46,RN3#,4#197808-198809

09145WRENCH, MONKEY

main99911-10200iLN3#,40,46,RN3#,4#197808-198809

09150WRENCH, HUB NUT BOX

main09150-26010iRN30,33,35,4#197901-198301

main09150-30011iRN30,40197808-197901

main09150-35020iLN30,40197912-198301

main09150-60010iLN36,46,RN36,39197910-198310

09155WRENCH, SPARK PLUG

main09155-36010iRN30,40197808-197901

main09155-41010iLN36,46,RN36,39197910-198310

main09155-44010iRN35,45198301-198809

main09155-44020iRN30,40197901-197903

main09155-44030iRN30,33,35,4#197903-198301

09173ATTACHMENT, GREASE GUN

main09173-00010iLN36,46,RN36,39197910-198310

09183WRENCH, WHEEL CAP

main09183-00030iLN36,46,RN39198110-198310

09183AREPLACER, WHEEL CAP

main09183-60010iLN36,46,RN39198110-198310

09184STOPPER, WHEEL

main09184-00010×2iLN30,40,41,RN30,33,35,4#197808-198809

main09184-00031×2iLN36,46,RN36,39197910-198310

15 parts on this diagram · 1 diagram in section
