ANTENNA

82716JBRACKET, WIRING HARNESS CLAMP

main82715-42Q70iAXAP54..X202210

86050ANTENNA ASSY, TELEVISION

main86050-42100supersedes 86050-42090iAXAP54202006-202210

86050EANTENNA ASSY, TELEVISION

main86050-42070iAXAP54202006-202210

86077COVER KIT, ANTENNA

main86077-12060-A1iAXAP54202006-202210

WHITE PEARL CS.,070

main86077-12060-A2iAXAP54..Z202310

PLATINUM WHITE PEARL MC.,089

main86077-12060-B3iAXAP54..X202210

SILVER ME.,1D6

main86077-12060-B4iAXAP54202006-202210

GRAY ME.,1G3

main86077-12060-C2iAXAP54..Z202310

ATTITUDE BLACK MC.,218 ,2PS ,2QY ,2QZ ,2RA ,2SC

main86077-12060-D1iAXAP54..Z202210-202310

EMOTIONAL RED 2,3U5

main86077-12060-J2iAXAP54..Z202210-202310

DK. BLUE MC.,8X8

86101CORD SUB-ASSY, ANTENNA

main86101-42J40iAXAP54202006-202210

main86101-42V90iAXAP54..Z202210-202310

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-42G20iAXAP54202006-202210

main86101-42U10iAXAP54..Z202210-202310

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-42K10iAXAP54202210

main86101-42K00supersedes 86101-42K10iAXAP54202006-202210

86101QCORD SUB-ASSY, ANTENNA, NO.4

main86050-42080iAXAP54202006-202210

86300JANTENNA ASSY, ROOF

main86760-K0010iAXAP54202006-202210

86769HOUSING, ROOF ANTENNA

main86769-K0010iAXAP54202006-202210

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

9011906A06

main90119-06A06

9017906274

main90179-06274

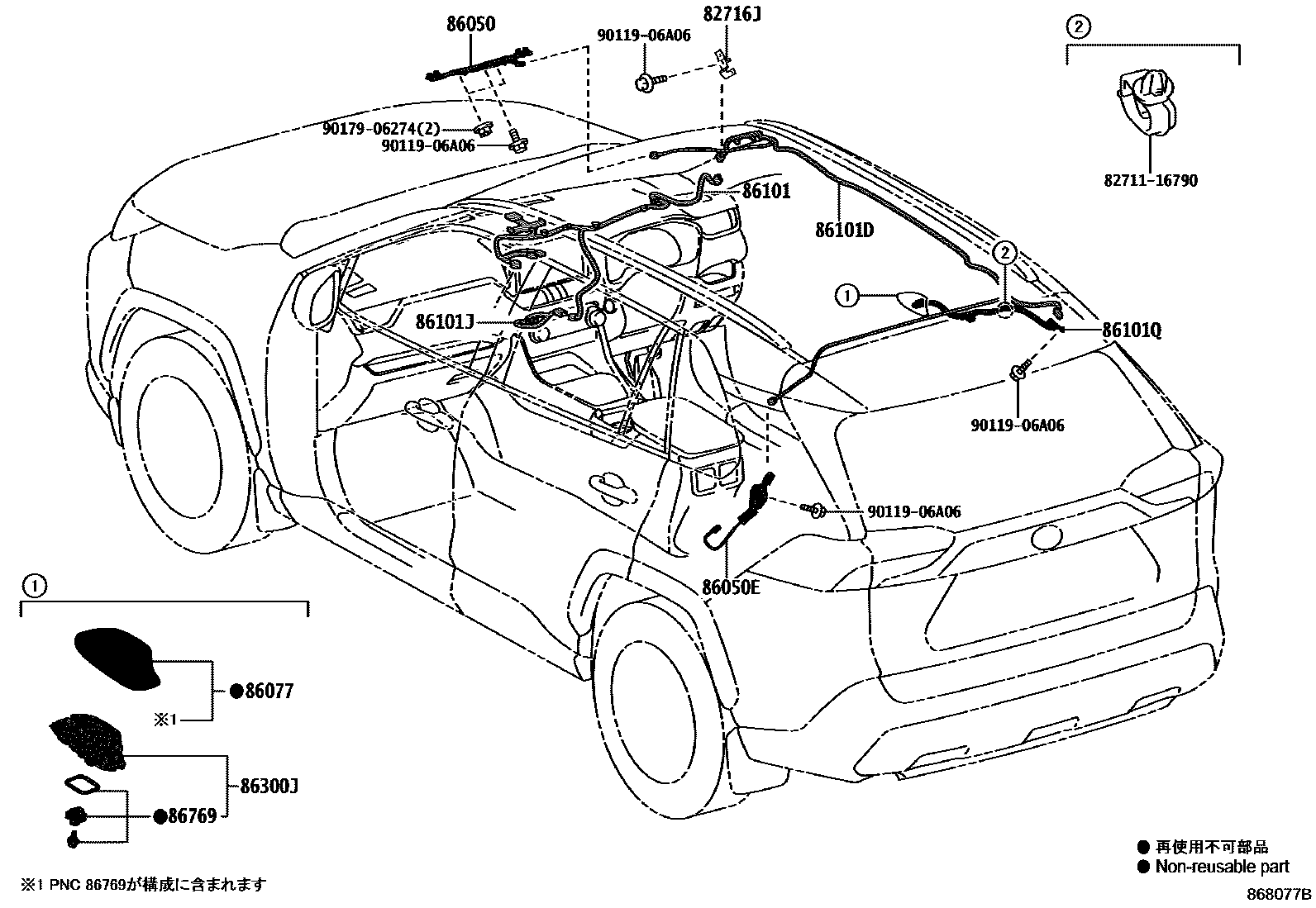

13 parts on this diagram · 1 diagram in section
