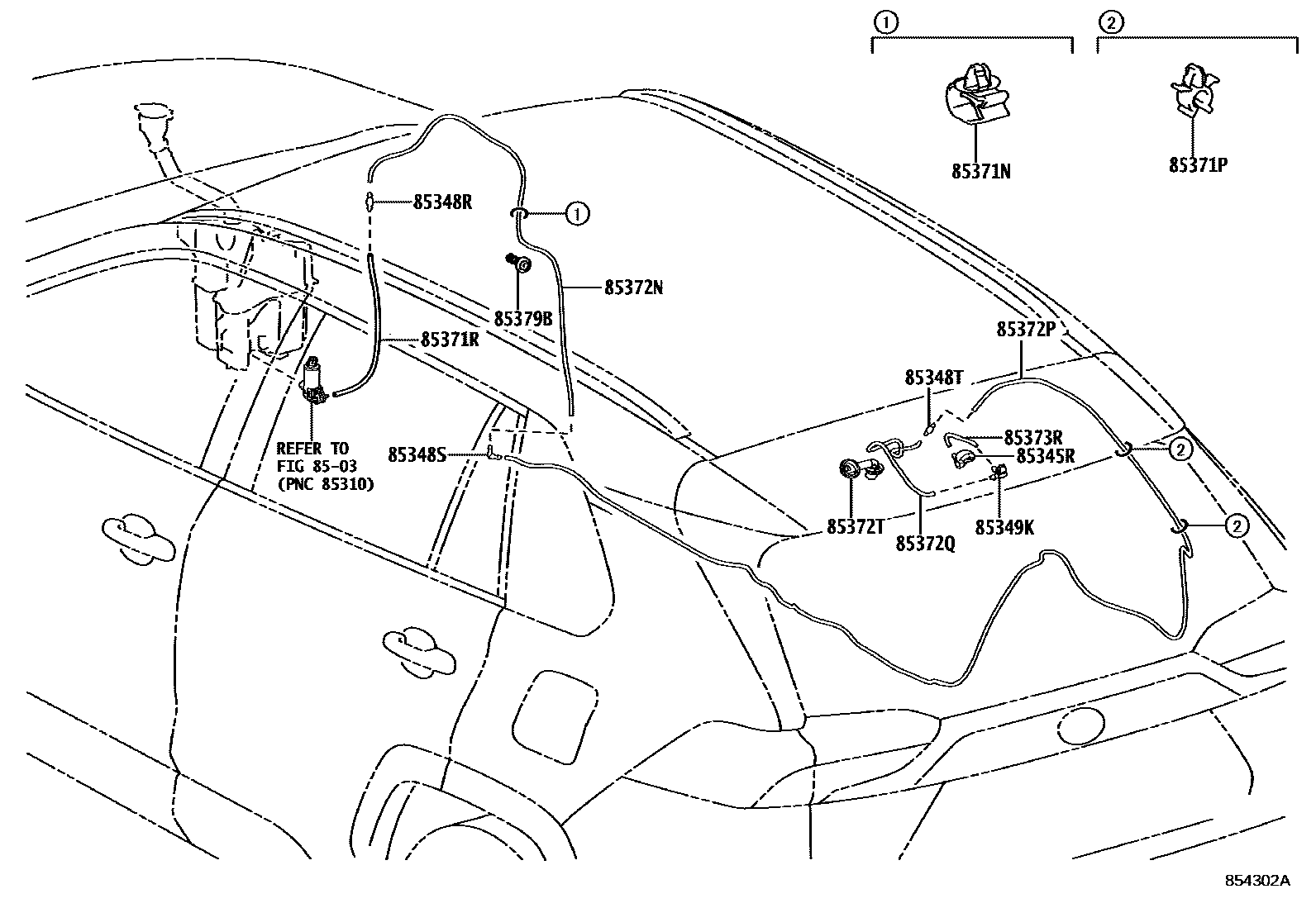

REAR WASHER
8503WINDSHIELD WASHER
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85349KJOINT, REAR WASHER ELBOW, NO.2
85371NCLAMP, REAR WASHER HOSE
85371PCLAMP, REAR WASHER HOSE, NO.2
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
85372TGROMMET, WASHER
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
85379BGROMMET, WASHER, A
15 parts on this diagram · 1 diagram in section
