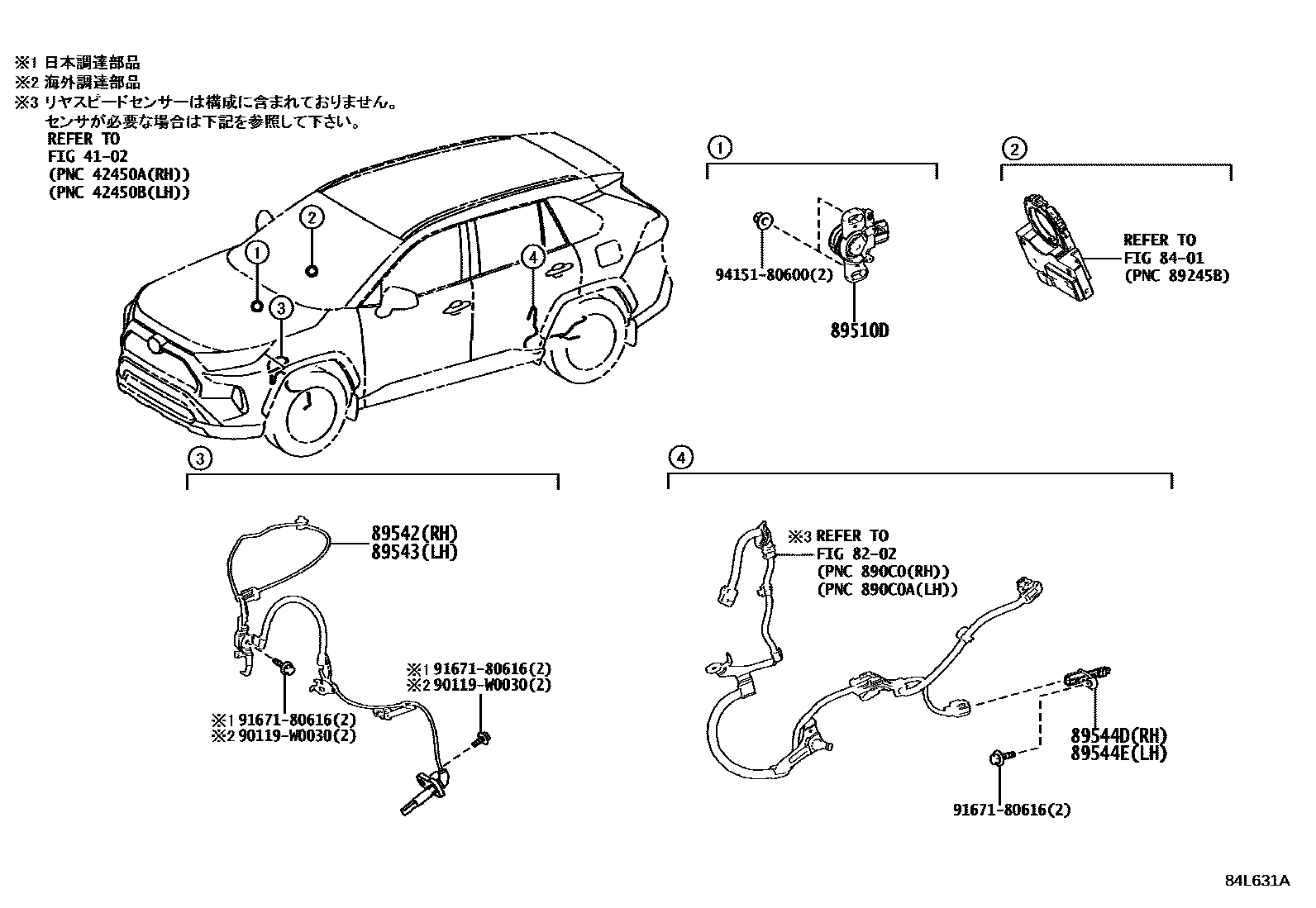

ABS & VSC

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-42020iAXAP54..Z202310

main89510-47030iAXAP54..X202210

89542SENSOR, SPEED, FRONT RH

main89542-42070iAXAP54..Z202310

89543SENSOR, SPEED, FRONT LH

main89543-42070iAXAP54..Z202310

89544DSENSOR, SKID CONTROL, REAR RH

main89544-06130iAXAP54..Z202501

main89544-0R020iAXAP54202006-202210

89544ESENSOR, SKID CONTROL, REAR LH

main89544-06130iAXAP54..Z202501

main89544-0R020iAXAP54..Z202210-202310

90119W0030

main90119-W0030

9167180616

main91671-80616

9415180600

main94151-80600

11 parts on this diagram · 1 diagram in section
