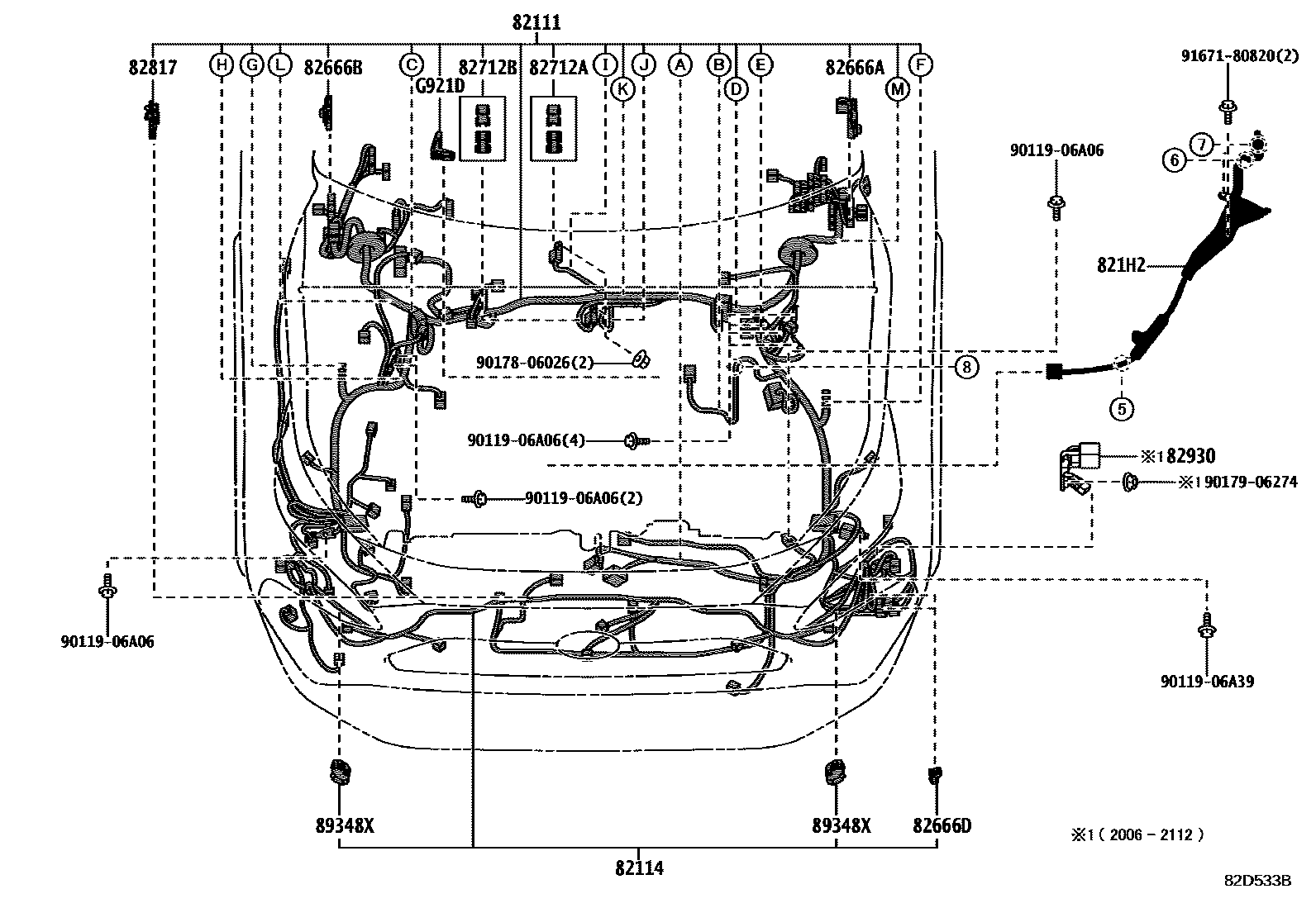

WIRING & CLAMP

0001 1�������� 0002 1�������� 0003 1����� 0004 1����� 0005 1������������ 0006 1��� 0007 1��� & ��� 0008 1��������� 0009 1��� 0010 1����� & ������ 0011 1����� & ������ 0012 1���������� 0013 1���� 1/2 0014 1���� 2/2

82111WIRE, ENGINE ROOM MAIN

main82115-42350iAXAP54202006-202112

main82115-42351iAXAP54202112-202210

main82115-42P90iAXAP54..Z202210-202310

main82115-42P91iAXAP54..Z202310

82114WIRE, ENGINE ROOM, NO.4

main82114-42310supersedes 82114-42330iAXAP54..BLT; AXAP54..G202006-202112

main82114-42311supersedes 82114-42331iAXAP54..BLT; AXAP54..G202112-202210

main82114-42320supersedes 82114-42340iAXAP54..G202006-202112

main82114-42321supersedes 82114-42341iAXAP54..G202112-202210

main82114-42322supersedes 82114-42342iAXAP54..X202210

main82114-42330supersedes 82114-42340iAXAP54..BLT; AXAP54..G202006-202112

main82114-42331supersedes 82114-42341iAXAP54..BLT; AXAP54..G202112-202210

main82114-42860supersedes 82114-42870iAXAP54..Z202210-202310

main82114-42870supersedes 82114-42342iAXAP54..X202210

821H2WIRE, HV AIR CONDITIONER

main821H2-42030iAXAP54202006-202210

82666AHOLDER, CONNECTOR NO.2

main82666-42710iAXAP54..Z202210-202310

82666BHOLDER, CONNECTOR NO.3

main82666-60220iAXAP54202006-202210

82666DHOLDER, CONNECTOR NO.5

main82666-42720iAXAP54202006-202210

main82666-42780iAXAP54..Z202210-202310

82712ASUPPORT, WIRING HARNESS

main82712-42150iAXAP54202006-202210

82712BSUPPORT, WIRING HARNESS

main82712-42180iAXAP54202006-202210

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-42A90iAXAP54202006-202210

82930CONDENSER ASSY, WIRING HARNESS, NO.1

main82930-42020iAXAP54202006-202112

89348XCLIP, ULTRASONIC SENSOR, FRONT

main89348-58130×2iAXAP54202006-202210

G921DPROTECTOR, INVERTER CONNECTOR COVER

mainG921D42020iAXAP54202006-202210

9011906A06

main90119-06A06

9011906A39

main90119-06A39

9017806026

main90178-06026

9017906274

main90179-06274

9167180820

main91671-80820

17 parts on this diagram · 14 diagrams in section
