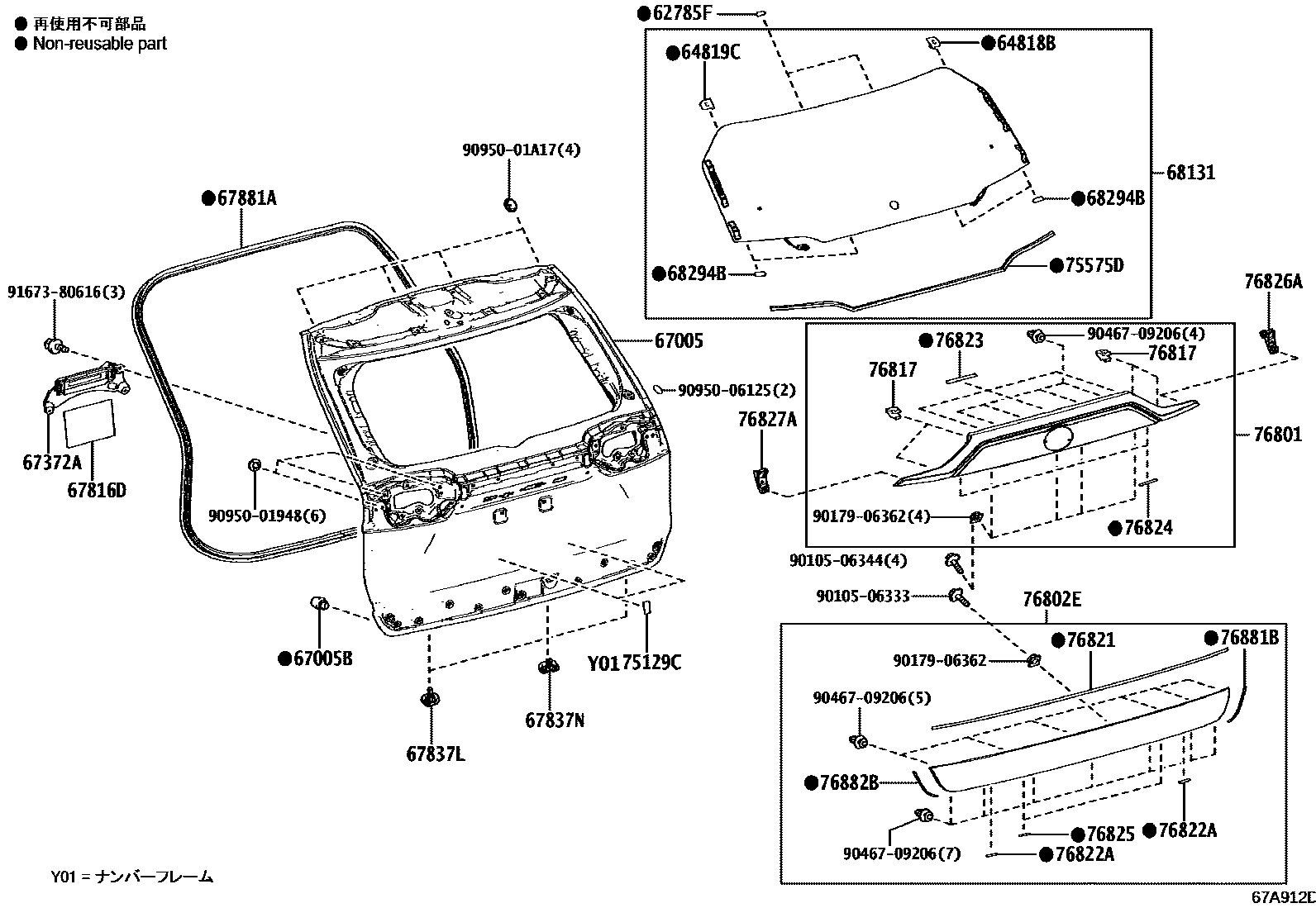

BACK DOOR PANEL & GLASS
62785FSPACER, BACK DOOR GLASS
64818BSPACER, BACK DOOR GLASS, NO.1
64819CSPACER, BACK DOOR GLASS, NO.2
67005PANEL SUB-ASSY, BACK DOOR
67005BCUSHION(FOR BACK DOOR PANEL)
67372AWEIGHT, BACK DOOR
67816DSHEET, BACK DOOR PANEL SILENCER
67837LSEAL, DOOR DUST PROOF
67837NSEAL, BACK DOOR DUST PROOF
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
68294BDAM, BACK DOOR GLASS ADHESIVE
75129CCUSHION, REAR LICENCE PLATE
75575DMOULDING, BACK WINDOW, LOWER
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
76802EGARNISH SUB-ASSY, BACK DOOR, OUTSIDE LOWER
ATTITUDE BLACK MC.,070 ,1D6 ,1G3 ,218 ,2QJ ,2QY ,2QZ ,2RA ,2SC ,3U5 ,8X8
76817CLIP, BACK DOOR OUTSIDE GARNISH
76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER
76822APROTECTOR, BACK DOOR GARNISH MOULDING, LWR
76823PROTECTOR, BACK DOOR GARNISH MOULDING, RH
76824PROTECTOR, BACK DOOR GARNISH MOULDING, LH
76825PROTECTOR, BACK DOOR OUTSIDE GARNISH
76826ARETAINER, BACK DOOR GARNISH, NO.1
76827ARETAINER, BACK DOOR GARNISH, NO.2
76881BPROTECTOR, BACK DOOR LOWER MOULDING, RH
76882BPROTECTOR, BACK DOOR LOWER MOULDING, LH
9010506333
main90105-06333
9010506344
main90105-06344
9017906362
main90179-06362
9046709206
main90467-09206
9095001948
main90950-01948
9095001A17
main90950-01A17
9095006125
main90950-06125
9167380616
main91673-80616
34 parts on this diagram · 2 diagrams in section
