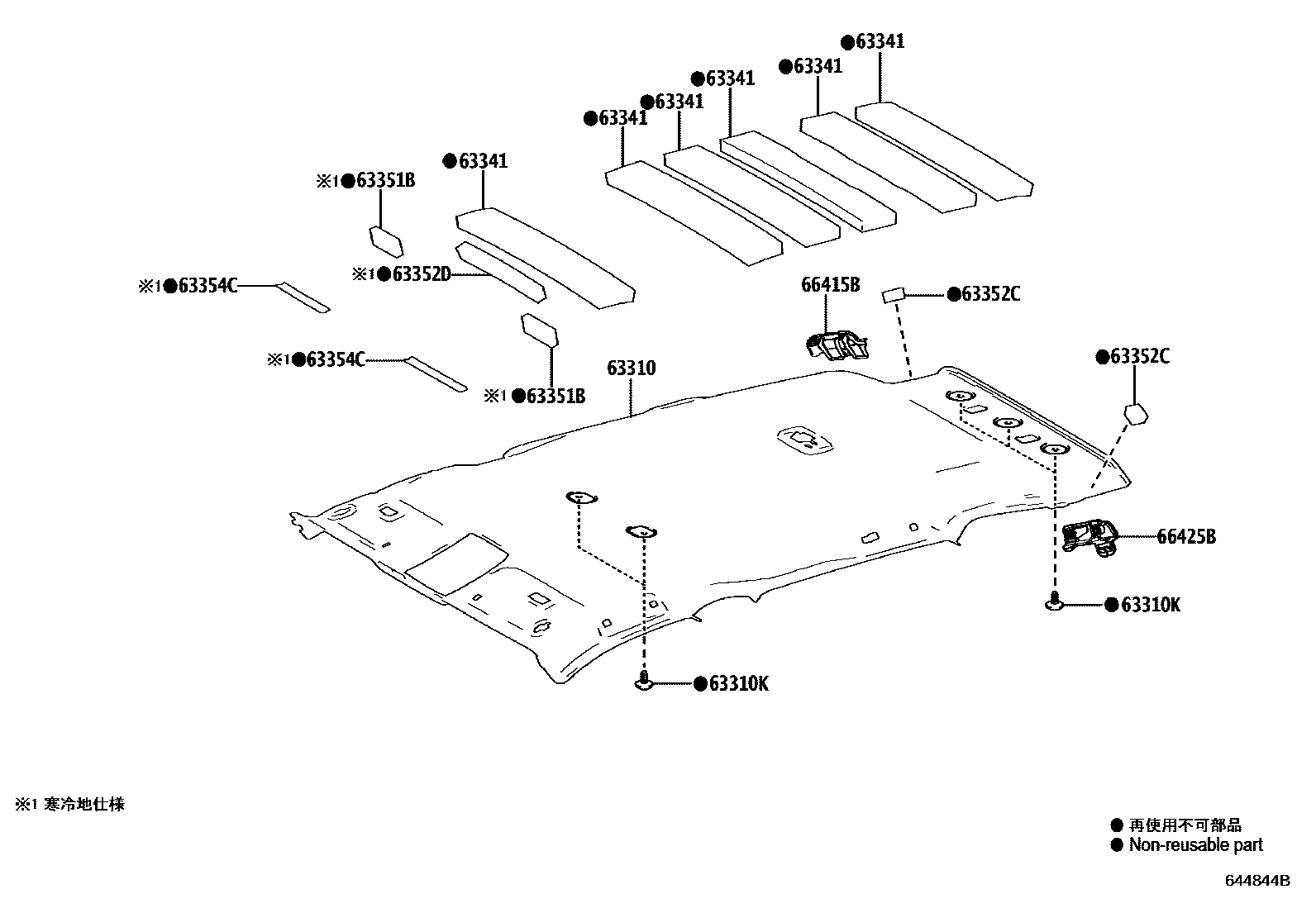

Toyota RAV4 PHV — ROOF HEADLINING & SILENCER PAD
63310KCLIP
63341PAD, ROOF SILENCER, NO.1
63351BPAD, ROOF HEADLINING
63352CPAD, ROOF HEADLINING, END
63352DPAD, ROOF HEADLINING, NO.2
63354CPAD, ROOF HEADLINING FRONT SIDE
66415BSPACER, SIDE RAIL, REAR NO.2 RH
66425BSPACER, SIDE RAIL, REAR NO.2 LH
9 parts on this diagram · 2 diagrams in section
ROOF HEADLINING & SILENCER PAD for Toyota RAV4 PHV
This section contains 10 genuine Toyota parts for the ROOF HEADLINING & SILENCER PAD system of the Toyota RAV4 PHV. Key components include: TRIM SUB-ASSY, SUNSHADE, HEADLINING ASSY, ROOF, CLIP, PAD, ROOF SILENCER, NO.1, PAD, ROOF HEADLINING.
