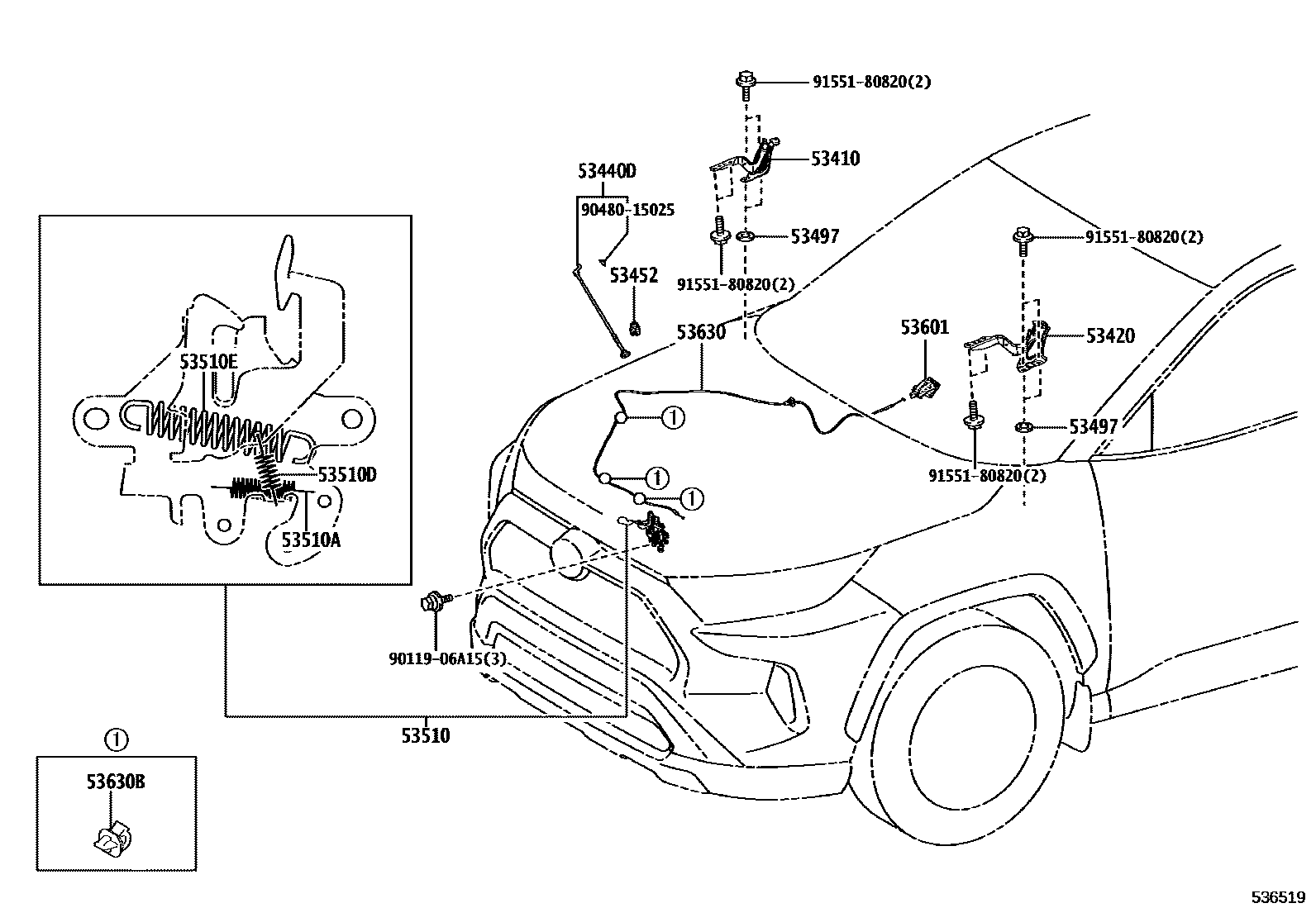

Toyota RAV4 PHV — HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53440DSUPPORT ASSY, HOOD
53452HOLDER, HOOD STAY
53510ASPRING, TENSION(FOR HOOD LOCK)
53510DSPRING, TENSION(FOR HOOD LOCK)
53510ESPRING, TENSION(FOR HOOD LOCK)
53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)
9011906A15
9048015025
9155180820
15 parts on this diagram · 1 diagram in section
HOOD LOCK & HINGE for Toyota RAV4 PHV
This section contains 15 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota RAV4 PHV. Key components include: HINGE ASSY, HOOD, RH, HINGE ASSY, HOOD, LH, SUPPORT ASSY, HOOD, HOLDER, HOOD STAY, PAD, HOOD HINGE, NO.1.
