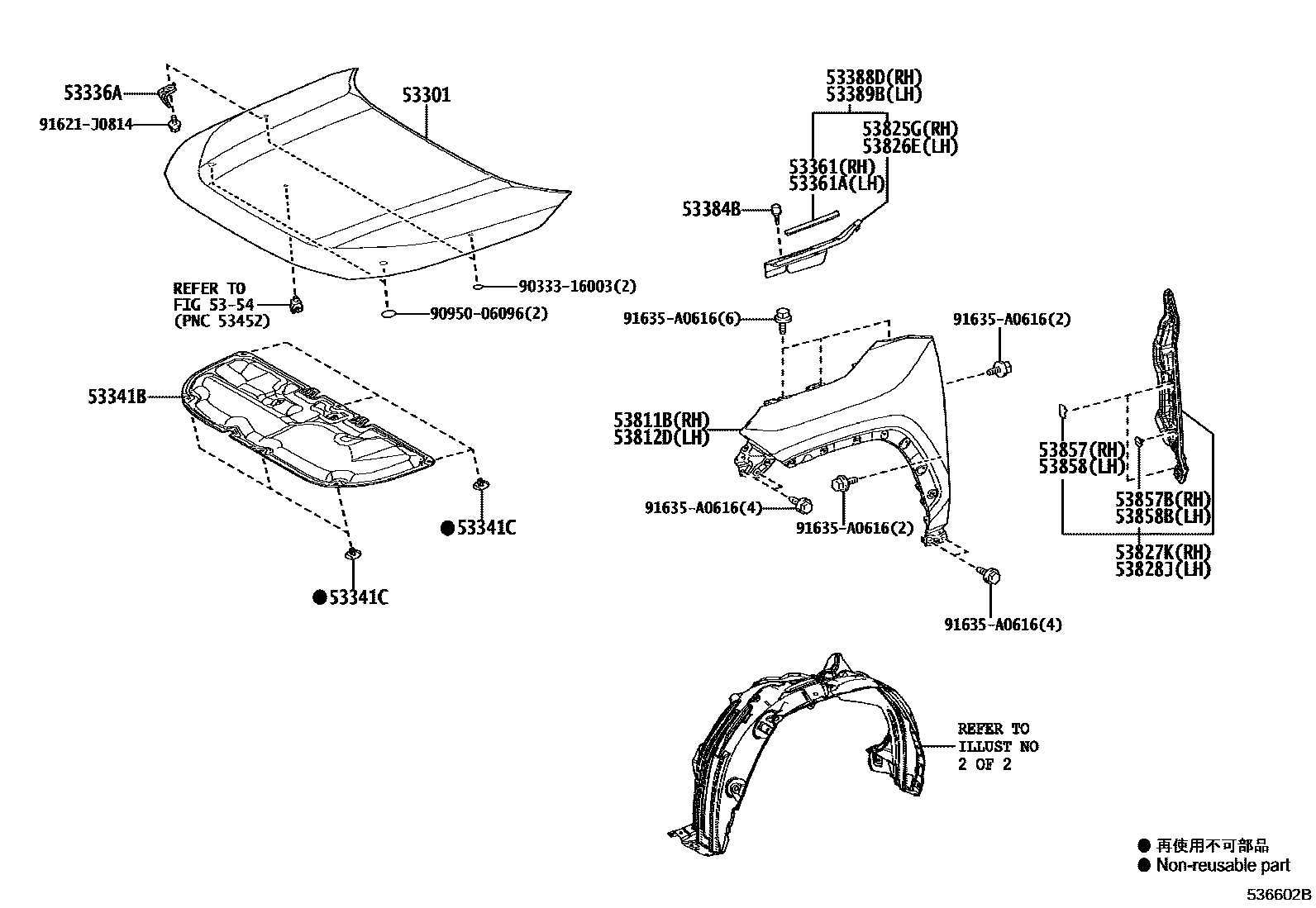

HOOD & FRONT FENDER

0001 1 0002 1��������

53301HOOD SUB-ASSY

main53301-42150iAXAP54202006-202210

53336ABRACKET, HOOD STAY

main53336-42010iAXAP54202006-202210

53341BINSULATOR, HOOD

main53341-42100iAXAP54202006-202210

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×6iAXAP54202006-202210

53361WEATHERSTRIP, HOOD

main53361-42020iAXAP54202006-202210

53361AWEATHERSTRIP, HOOD

main53361-42020iAXAP54202006-202210

53384BCUSHION, HOOD, CENTER

main53384-22070×2iAXAP54202006-202210

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-42040iAXAP54202006-202210

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-42060iAXAP54202006-202210

5354HOOD LOCK & HINGE

→ Go to FIG 53-54

53811BPANEL, FRONT FENDER, RH

main53811-42330iAXAP54202006-202210

53812DPANEL, FRONT FENDER, LH

main53812-42360iAXAP54202006-202210

53825GPROTECTOR, FRONT FENDER, UPPER RH

main53825-42050iAXAP54202006-202210

53826EPROTECTOR, FRONT FENDER, UPPER LH

main53826-42030iAXAP54202006-202210

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-42060iAXAP54202006-202210

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-42080iAXAP54202006-202210

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010×2iAXAP54202006-202210

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iAXAP54202006-202210

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010×2iAXAP54202006-202210

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iAXAP54202006-202210

9033316003

main90333-16003

9095006096

main90950-06096

91621J0814

main91621-J0814

91635A0616

main91635-A0616

24 parts on this diagram · 2 diagrams in section
