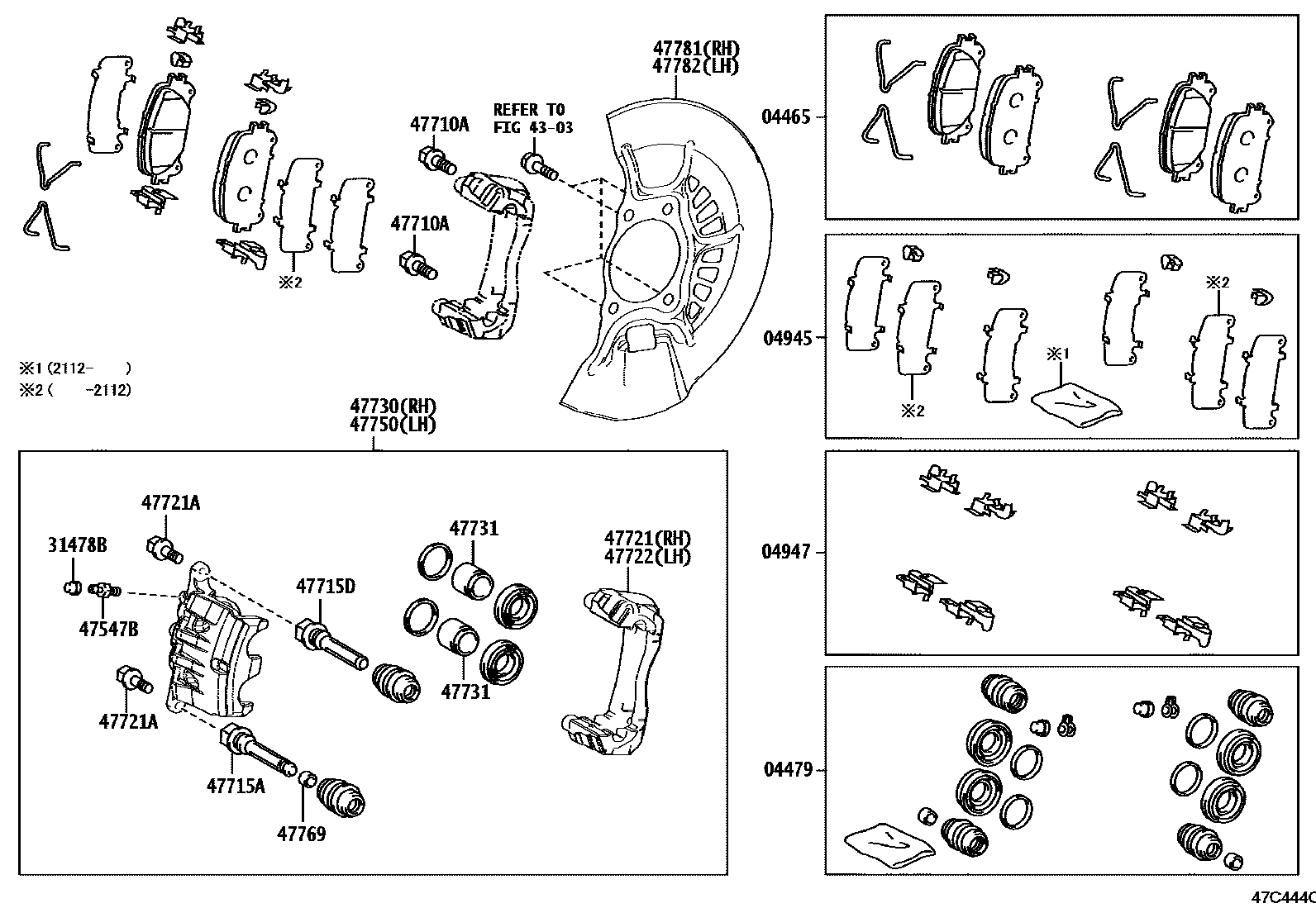

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-48230202006-202112

main04465-78020202112-202310

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-42030202006-202310

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-48170202006-202112

main04945-48190202112-202310

04947FITTING KIT, DISC BRAKE, FRONT

main04947-48080202006-202310

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010202006-202310

4303FRONT AXLE HUB

→ Go to FIG 43-03

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12130202006-202310

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12401202006-202210

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-48150202006-202310

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-48150202006-202310

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-42130202006-202310

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90015-AA602202006-202210

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-42130202006-202310

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-42130202006-202310

47731PISTON, FRONT DISC BRAKE

main47731-48150202006-202310

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-42130202006-202310

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-48150202006-202310

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-33060202006-202310

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-33060202006-202310

19 parts on this diagram · 1 diagram in section
