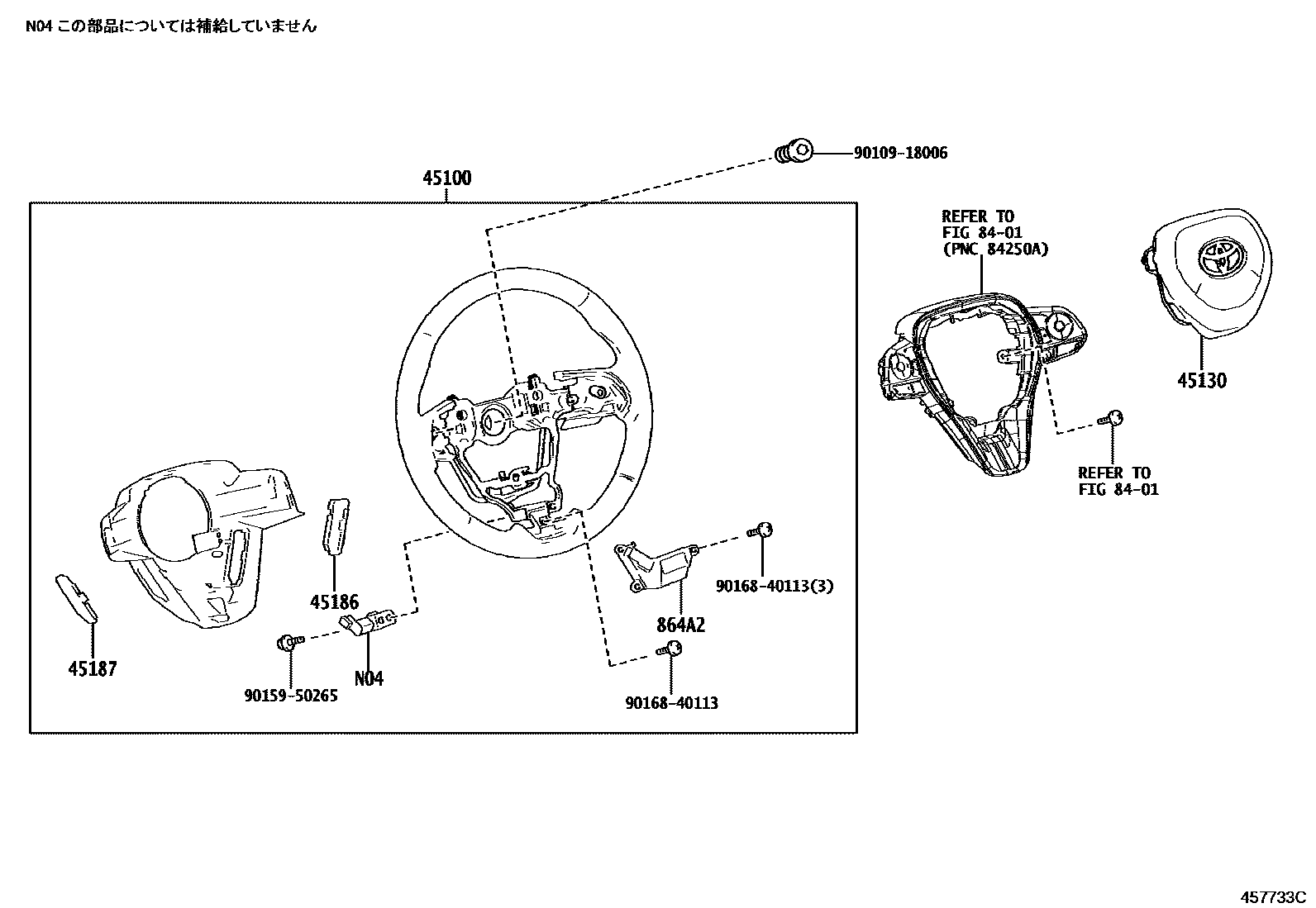

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-42410-C1iAXAP54202006-202210

45130BUTTON ASSY, HORN

main45130-12E40-C0iAXAP54202006-202210

BLACK,TRIM2#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-42050-C0iAXAP54202006-202210

BLACK,TRIM2#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-42030-C0iAXAP54202006-202210

BLACK,TRIM2#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

864A2COMPUTER, STEERING VIBRATION

main864A1-42010iAXAP54202006-202210

9010918006

main90109-18006

9015950265

main90159-50265

9016840113

main90168-40113

9 parts on this diagram · 1 diagram in section
