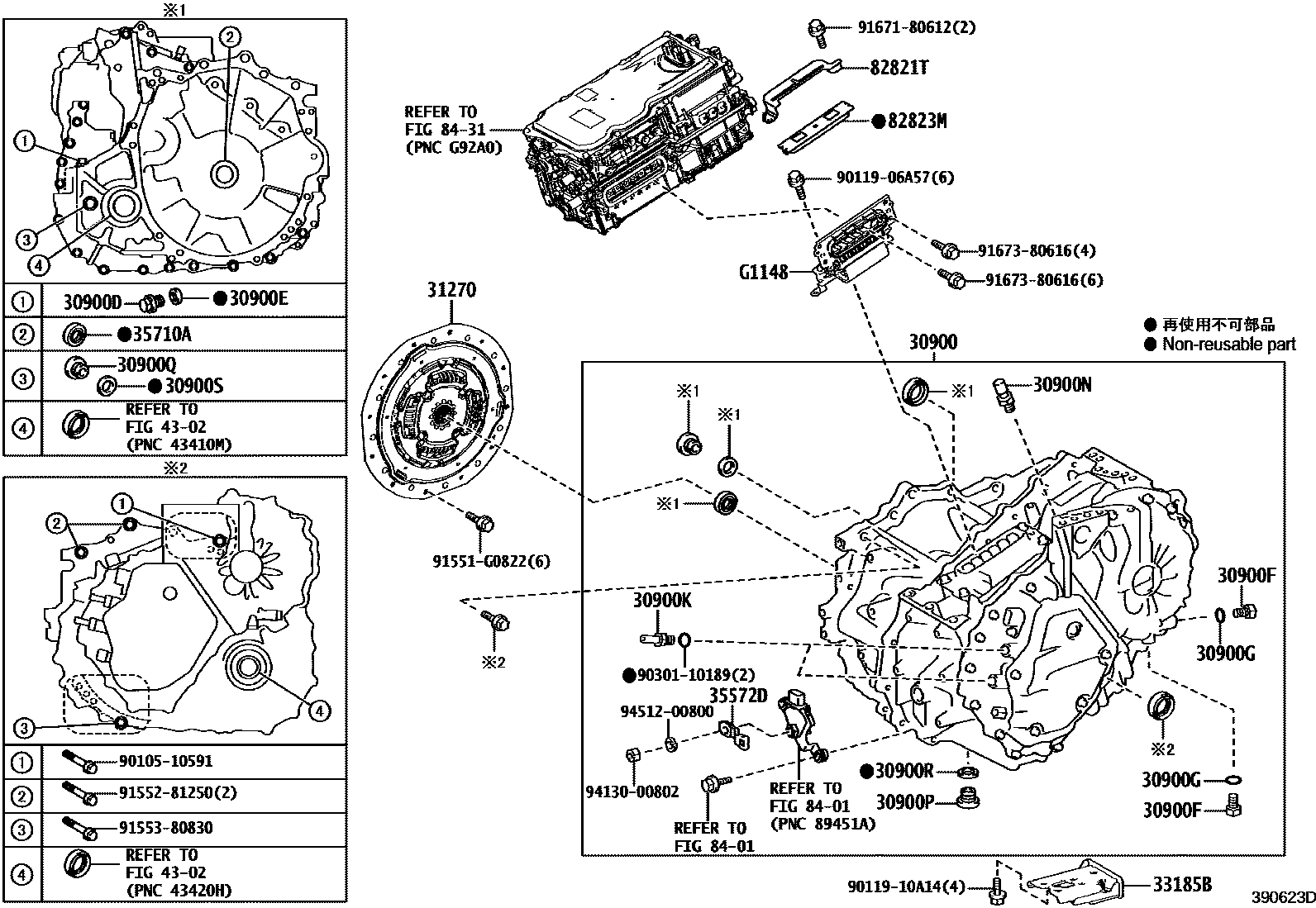

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1���������������������ASSY 0002 1�����������

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-42050iAXAP54202006-202104

main30900-42051iAXAP54202105-202310

30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)

main90341-18060iAXAP54202006-202310

30900EGASKET(FOR TRANSAXLE HOUSING & CASE)

main90430-18008iAXAP54202006-202310

30900FPLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR TRANSAXLE HSG & CASE)

main90341-13001iAXAP54202006-202210

30900GGASKET, NO.2(FOR TRANSAXLE HOUSING & CASE)

main90301-10189iAXAP54202006-202210

30900KCONNECTOR, TUBE(FOR TRANSAXLE HOUSING)

main90404-13010iAXAP54202006-202310

30900NPLUG, BREATHER(FOR TRANSAXLE)

main90930-03223iAXAP54202006-202310

30900PPLUG, DRAIN(HEV)

main90341-18016iAXAP54202006-202310

30900QPLUG, FILLER(HEV)

main90341-18016iAXAP54202006-202310

30900RGASKET, DRAIN PLUG(HEV)

main90430-18008iAXAP54202006-202310

30900SGASKET, FILLER PLUG(HEV)

main90430-18008iAXAP54202006-202310

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-48040iAXAP54202006-202310

33185BBRACKET, TRANSAXLE UNDER STOPPER

main33185-42030iAXAP54202006-202310

35572DLEVER, TRANSMISSION CONTROL SHAFT

main35572-33070iAXAP54202006-202310

35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)

main90311-29003iAXAP54202006-202310

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

82821TCOVER, CONNECTOR

main82821-47240iAXAP54..Z202006-202310

82823MCAP, TERMINAL

main82823-47040iAXAP54..Z202006-202310

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8431HEV INVERTER

→ Go to FIG 84-31

G1148CABLE, MOTOR

mainG114848110iAXAP54202006-202310

9010510591

main90105-10591

9011906A57

main90119-06A57

9011910A14

main90119-10A14

9030110189

main90301-10189

91551G0822

main91551-G0822

9155281250

main91552-81250

9155380830

main91553-80830

9167180612

main91671-80612

9167380616

main91673-80616

9413000802

main94130-00802

9451200800

main94512-00800

32 parts on this diagram · 2 diagrams in section
