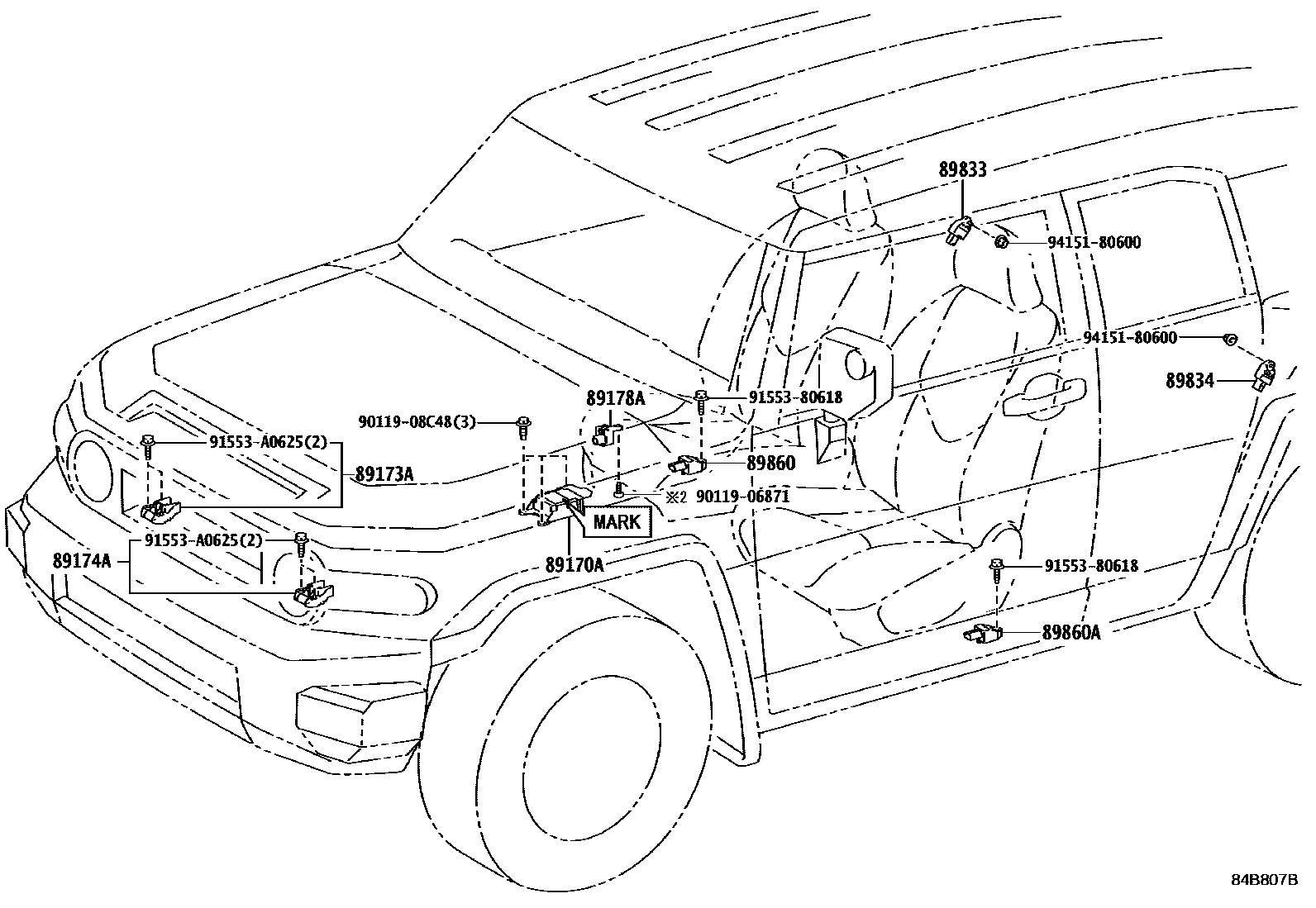

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-35320iGSJ15201011-201108

main89170-35350iGSJ15201204-201208

main89170-35380iGSJ15201108-201203

main89170-35420iGSJ15201208-201801

89173ASENSOR, AIRBAG, FRONT RH

main89173-39375iGSJ15201011-201208

main89173-39455iGSJ15201208-201801

89174ASENSOR, AIRBAG, FRONT LH

main89173-39375iGSJ15201011-201208

main89173-39455iGSJ15201208-201801

89178ASENSOR, SEAT POSITION AIRBAG

main89178-06020iGSJ15201011-201801

89833SENSOR, AIRBAG, REAR RH

main89831-35020iGSJ15201011-201208

main89831-35040iGSJ15201208-201801

89834SENSOR, AIRBAG, REAR LH

main89831-35020iGSJ15201011-201208

main89831-35040iGSJ15201208-201801

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-35011iGSJ15201108-201208

main89831-35030iGSJ15201011-201108

main89831-75020iGSJ15201208-201801

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-35011iGSJ15201108-201208

main89831-35030iGSJ15201011-201108

main89831-75020iGSJ15201208-201801

9011906871

main90119-06871

9011908C48

main90119-08C48

9155380618

main91553-80618

91553A0625

main91553-A0625

9415180600

main94151-80600

13 parts on this diagram · 1 diagram in section
