ELECTRONIC FUEL INJECTION SYSTEM

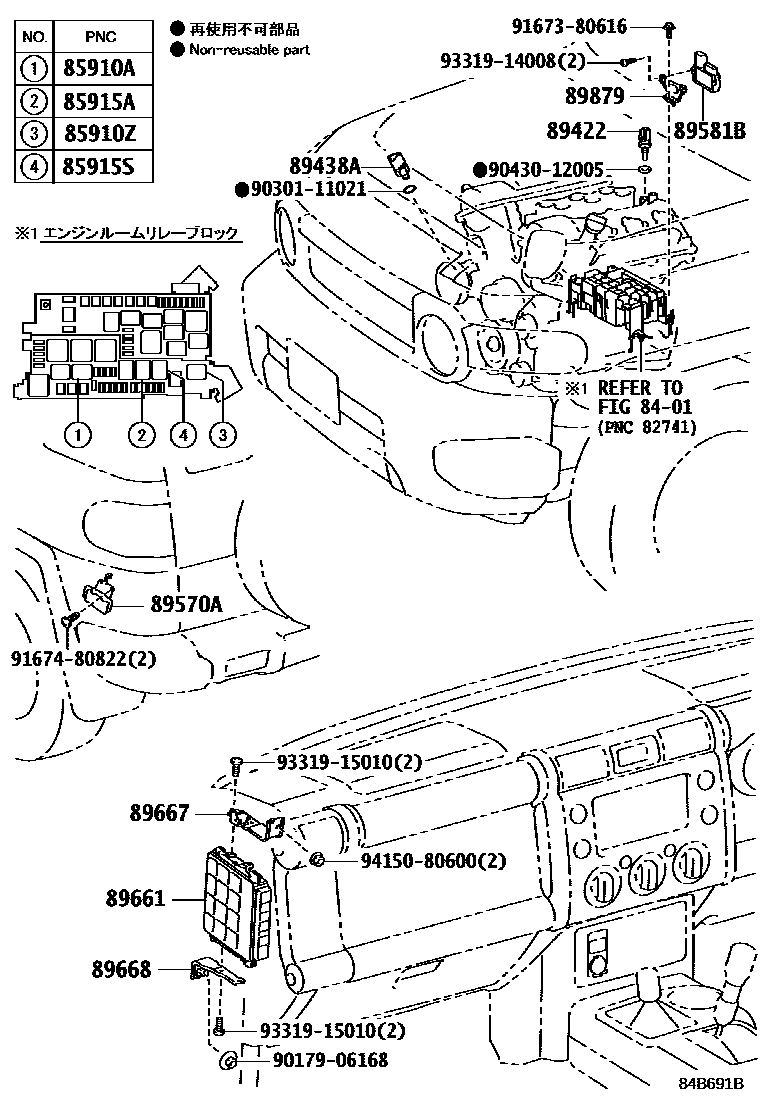

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02027iGSJ15201011-201801

85910ZRELAY, INJECTION (FOR EFI)

main90987-02027iGSJ15201011-201801

85915ARELAY, MAIN

main90987-02027iGSJ15201011-201801

85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)

main90987-02027iGSJ15201011-201801

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iGSJ15201011-201801

89438ASWITCH, POWER STEERING OIL PRESSURE

main89448-34020iGSJ15201011-201801

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-35240iGSJ15201011-201208

main89570-35260iGSJ15201208-201801

89581BDRIVER, AIR INJECTION CONTROL

main89581-60010iGSJ15201011-201801

89661COMPUTER, ENGINE CONTROL

main89661-35J10iGSJ15201011-201108

main89661-35K50iGSJ15201108-201208

main89661-35L30iGSJ15201208-201407

main89661-35N20iGSJ15201407-201801

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-35140iGSJ15201011-201801

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-35170iGSJ15201011-201801

89879BRACKET, INJECTOR DRIVER

main89589-60040iGSJ15201011-201801

9017906168

main90179-06168

9030111021

main90301-11021

9043012005

main90430-12005

9167380616

main91673-80616

9167480822

main91674-80822

9331914008

main93319-14008

9331915010

main93319-15010

9415080600

main94150-80600

21 parts on this diagram · 1 diagram in section
