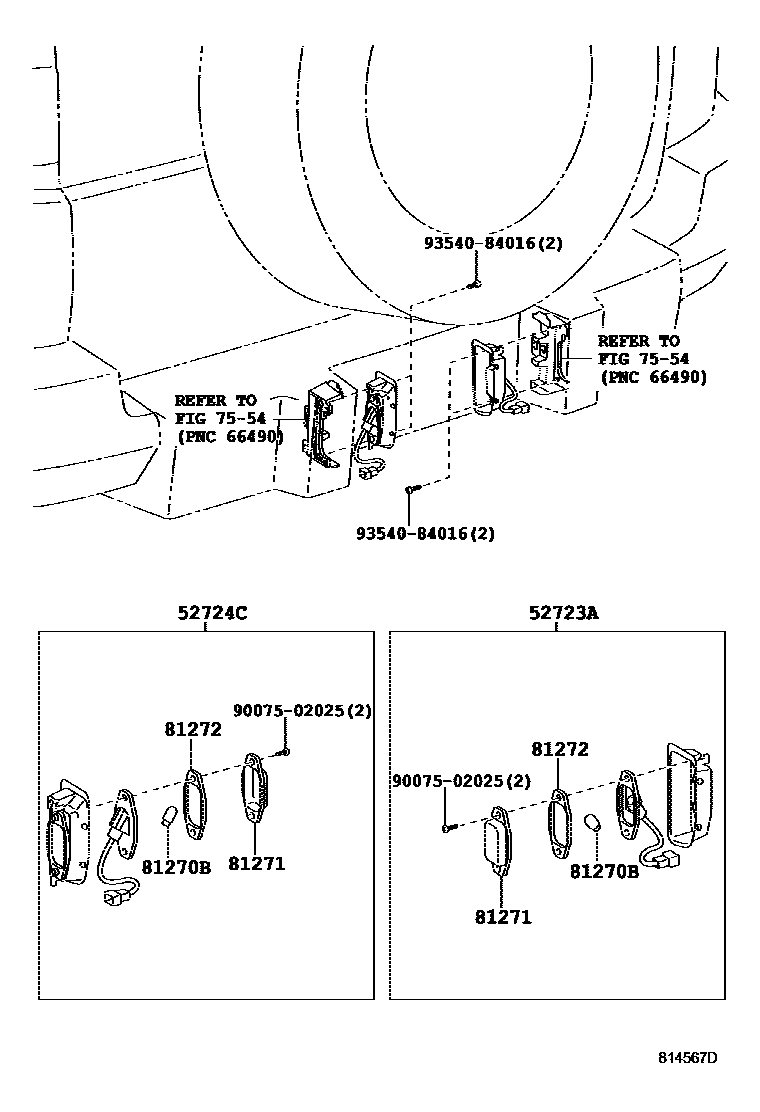

REAR LICENSE PLATE LAMP

52723AMOULDING, REAR BUMPER EXTENSION, RH

main52723-35011iGSJ15201011-201801

52724CMOULDING, REAR BUMPER EXTENSION, LH

main52724-35011iGSJ15201011-201801

7554TOOL BOX & LICENSE PLATE BRACKET

→ Go to FIG 75-54

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050×2iGSJ15201011-201801

81271LENS, LICENSE PLATE LAMP

main81271-24010×2iGSJ15201011-201801

81272GASKET, LICENSE PLATE LAMP LENS

main81272-24010×2iGSJ15201011-201801

9007502025

main90075-02025

9354084016

main93540-84016

8 parts on this diagram · 1 diagram in section
