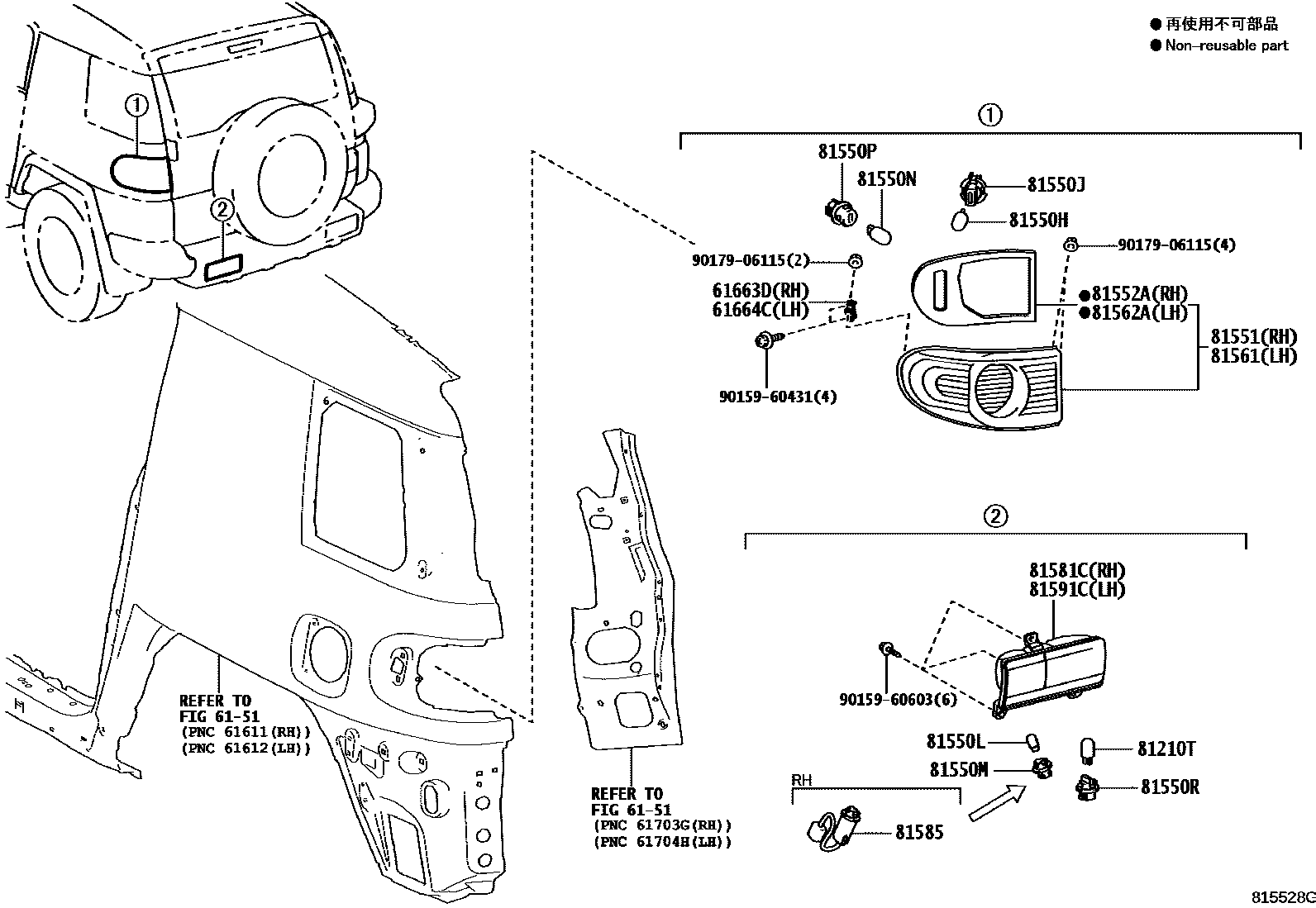

REAR COMBINATION LAMP
6151
61663DSUPPORT, REAR COMBINATION LAMP, RH
61664CSUPPORT, REAR COMBINATION LAMP, LH
81210TBULB, REAR FOG LAMP
81550HBULB, TAIL & STOP LAMP
81550JSOCKET, TAIL & STOP LAMP
81550LBULB, REAR TURN SIGNAL LAMP
81550MSOCKET, REAR TURN SIGNAL LAMP
81550NBULB, BACK UP LAMP
81550PSOCKET, BACK UP LAMP
81550RSOCKET, REAR FOG LAMP
81551LENS, REAR COMBINATION LAMP, RH
81552AGASKET, REAR COMBINATION LAMP, RH
81561LENS, REAR COMBINATION LAMP, LH
81562AGASKET, REAR COMBINATION LAMP, LH
81581CLENS AND BODY, REAR LAMP, RH
81585SOCKET & WIRE, REAR LAMP
81591CLENS, REAR LAMP, LH
9015960431
main90159-60431
9015960603
main90159-60603
9017906115
main90179-06115
21 parts on this diagram · 1 diagram in section
