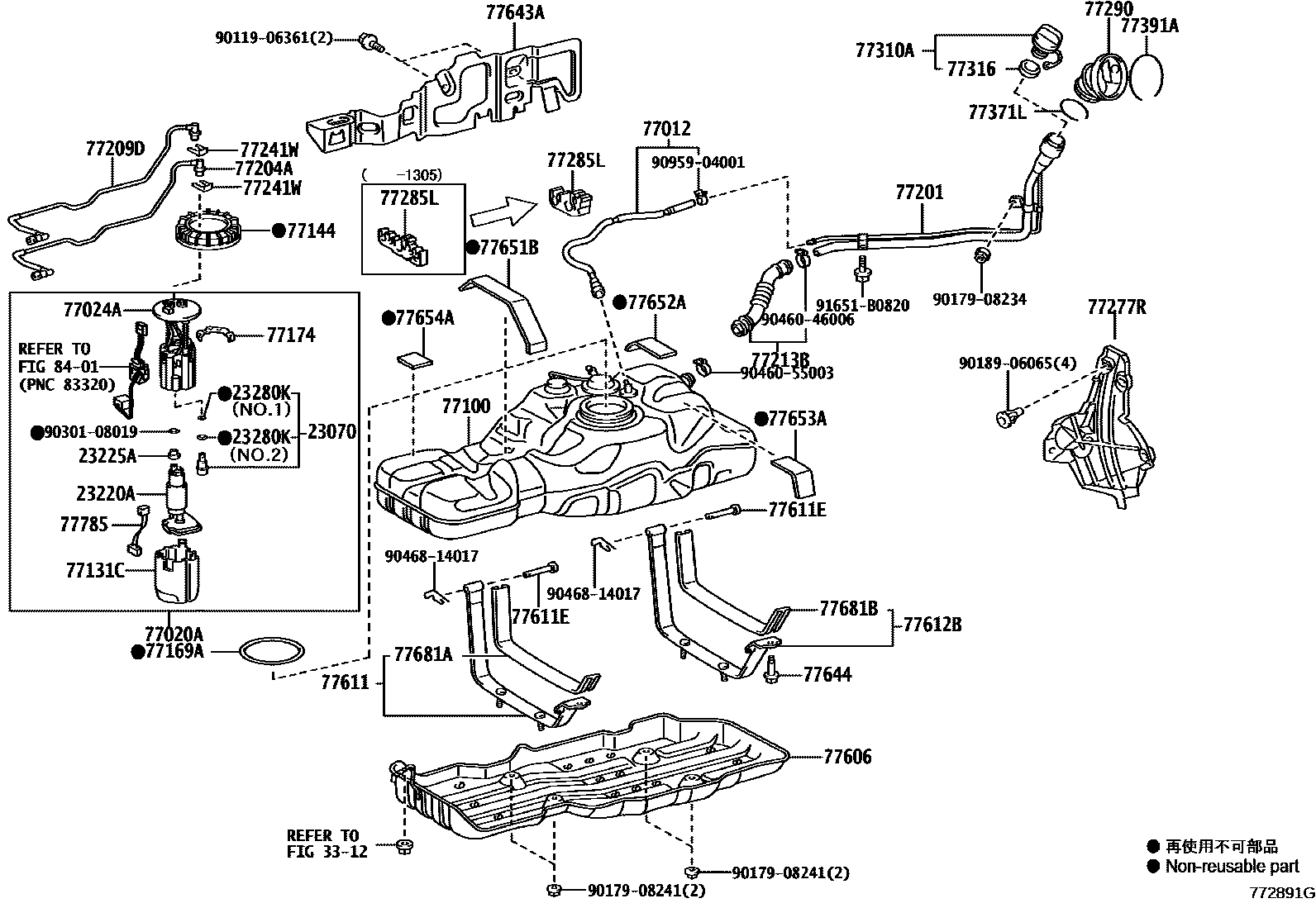

FUEL TANK & TUBE
23070VALVE ASSY, FUEL MAIN
23220APUMP ASSY, FUEL W/FILTER
23225ASPACER, FUEL PUMP
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
3312SHIFT LEVER & RETAINER
77012TUBE SUB-ASSY, FUEL TANK BREATHER
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024APLATE SUB-ASSY, FUEL SUCTION
77100TANK ASSY, FUEL
77131CSUB-TANK, FUEL, NO.1
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77201PIPE SUB-ASSY, FUEL TANK INLET
77204ATUBE, FUEL TANK RETURN
77209DTUBE SUB-ASSY, FUEL TANK MAIN
77213BHOSE, FUEL TANK TO FILLER PIPE
77241WCLIP, TUBE JOINT
77277RPROTECTOR, FUEL TANK FILLER PIPE
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77371LRING, FUEL TANK FILLER PIPE SHIELD
77391ARING, FUEL INLET BOX
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77611BAND, FUEL TANK
77611EPIN, FUEL TANK BAND
77612BBAND, FUEL TANK, NO.2
77643APROTECTOR, FUEL TANK, NO.3
77644BOLT, FUEL TANK
77651BCUSHION, FUEL TANK
77652ACUSHION, FUEL TANK, NO.2
77653ACUSHION, FUEL TANK, NO.3
77654ACUSHION, FUEL TANK, NO.4
77681ASEAT, FUEL TANK BAND
77681BSEAT, FUEL TANK BAND
77785HARNESS, FUEL PUMP
8401SWITCH & RELAY & COMPUTER
9011906361
main90119-06361
9017908234
main90179-08234
9017908241
main90179-08241
9018906065
main90189-06065
9030108019
main90301-08019
9046046006
main90460-46006
9046055003
main90460-55003
9046814017
main90468-14017
9095904001
main90959-04001
91651B0820
main91651-B0820
49 parts on this diagram · 3 diagrams in section
