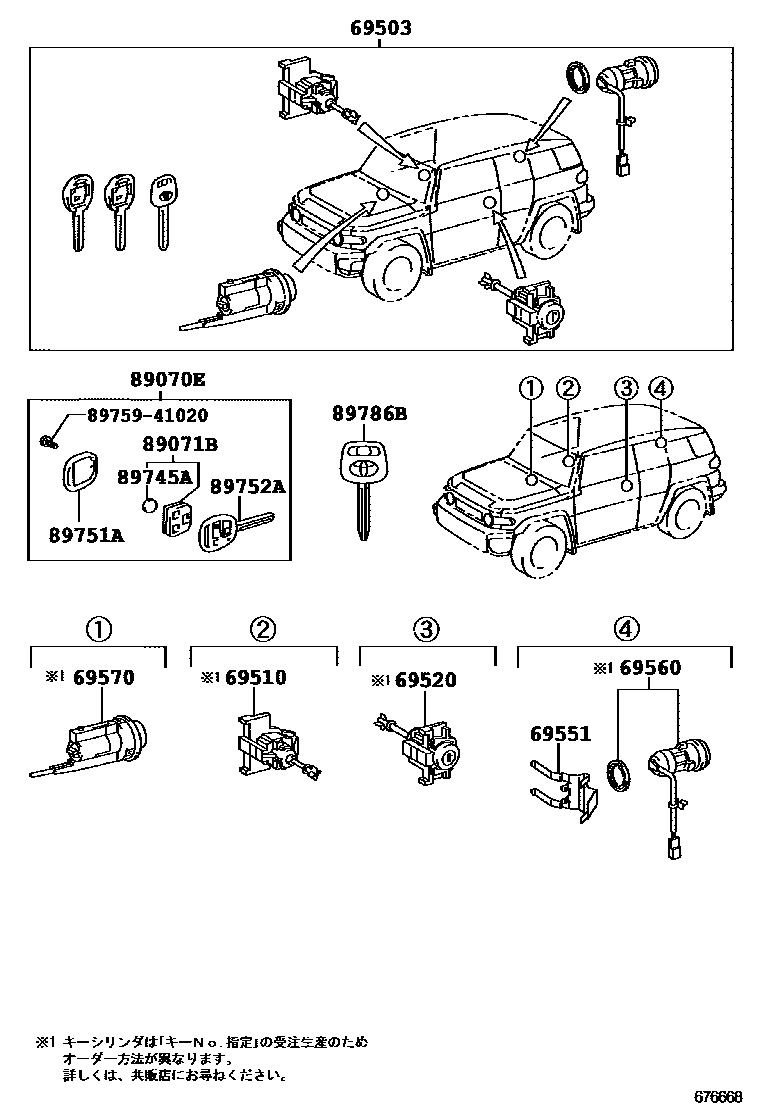

LOCK CYLINDER SET
69503CYLINDER SET, LOCK
69510CYLINDER ASSY, FRONT DOOR LOCK, RH
69520CYLINDER ASSY, FRONT DOOR LOCK, LH
69551RETAINER, BACK DOOR LOCK CYLINDER
69560CYLINDER ASSY, BACK DOOR LOCK
69570CYLINDER ASSY, IGNITION SWITCH LOCK
89070ETRANSMITTER ASSY, DOOR CONTROL
89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89745ABATTERY, TRANSMITTER
89751ACOVER, TRANSMITTER HOUSING
89752ACASE, TRANSMITTER HOUSING
89786BTRANSMITTER, TRANSPONDER KEY SUB
8975941020SCREW, DOOR CONTROL TRANSMITTER
main89759-41020
13 parts on this diagram · 1 diagram in section
