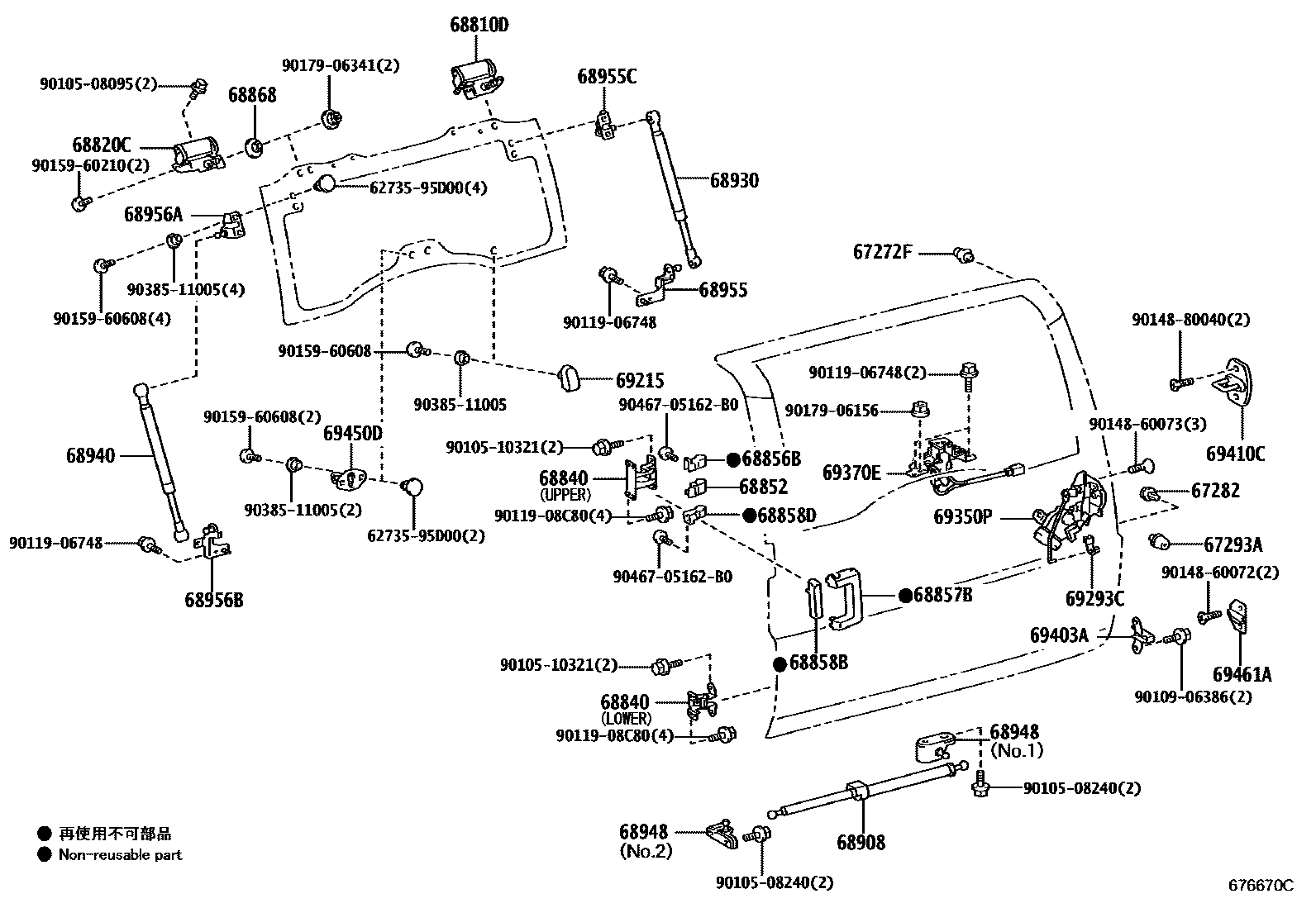

BACK DOOR LOCK & HINGE

67272FCUSHION, BACK DOOR STOPPER, NO.2

main90541-10038iGSJ15201011-201801

67282STOPPER, BACK DOOR, NO.1

main67282-46010iGSJ15201011-201801

67293ACUSHION, BACK DOOR STOPPER

main67293-60030iGSJ15201011-201801

68810DHINGE ASSY, BACK DOOR, RH

main68810-35020iGSJ15201011-201801

68820CHINGE ASSY, BACK DOOR, LH

main68820-35020iGSJ15201011-201801

68840HINGE ASSY, BACK DOOR, LH

main68801-35010iGSJ15201011-201512

main68801-35011iGSJ15201601-201801

main68801-60050iGSJ15201011-201403

main68801-60051iGSJ15201404-201512

main68801-60052iGSJ15201601-201801

68852COVER, BACK DOOR HINGE

main68852-35011iGSJ15201011-201801

68856BCOVER, BACK DOOR UPPER HINGE FEMALE, NO.1 LH

main68856-35011iGSJ15201011-201801

68857BPROTECTOR, BACK DOOR HINGE, RH

main68857-35010iGSJ15201011-201801

68858BPROTECTOR, BACK DOOR HINGE, LH

main68858-35020iGSJ15201011-201101

main68858-35021iGSJ15201102-201801

68858DCOVER, BACK DOOR UPPER HINGE FEMALE, NO.2 LH

main68858-35011iGSJ15201011-201801

68868SEAL, BACK DOOR HINGE

main68868-32010×2iGSJ15201011-201801

68908STAY SUB-ASSY, BACK DOOR DAMPER, LH

main68907-35080iGSJ15201011-201112

main68907-35081iGSJ15201201-201801

68930STAY ASSY, BACK WINDOW, RH

main68930-35011iGSJ15201011-201112

main68930-35012iGSJ15201201-201801

68940STAY ASSY, BACK WINDOW, LH

main68930-35011iGSJ15201011-201112

main68930-35012iGSJ15201201-201801

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-35010iGSJ15201011-201801

main68948-35021iGSJ15201011-201801

68955BRACKET, BACK DOOR STAY

main61655-35040iGSJ15201011-201801

68955CBRACKET, BACK WINDOW STAY, UPPER RH

main61655-35031iGSJ15201011-201801

68956ABRACKET, BACK WINDOW STAY, UPPER LH

main61656-35020iGSJ15201011-201801

68956BBRACKET, BACK DOOR STAY, UPPER LH

main61656-35010iGSJ15201011-201801

69215HANDLE, BACK DOOR OUTSIDE

main69209-35010iGSJ15201011-201107

main69209-35011iGSJ15201108-201801

69293CSNAP, BACK DOOR HANDLE

main69293-12030iGSJ15201011-201801

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69110-35070iGSJ15201011-201512

main69110-35071iGSJ15201601-201801

69370ELOCK ASSY, BACK WINDOW

main69370-35020iGSJ15201011-201801

69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH

main69403-35010iGSJ15201607-201801

main69403-60011iGSJ15201011-201606

69410CPLATE ASSY, BACK DOOR LOCK STRIKER

main69410-60020iGSJ15201011-201801

69450DSTRIKER ASSY, BACK WINDOW LOCK

main69450-35010iGSJ15201011-201801

69461ASTOPPER, BACK DOOR SIDE MALE

main69461-60010iGSJ15201011-201801

6273595D00RETAINER, QUARTER WINDOW HINGE

main62735-95D00

9010508095

main90105-08095

9010508240

main90105-08240

9010510321

main90105-10321

9010906386

main90109-06386

9011906748

main90119-06748

9011908C80

main90119-08C80

9014860072

main90148-60072

9014860073

main90148-60073

9014880040

main90148-80040

9015960210

main90159-60210

9015960608

main90159-60608

9017906156

main90179-06156

9017906341

main90179-06341

9038511005

main90385-11005

9046705162B0

main90467-05162B0

44 parts on this diagram · 1 diagram in section
