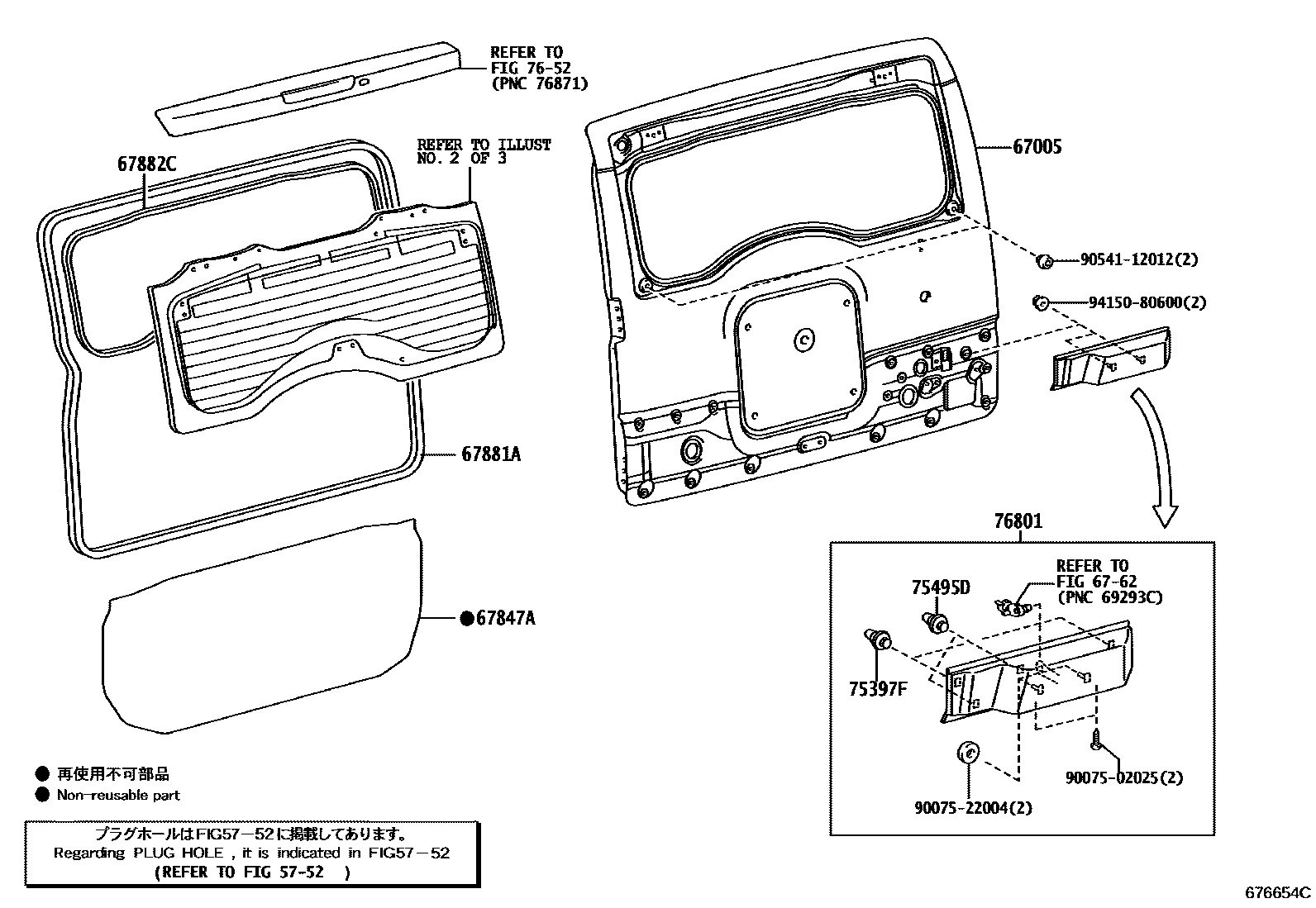

BACK DOOR PANEL & GLASS

0001 1������� 0002 1������� 0003 1������

5752HOLE PLUG

→ Go to FIG 57-52

67005PANEL SUB-ASSY, BACK DOOR

main67005-35361supersedes 67005-35372iGSJ15201011-201108

main67005-35400supersedes 67005-35372iGSJ15201108-201801

6762BACK DOOR LOCK & HINGE

→ Go to FIG 67-62

67847ACOVER, BACK DOOR SERVICE HOLE

main67847-35030iGSJ15201011-201801

67881AWEATHERSTRIP, BACK DOOR

main67881-35050iGSJ15201011-201204

main67881-35051iGSJ15201205-201801

67882CWEATHERSTRIP, BACK DOOR, NO.2

main67882-35011iGSJ15201011-201203

main67882-35012iGSJ15201204-201801

75397FCLIP, OUTSIDE MOULDING, NO.3

main75397-35010×2iGSJ15201011-201801

75495DCLIP, OUTSIDE MOULDING, NO.4

main75495-35010×2iGSJ15201011-201801

7652SPOILER & SIDE MUDGUARD

→ Go to FIG 76-52

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-35490iGSJ15201011-201405

main76801-35491iGSJ15201406-201407

main76801-35492iGSJ15201408-201801

9007502025

main90075-02025

9007522004

main90075-22004

9054112012

main90541-12012

9415080600

main94150-80600

14 parts on this diagram · 3 diagrams in section
