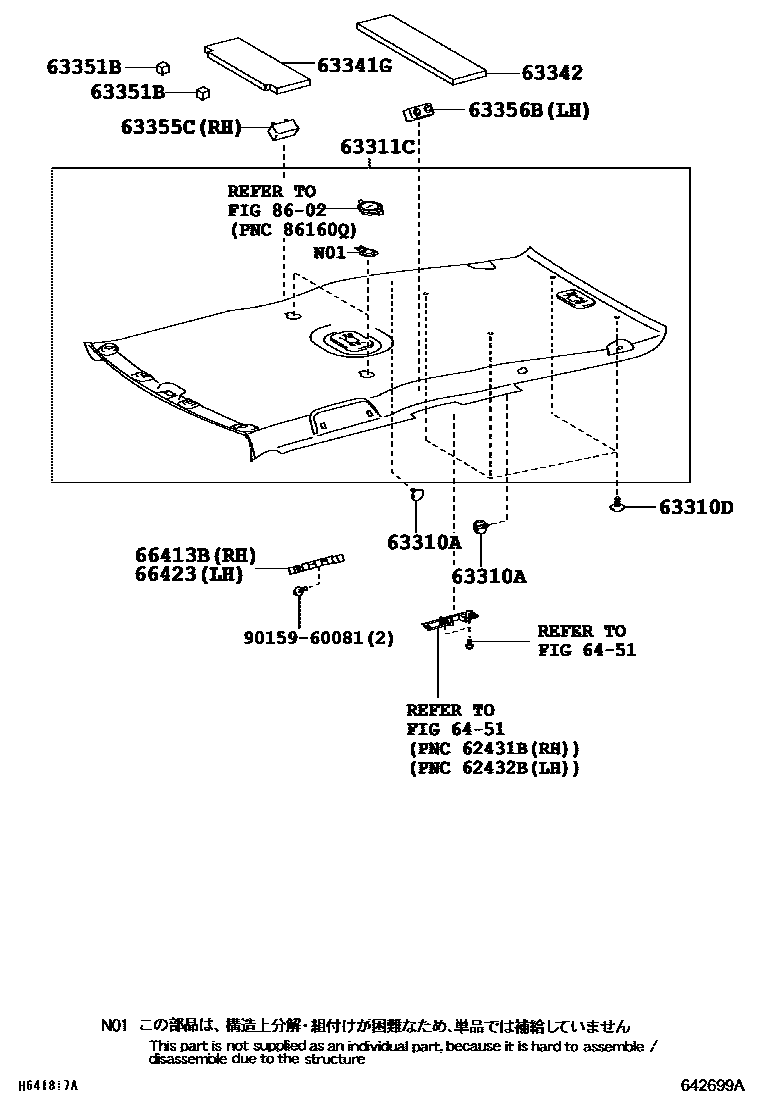

ROOF HEADLINING & SILENCER PAD

63310APLUG, HOLE(FOR ROOF HEADLINING ASSY)

main74618-35021-B1×2iGSJ15201011-201801

LT.GRAY,TRIM1#

63310DCLIP, ROOF HEADLINING

main90467-05164-B0×4iGSJ15201011-201801

LT.GRAY,TRIM1#

63311CHEADLINING, ROOF

main63311-35411-B0iGSJ15201011-201801

LT.GRAY,TRIM1#

main63311-35460-B0iGSJ15201208-201801

63341GPAD, ROOF SILENCER

main63341-35150iGSJ15201011-201801

63342PAD, ROOF SILENCER, NO.2

main63341-35140iGSJ15201011-201801

63351BPAD, ROOF HEADLINING

main63351-35060×2iGSJ15201011-201801

63355CPAD, ROOF HEADLINING, RH

main63355-35060iGSJ15201011-201801

63356BPAD, ROOF HEADLINING, LH

main63355-35060iGSJ15201011-201801

6451INSIDE TRIM BOARD

→ Go to FIG 64-51

66413BSPACER, SIDE RAIL, FRONT RH

main66413-35040iGSJ15201011-201801

66423SPACER, SIDE RAIL, FRONT LH

main66423-35040iGSJ15201011-201801

8602SPEAKER

→ Go to FIG 86-02

9015960081

main90159-60081

13 parts on this diagram · 1 diagram in section
