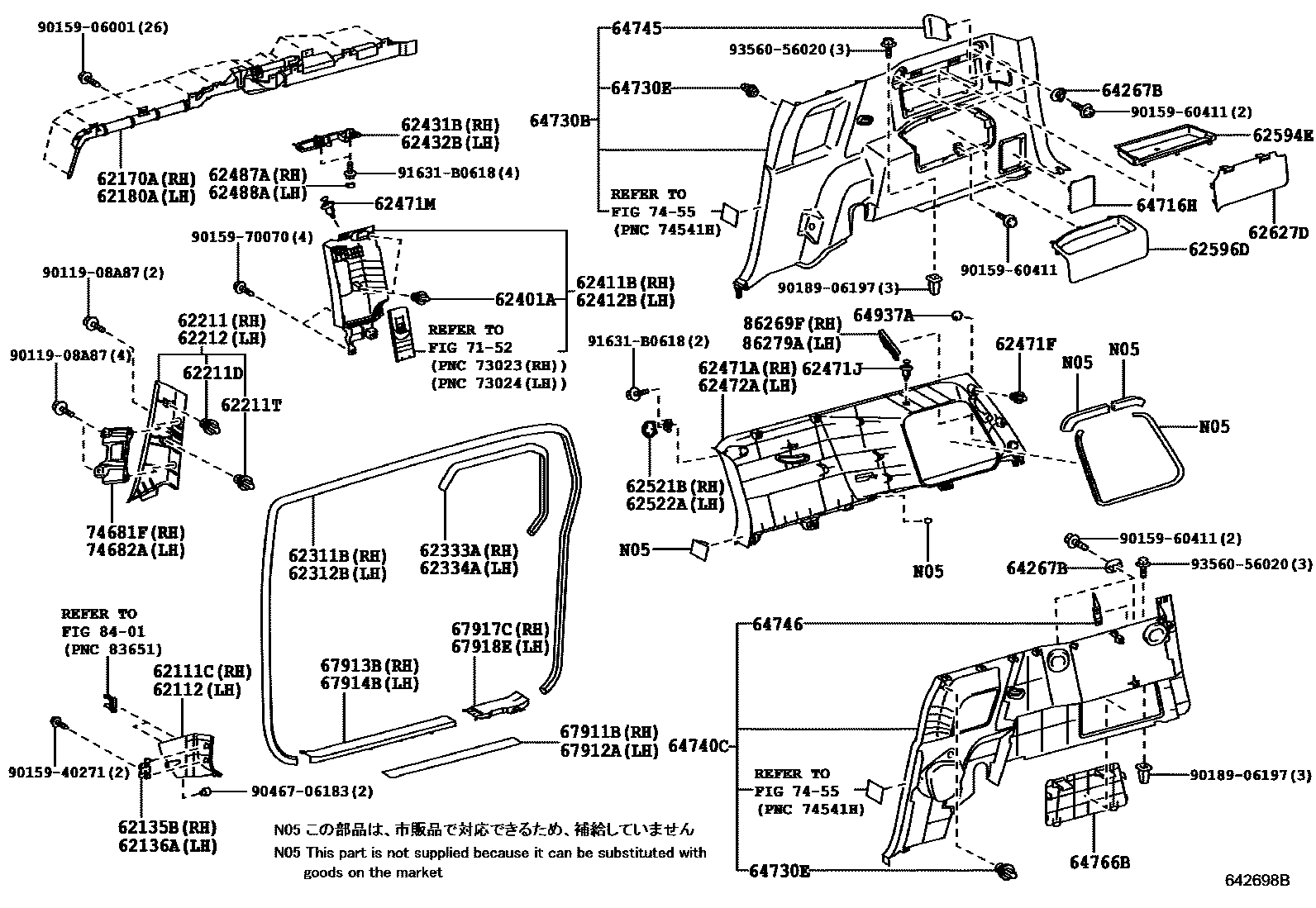

INSIDE TRIM BOARD

62111CBOARD, COWL SIDE TRIM, RH

main62111-35070-B0iGSJ15201011-201801

DK.GRAY,TRIM1#

62112BOARD, COWL SIDE TRIM, LH

main62112-35080-B0iGSJ15201011-201801

DK.GRAY,TRIM1#

62135BRETAINER, COWL SIDE CARPET, RH

main62135-60010iGSJ15201011-201801

62136ARETAINER, COWL SIDE CARPET, LH

main62136-60010iGSJ15201011-201801

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-35033iGSJ15201011-201801

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-35033iGSJ15201011-201801

62211GARNISH, FRONT PILLAR, RH

main62211-35100-B0iGSJ15201011-201801

LT.GRAY,TRIM1#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90467-10161×2iGSJ15201011-201801

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10167×2iGSJ15201011-201801

62212GARNISH, FRONT PILLAR, LH

main62212-35100-B0iGSJ15201011-201801

LT.GRAY,TRIM1#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-35040iGSJ15201011-201801

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-35030iGSJ15201011-201801

62333ATRIM, REAR DOOR OPENING, RH

main62334-35020iGSJ15201011-201801

62334ATRIM, REAR DOOR OPENING, LH

main62334-35020iGSJ15201011-201801

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main90467-10161×4iGSJ15201011-201801

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-35042-B0iGSJ15201011-201306

LT.GRAY,TRIM1#

main62411-35043-B0iGSJ15201307-201512

LT.GRAY,TRIM1#

main62411-35044-B0iGSJ15201601-201801

LT.GRAY,TRIM1#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-35042-B0iGSJ15201011-201306

LT.GRAY,TRIM1#

main62412-35043-B0iGSJ15201307-201512

LT.GRAY,TRIM1#

main62412-35044-B0iGSJ15201601-201801

LT.GRAY,TRIM1#

62431BGARNISH, ROOF SIDE RAIL, NO.1 RH

main62431-35010-B0iGSJ15201011-201801

LT.GRAY,TRIM1#

62432BGARNISH, ROOF SIDE RAIL, NO.1 LH

main62432-35010-B0iGSJ15201011-201801

LT.GRAY,TRIM1#

62471AGARNISH, ROOF SIDE, INNER RH

main62471-35051-B0iGSJ15201011-201801

LT.GRAY,TRIM1#

62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)

main90467-10161×16iGSJ15201011-201801

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-07076-P1×2iGSJ15201011-201801

LT.GRAY,TRIM1#

62471MCLIP

main67771-35030-B0×2iGSJ15201011-201801

LT.GRAY,TRIM1#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-35031-B0iGSJ15201011-201801

LT.GRAY,TRIM1#

62487ACOVER, ROOF SIDE INNER GARNISH, RH

main62487-35010-B0×2iGSJ15201011-201801

LT.GRAY,TRIM1#

62488ACOVER, ROOF SIDE INNER GARNISH, LH

main62487-35010-B0×2iGSJ15201011-201801

LT.GRAY,TRIM1#

62521BCOVER, QUARTER TRIM, RH

main62521-35070-B0iGSJ15201011-201801

LT.GRAY,TRIM1#

62522ACOVER, QUARTER TRIM, LH

main62522-35070-B0iGSJ15201011-201801

LT.GRAY,TRIM1#

62594EPOCKET, QUARTER TRIM, RH

main62594-35030-B0iGSJ15201011-201801

DK.GRAY,TRIM1#

62596DTRAY, QUARTER TRIM POCKET

main62596-35010-B0iGSJ15201011-201801

DK.GRAY,TRIM1#

62627DCOVER, SIDE TRIM, RH

main62627-35010-B0iGSJ15201011-201801

DK.GRAY,TRIM1#

64267BHOOK, PACKAGE HOLDER NET

main64267-35020-B0×4iGSJ15201011-201801

DK.GRAY,TRIM1#

64716HCOVER, DECK TRIM, REAR

main64716-35020-B0iGSJ15201011-201801

DK.GRAY,TRIM1#

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-35121-B0iGSJ15201011-201801

DK.GRAY,TRIM1#

64730ECLIP(FOR DECK TRIM SIDE BOARD)

main90467-10161×12iGSJ15201011-201801

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-35091-B0iGSJ15201011-201801

DK.GRAY,TRIM1#

64745COVER, REAR COMBINATION LAMP SERVICE, RH

main64745-35020-B0iGSJ15201011-201801

DK.GRAY,TRIM1#

64746COVER, REAR COMBINATION LAMP SERVICE, LH

main64746-35020-B0iGSJ15201011-201801

DK.GRAY,TRIM1#

64766BCOVER, QUARTER TRIM JACK

main64766-35020-B0iGSJ15201011-201801

DK.GRAY,TRIM1#

64937ACAP, TONNEAU COVER HOLDER, NO.1

main64937-48020-B0×2iGSJ15201011-201801

LT.GRAY,TRIM1#

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-35010iGSJ15201011-201801

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-35010iGSJ15201011-201801

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-35041-B0iGSJ15201011-201306

DK.GRAY,TRIM1#

main67913-35042-B0iGSJ15201307-201801

DK.GRAY,TRIM1#

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-35041-B0iGSJ15201011-201306

DK.GRAY,TRIM1#

main67914-35042-B0iGSJ15201307-201801

DK.GRAY,TRIM1#

67917CPLATE, REAR DOOR SCUFF, RH

main67917-35031-B0iGSJ15201011-201306

DK.GRAY,TRIM1#

main67917-35032-B0iGSJ15201307-201801

DK.GRAY,TRIM1#

67918EPLATE, REAR DOOR SCUFF, LH

main67918-35031-B0iGSJ15201011-201306

DK.GRAY,TRIM1#

main67918-35032-B0iGSJ15201307-201801

DK.GRAY,TRIM1#

7152SEAT BELT

→ Go to FIG 71-52

7455CAUTION PLATE

→ Go to FIG 74-55

74681FRETAINER, ASSIST GRIP, RH

main74681-35010iGSJ15201011-201801

74682ARETAINER, ASSIST GRIP, LH

main74682-35010iGSJ15201011-201801

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86269FGRILLE, SPEAKER, RH

main86269-35020-B0iGSJ15201011-201801

LT.GRAY,TRIM1#

86279AGRILLE, SPEAKER, LH

main86279-35020-B0iGSJ15201011-201801

LT.GRAY,TRIM1#

9011908A87

main90119-08A87

9015906001

main90159-06001

9015940271

main90159-40271

9015960411

main90159-60411

9015970070

main90159-70070

9018906197

main90189-06197

9046706183

main90467-06183

91631B0618

main91631-B0618

9356056020

main93560-56020

62 parts on this diagram · 1 diagram in section
