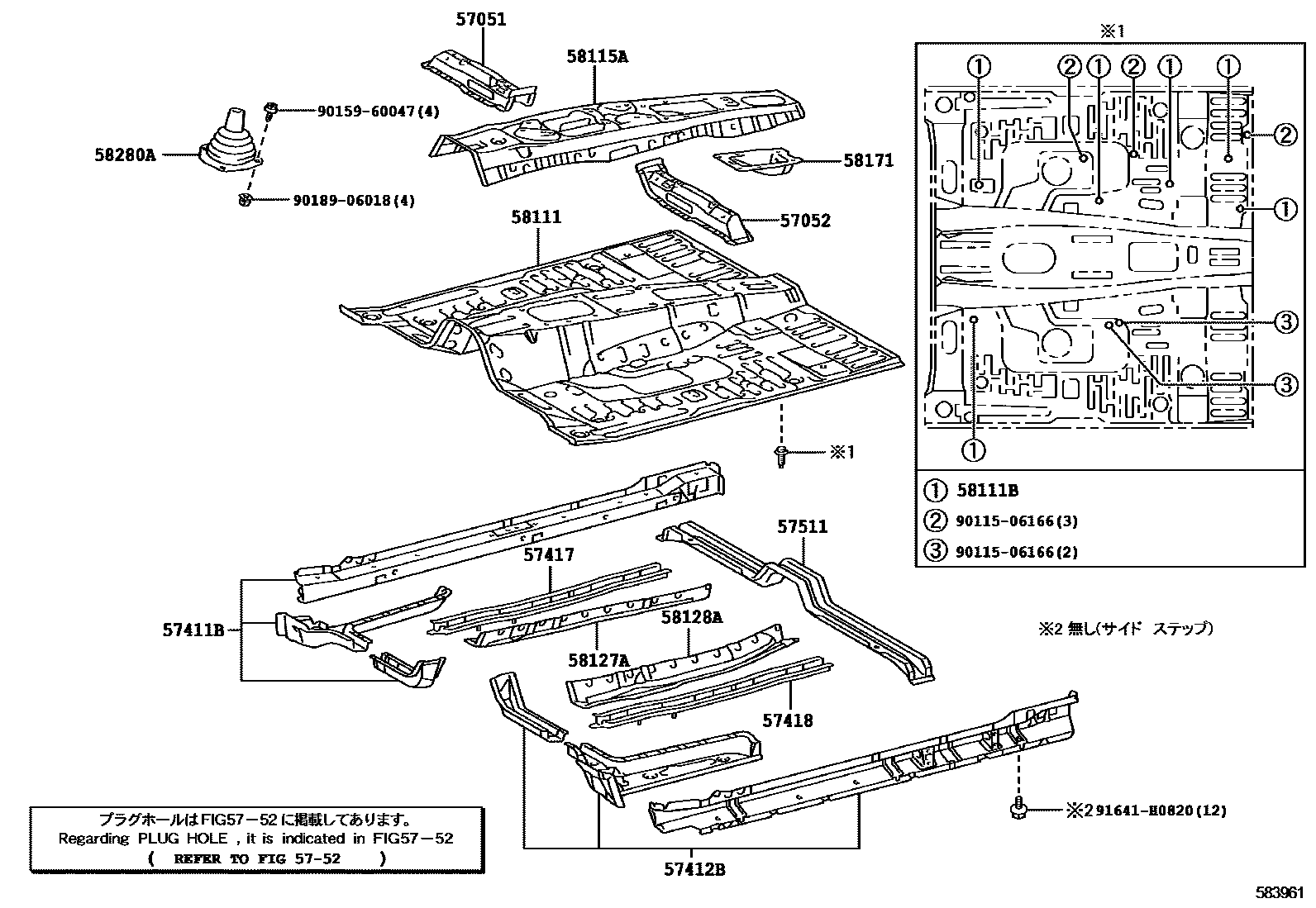

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1���� �����

57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-35051iGSJ15201011-201801

57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-35051iGSJ15201011-201801

57411BMEMBER, FLOOR SIDE, INNER RH

main57401-35908iGSJ15201011-201105

sub57401-35910

main57401-35910iGSJ15201105-201801

57412BMEMBER, FLOOR SIDE, INNER LH

main57402-35909iGSJ15201011-201105

sub57402-35910

main57402-35910iGSJ15201105-201801

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-35051iGSJ15201011-201801

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57417-35061iGSJ15201011-201801

57511REINFORCEMENT, FRONT FLOOR, CENTER

main57509-35010iGSJ15201011-201801

5752

58111PAN, FRONT FLOOR

main58111-35441iGSJ15201011-201801

58111BBOLT, WELD(FOR FRONT FLOOR PAN)

main90115-06166iGSJ15201011-201801

58115AREINFORCEMENT, FRONT FLOOR PANEL

main58115-60011iGSJ15201011-201801

58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH

main58127-35010iGSJ15201011-201801

58128AREINFORCEMENT, FRONT CROSS TO FRONT PANEL MEMBER, LH

main58128-35011iGSJ15201011-201801

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-60020iGSJ15201011-201801

58280ABOOT ASSY, SHIFT LEVER

main58280-35350iGSJ15201011-201801

9011506166

main90115-06166

9015960047

main90159-60047

9018906018

main90189-06018

91641H0820

main91641-H0820

19 parts on this diagram · 2 diagrams in section
