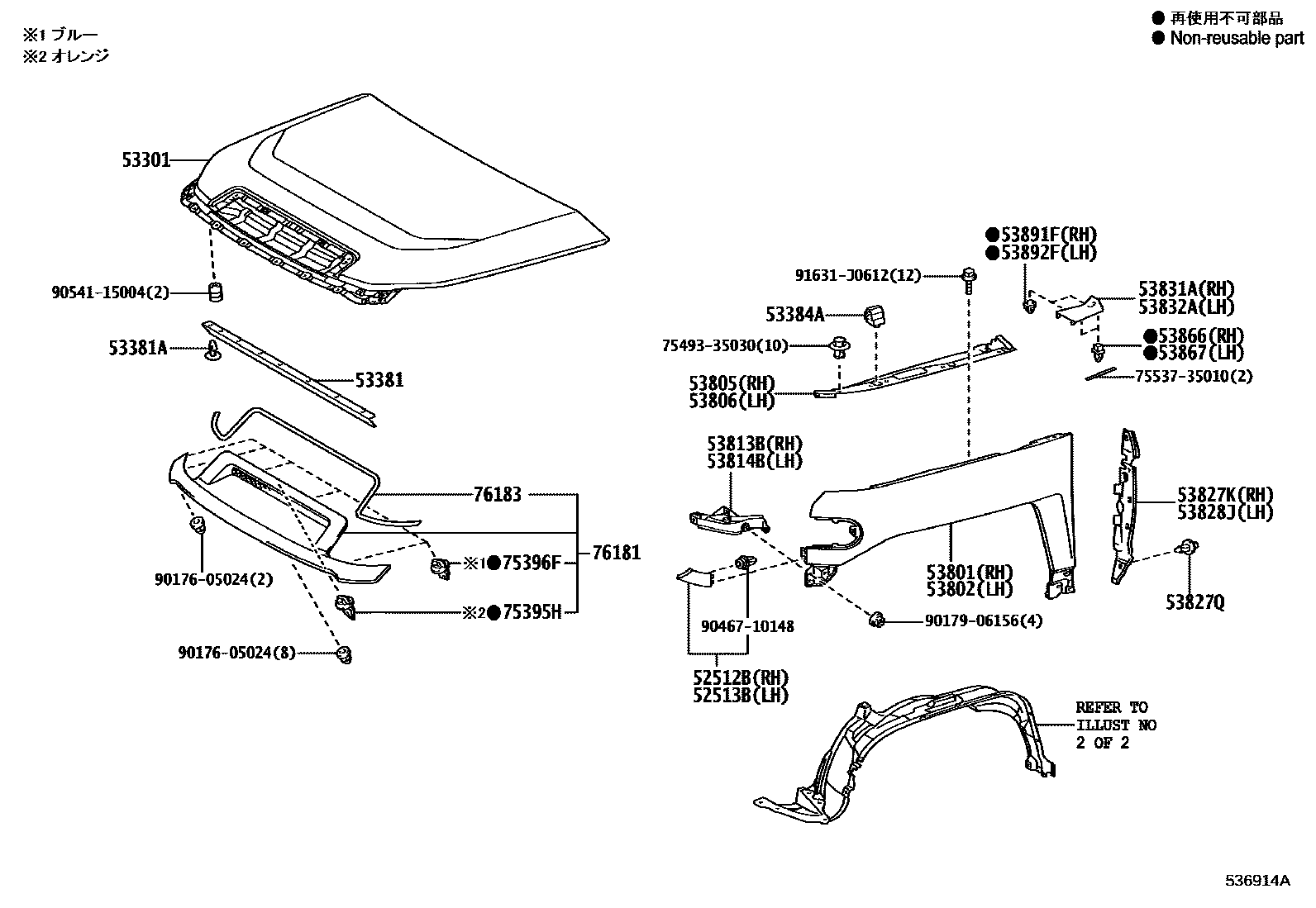

HOOD & FRONT FENDER
52512BFILLER, FRONT BUMPER, RH
WHITE,058
GRAY ME.,2KB
CEMENT GRAY ME.,2KY
BLACK,202 ,2KC
BRICK RED ME.,2JX
RED,3L5
BEIGE,2KP
ORANGE,2LF
YELLOW,2JU
DK.GREEN,2KD
BLUE,2JV
GRAYISH BLUE,2KQ
SMOKY BLUE,2LS
52513BFILLER, FRONT BUMPER, LH
WHITE,058
GRAY ME.,2KB
CEMENT GRAY ME.,2KY
BLACK,202 ,2KC
BRICK RED ME.,2JX
RED,3L5
BEIGE,2KP
ORANGE,2LF
YELLOW,2JU
DK.GREEN,2KD
BLUE,2JV
GRAYISH BLUE,2KQ
SMOKY BLUE,2LS
53301HOOD SUB-ASSY
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53384ABUMPER, FENDER TO HOOD
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53805SHIELD SUB-ASSY, FRONT FENDER SPLASH, RH
53806SHIELD SUB-ASSY, FRONT FENDER SPLASH, LH
53813BEXTENSION, FRONT FENDER, RH
53814BEXTENSION, FRONT FENDER, LH
53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH
53827QCLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.1
BLACK
BLACK
53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH
53831APANEL, FRONT FENDER SIDE, UPPER RH
53832APANEL, FRONT FENDER SIDE, UPPER LH
53866SEAL, FRONT FENDER TO COWL SIDE, RH
53867SEAL, FRONT FENDER TO COWL SIDE, LH
53891FPROTECTOR, FRONT FENDER LINER, RH
53892FPROTECTOR, FRONT FENDER LINER, LH
75395HCLIP, OUTSIDE MOULDING, NO.1
75396FCLIP, OUTSIDE MOULDING, NO.2
76181BULGE, HOOD
WHITE,058
GRAY ME.,2KB
CEMENT GRAY ME.,2KY
BLACK,202 ,2KC
BRICK RED ME.,2JX
RED,3L5
BEIGE,2KP
ORANGE,2LF
YELLOW,2JU
DK.GREEN,2KD
BLUE,2JV
GRAYISH BLUE,2KQ
SMOKY BLUE,2LS
76183PROTECTOR, HOOD BULGE, NO.1
7549335030RETAINER, OUTSIDE MOULDING, NO.4
main75493-35030
7553735010MOULDING, WINDSHIELD CORNER, LOWER RH
main75537-35010
9017605024
main90176-05024
9017906156
main90179-06156
9046710148
main90467-10148
9054115004
main90541-15004
91631J0612
main91631-J0612
32 parts on this diagram · 2 diagrams in section
