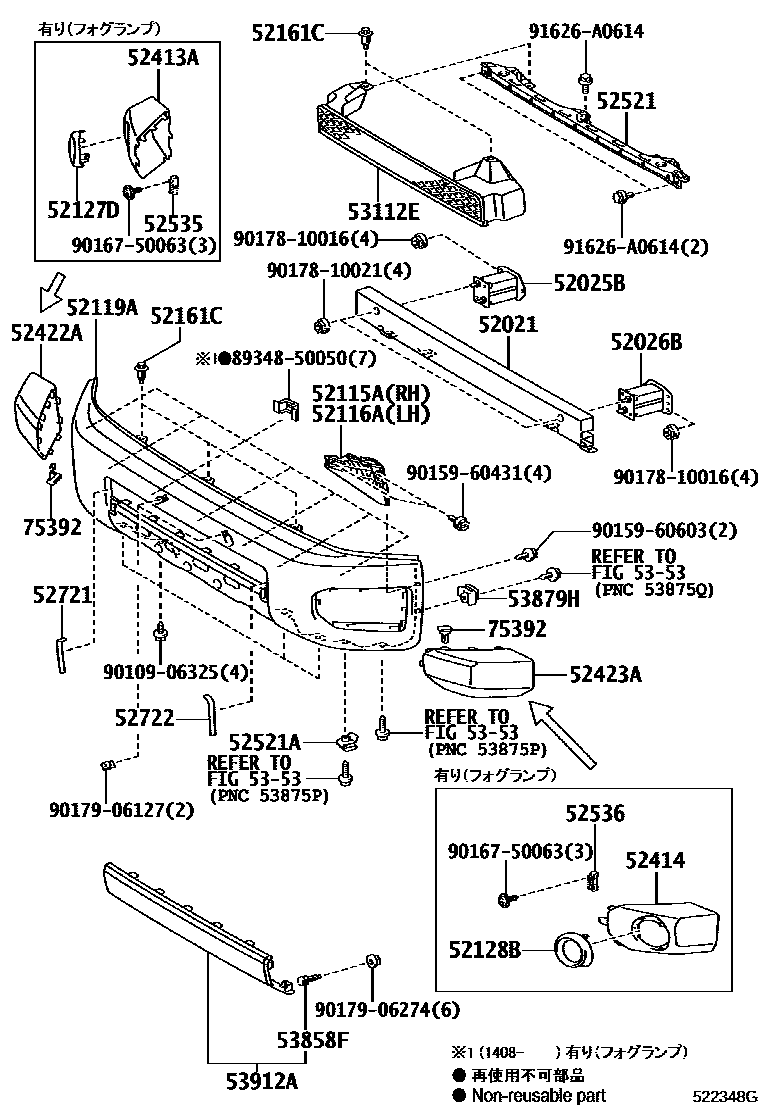

FRONT BUMPER & BUMPER STAY

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-35080iGSJ15201011-201801

52025BEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 RH

main52025-60010iGSJ15201011-201307

main52025-60011iGSJ15201308-201801

52026BEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 LH

main52026-60010iGSJ15201011-201307

main52026-60011iGSJ15201308-201801

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-35120iGSJ15201011-201801

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-35110iGSJ15201011-201801

52119ACOVER, FRONT BUMPER

main52119-35081supersedes 52119-35170iGSJ15201011-201408

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-35150supersedes 52127-35140iGSJ15201408-201801

52128BCOVER, FRONT BUMPER HOLE, LH

main52128-35140supersedes 52128-35130iGSJ15201408-201801

52161CPIECE, FRONT BUMPER

main52161-16010×5iGSJ15201011-201801

52413APAD, FRONT BUMPER GUARD, RH

main52413-35050supersedes 52413-35040iGSJ15201408-201801

52414PAD, FRONT BUMPER GUARD, LH

main52414-35040supersedes 52414-35030iGSJ15201408-201801

52422APAD, FRONT BUMPER, RH

main52422-35030iGSJ15201408-201801

main52422-35060iGSJ15201112-201408

52423APAD, FRONT BUMPER, LH

main52423-35020iGSJ15201408-201801

main52423-35050iGSJ15201112-201408

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-35030iGSJ15201011-201801

52521ACLIP(FOR FRONT BUMPER RETAINER)

main90467-05138×2iGSJ15201011-201801

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-35010iGSJ15201408-201801

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-35010iGSJ15201408-201801

52721MOULDING, FRONT BUMPER EXTENSION, RH

main52721-35010supersedes 52721-35011iGSJ15201112-201201

52722MOULDING, FRONT BUMPER EXTENSION, LH

main52722-35010supersedes 52722-35011iGSJ15201112-201201

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-35030iGSJ15201011-201801

5353HOOD & FRONT FENDER

→ Go to FIG 53-53

53858FBOLT, WHEEL OPENING SET

main53858-60050×6iGSJ15201011-201801

53879HRETAINER, FRONT FENDER LINER

main53879-58010×2iGSJ15201011-201801

53912APANEL, FRONT VALANCE, LOWER

main53901-35230supersedes 53901-35180iGSJ15201112-201801

75392RETAINER, OUTSIDE MOULDING

main75392-35220×12iGSJ15201011-201801

8934850050RETAINER, ULTRASONIC SENSOR, NO.1

main89348-50050

9010906325

main90109-06325

9015960431

main90159-60431

9015960603

main90159-60603

9016750063

main90167-50063

9017810016

main90178-10016

9017810021

main90178-10021

9017906127

main90179-06127

9017906274

main90179-06274

91626A0614

main91626-A0614

35 parts on this diagram · 1 diagram in section
