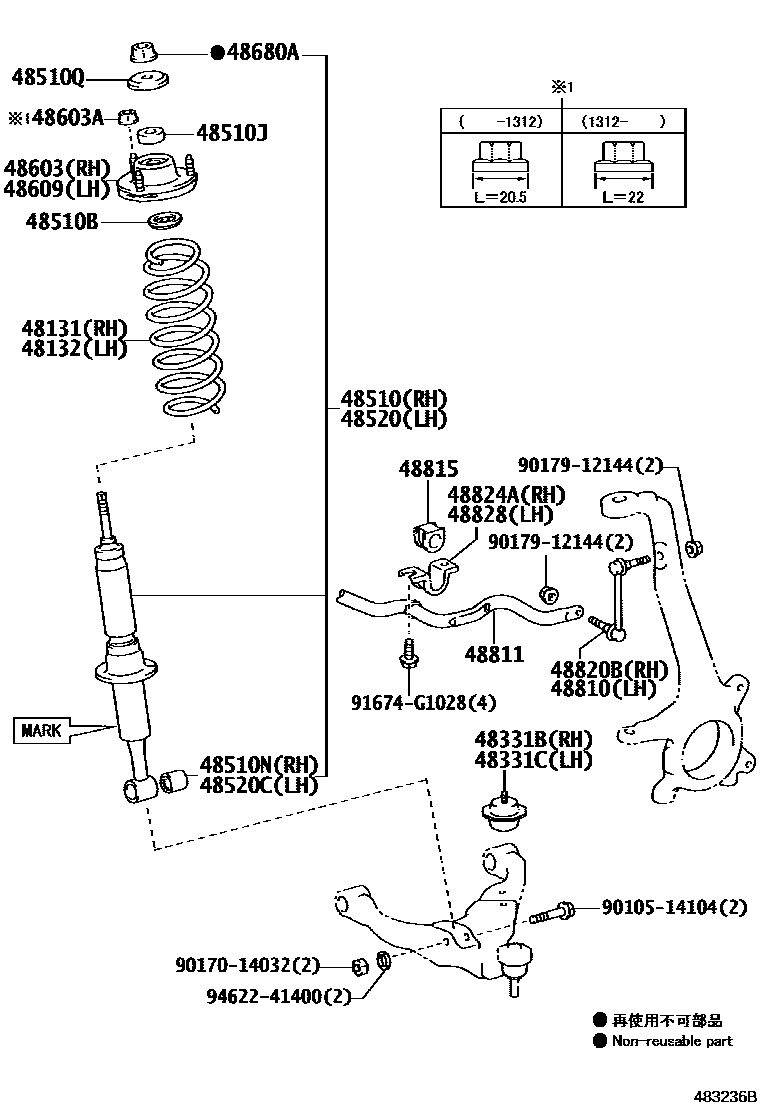

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1X-REAS

48131SPRING, FRONT COIL, RH

main48131-35660iGSJ15201011-201801

48132SPRING, FRONT COIL, LH

main48131-35670iGSJ15201011-201801

48331BBUMPER, FRONT SPRING, RH

main48304-60120iGSJ15201011-201801

48331CBUMPER, FRONT SPRING, LH

main48304-60120iGSJ15201011-201801

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80541supersedes 48510-80494iGSJ15201011-201801

main48510-8Z030supersedes 48510-80494iGSJ15201011-201801

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02205×2iGSJ15201011-201801

48510JCUSHION, FRONT SHOCK ABSORBER, NO.1

main90948-01100×2iGSJ15201011-201801

48510NBUSH(FOR FRONT SHOCK ABSORBER RH)

main48536-60010iGSJ15201011-201801

48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)

main90948-02161×2iGSJ15201011-201801

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-8Z030supersedes 48510-80494iGSJ15201011-201801

main48520-80264supersedes 48510-80494iGSJ15201011-201801

48520CBUSH(FOR FRONT SHOCK ABSORBER LH)

main48536-60010iGSJ15201011-201801

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-60100iGSJ15201011-201801

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10014×6iGSJ15201312-201801

main90178-10015×6iGSJ15201011-201312

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-60100iGSJ15201011-201801

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94184-01241×2iGSJ15201011-201801

48810LINK ASSY, FRONT STABILIZER, LH

main48810-60040iGSJ15201011-201801

48811BAR, STABILIZER, FRONT

main48811-60320iGSJ15201011-201801

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-60310×2iGSJ15201011-201105

main48815-60380×2iGSJ15201106-201801

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-60050iGSJ15201011-201801

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-60190iGSJ15201011-201801

48828BRACKET, FRONT STABILIZER, NO.2 LH

main48829-60120iGSJ15201011-201801

9010514104

main90105-14104

9017014032

main90170-14032

9017912144

main90179-12144

91674G1028

main91674-G1028

9462241400

main94622-41400

26 parts on this diagram · 2 diagrams in section
