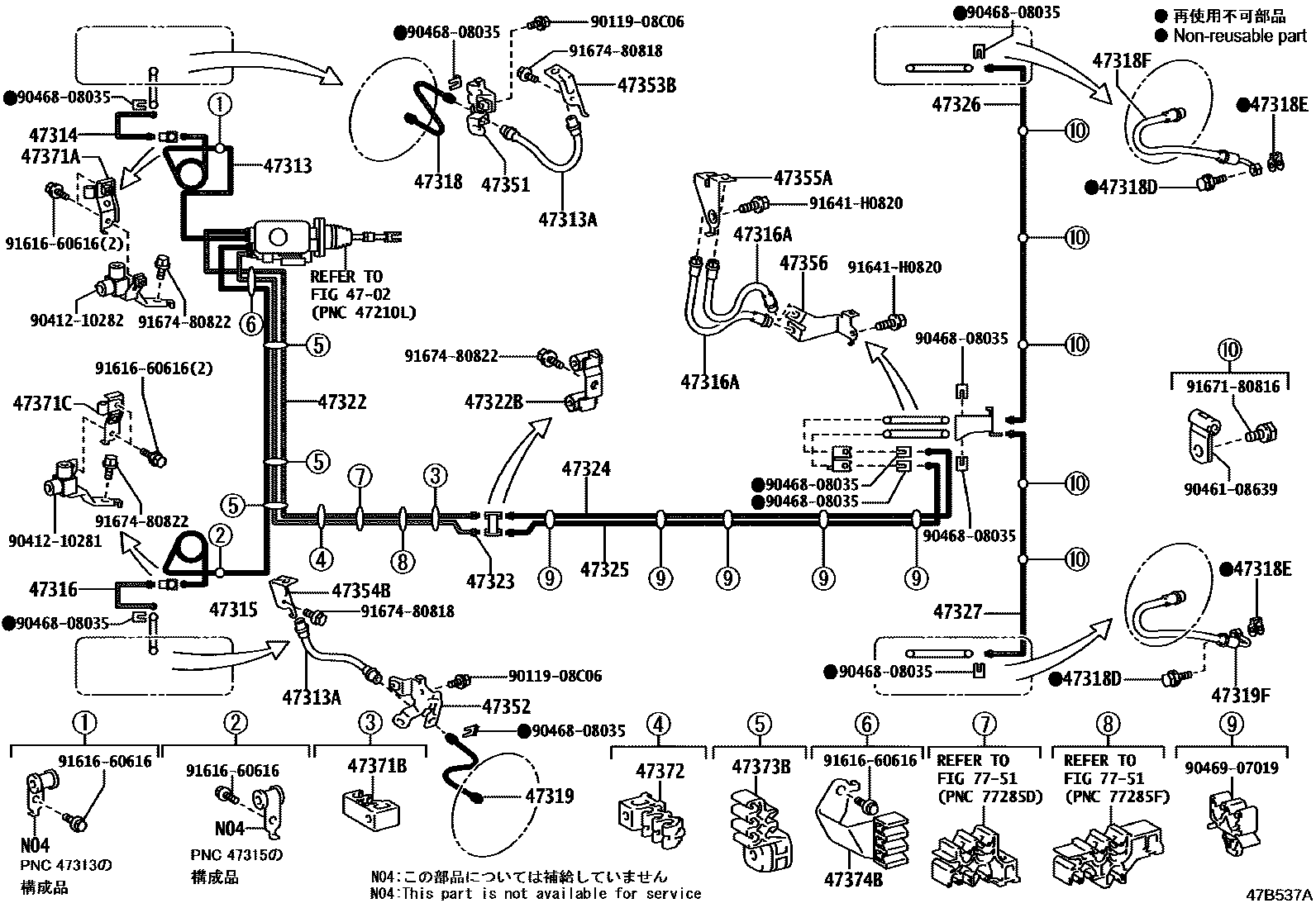

BRAKE TUBE & CLAMP

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47313TUBE, FRONT BRAKE, NO.3

main47313-60460iGSJ15201011-201505

main47313-60461iGSJ15201505-201801

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02G20×2iGSJ15201011-201708

main90947-02J01×2iGSJ15201708-201801

47314TUBE, FRONT BRAKE, NO.4

main47314-60300iGSJ15201011-201505

main47314-60301iGSJ15201505-201801

47315TUBE, FRONT BRAKE, NO.5

main47315-60550iGSJ15201011-201505

main47315-60551iGSJ15201505-201510

main47315-60680iGSJ15201510-201801

47316TUBE, FRONT BRAKE, NO.6

main47316-60630iGSJ15201011-201505

main47316-60631iGSJ15201505-201801

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02G18×2iGSJ15201011-201308

main90947-02H20×2iGSJ15201308-201801

47318TUBE, FRONT BRAKE, NO.8

main47314-60310iGSJ15201011-201506

main47314-60311iGSJ15201506-201708

main47314-60380iGSJ15201708-201801

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iGSJ15201011-201801

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020×2iGSJ15201011-201801

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02G15iGSJ15201011-201207

main90947-02H00iGSJ15201208-201307

main90947-02H17iGSJ15201308-201801

47319TUBE, FRONT BRAKE, NO.9

main47317-60130iGSJ15201011-201506

main47317-60131iGSJ15201506-201708

main47317-60210iGSJ15201708-201801

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02G16iGSJ15201011-201207

main90947-02H01iGSJ15201208-201307

main90947-02H18iGSJ15201308-201801

47322TUBE, REAR BRAKE, NO.2

main47322-60A80iGSJ15201011-201505

main47322-60A81iGSJ15201505-201510

main47322-60D50iGSJ15201510-201801

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90412-10283iGSJ15201011-201801

47323TUBE, REAR BRAKE, NO.3

main47323-60840iGSJ15201011-201505

main47323-60841iGSJ15201505-201510

main47323-60C40iGSJ15201510-201801

47324TUBE, REAR BRAKE, NO.4

main47324-35330iGSJ15201011-201308

main47324-35340iGSJ15201308-201801

47325TUBE, REAR BRAKE, NO.5

main47325-35410iGSJ15201011-201307

main47325-35420iGSJ15201308-201801

47326TUBE, REAR BRAKE, NO.6

main47326-60360iGSJ15201011-201307

main47326-60370iGSJ15201308-201505

main47326-60371iGSJ15201505-201801

47327TUBE, REAR BRAKE, NO.7

main47327-60210iGSJ15201011-201307

main47327-60230iGSJ15201308-201505

main47327-60231iGSJ15201505-201801

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-35350iGSJ15201011-201708

main47351-60350iGSJ15201708-201801

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-35390iGSJ15201011-201708

main47352-60210iGSJ15201708-201801

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47353-60150iGSJ15201011-201801

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47354-60140iGSJ15201011-201801

47355ABRACKET, FLEXIBLE HOSE, NO.5

main47355-35130iGSJ15201011-201308

main47355-60200iGSJ15201308-201801

47356BRACKET, FLEXIBLE HOSE, NO.6

main47356-35010iGSJ15201011-201308

main47356-60030iGSJ15201308-201701

main47356-60031iGSJ15201701-201801

47371ACLAMP, BRAKE TUBE, NO.1

main47371-60170iGSJ15201011-201801

47371BCLAMP, BRAKE TUBE, NO.6

main77299-32030iGSJ15201011-201801

47371CCLAMP, BRAKE TUBE, NO.7

main47371-60160iGSJ15201011-201801

47372CLAMP, BRAKE TUBE, NO.2

main90949-01C95iGSJ15201011-201801

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01E27×3iGSJ15201505-201801

main90949-04024×3iGSJ15201011-201505

47374BCLAMP, BRAKE TUBE, NO.4

main90949-04034iGSJ15201011-201505

main90949-04063iGSJ15201505-201801

7751FUEL TANK & TUBE

→ Go to FIG 77-51

9011908C06

main90119-08C06

9041210281

main90412-10281

9041210282

main90412-10282

9046108639

main90461-08639

9046808035

main90468-08035

9046907019

main90469-07019

9161660616

main91616-60616

91641H0820

main91641-H0820

9167180816

main91671-80816

9167480818

main91674-80818

9167480822

main91674-80822

44 parts on this diagram · 1 diagram in section
