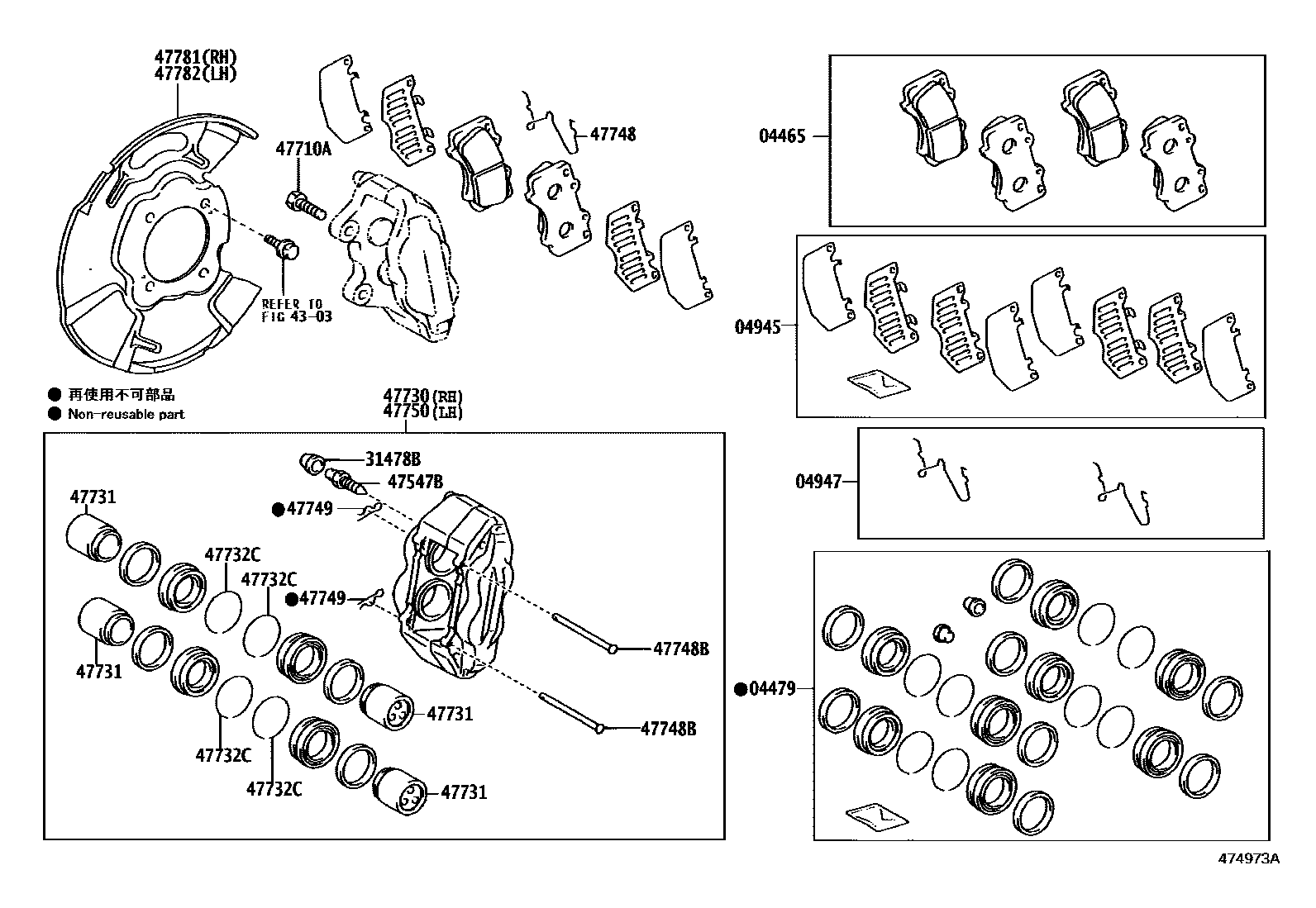

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-35290iGSJ15201011-201801

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-60050iGSJ15201011-201801

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-35120iGSJ15201011-201801

04947FITTING KIT, DISC BRAKE, FRONT

main04947-35050iGSJ15201011-201801

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iGSJ15201011-201801

4303FRONT AXLE HUB

→ Go to FIG 43-03

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-35020×2iGSJ15201011-201801

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12175×4iGSJ15201011-201505

main90105-14198×4iGSJ15201505-201801

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-35411iGSJ15201011-201505

main47730-35430iGSJ15201505-201801

47731PISTON, FRONT DISC BRAKE

main47731-35040×8iGSJ15201011-201406

main47731-35411×8iGSJ15201407-201801

47732CRING, SET, NO.2(FOR FRONT DISC BRAKE)

main90522-50003×8iGSJ15201011-201801

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-35010×2iGSJ15201011-201801

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90240-06158×4iGSJ15201011-201801

47749CLIP, PIN HOLD

main47749-35040×4iGSJ15201011-201801

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-35411iGSJ15201011-201505

main47750-35430iGSJ15201505-201801

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-35160iGSJ15201011-201801

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-35160iGSJ15201011-201801

17 parts on this diagram · 1 diagram in section
