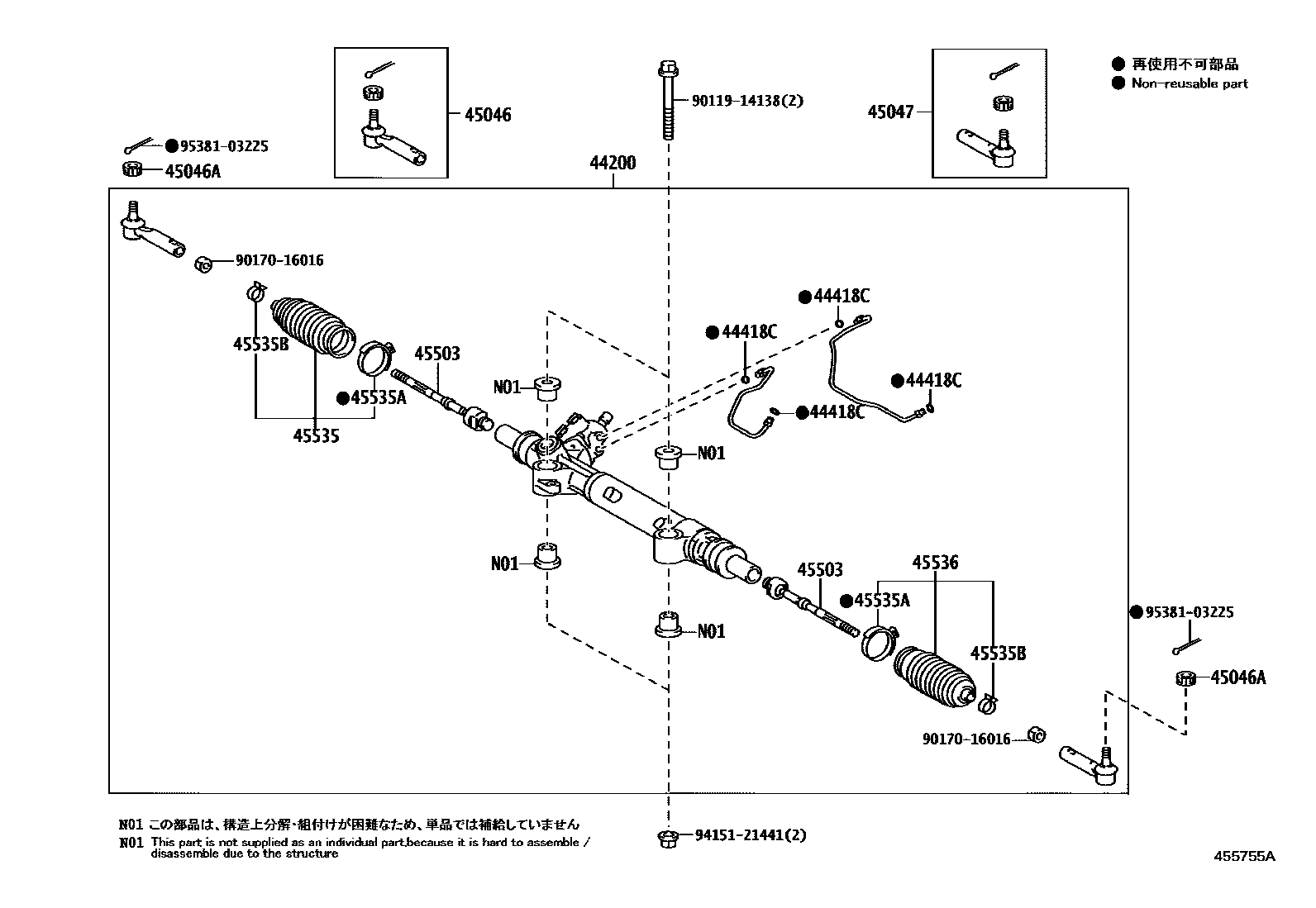

FRONT STEERING GEAR & LINK

44200LINK ASSY, POWER STEERING

main44200-35110iGSJ15201011-201302

main44200-35111iGSJ15201303-201402

main44200-35112iGSJ15201403-201505

main44200-35113iGSJ15201506-201801

44418CRING, O(FOR STEERING TURN PRESSURE TUBE)

main90301-03001×4iGSJ15201011-201801

45046END SUB-ASSY, TIE ROD, RH

main45046-69245iGSJ15201011-201801

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-14042×2iGSJ15201011-201801

45047END SUB-ASSY, TIE ROD, LH

main45046-69245iGSJ15201011-201801

45503END SUB-ASSY, STEERING RACK

main45503-35070×2iGSJ15201011-201801

45535BOOT, STEERING RACK, NO.1

main45535-69025iGSJ15201011-201801

45535ACLAMP(FOR STEERING RACK BOOT)

main90460-60008×2iGSJ15201011-201801

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021×2iGSJ15201011-201801

45536BOOT, STEERING RACK, NO.2

main45535-69015iGSJ15201011-201801

9011914138

main90119-14138

9017016016

main90170-16016

9415121441

main94151-21441

9538103225

main95381-03225

14 parts on this diagram · 1 diagram in section
