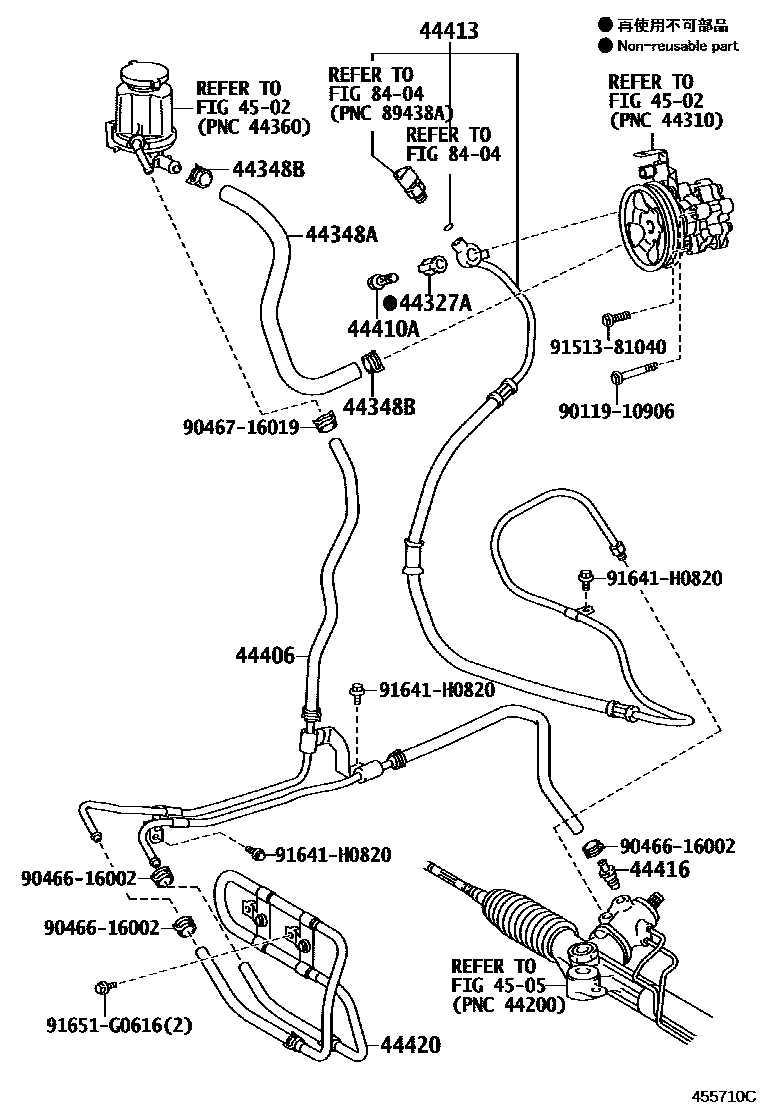

POWER STEERING TUBE

44327AGASKET, PRESSURE PORT, NO.1

main44327-30040iGSJ15201011-201801

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-60430iGSJ15201011-201801

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90467-21010×2iGSJ15201011-201801

44406TUBE SUB-ASSY, RETURN

main44406-35040iGSJ15201011-201801

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16034iGSJ15201011-201801

44413TUBE, PRESSURE FEED, NO.1

main44413-35030iGSJ15201011-201801

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-60450iGSJ15201011-201801

44420COOLER ASSY, OIL

main44420-35210iGSJ15201011-201801

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9011910906

main90119-10906

9046616002

main90466-16002

9046716019

main90467-16019

9151381040

main91513-81040

91641H0820

main91641-H0820

91651G0616

main91651-G0616

17 parts on this diagram · 1 diagram in section
