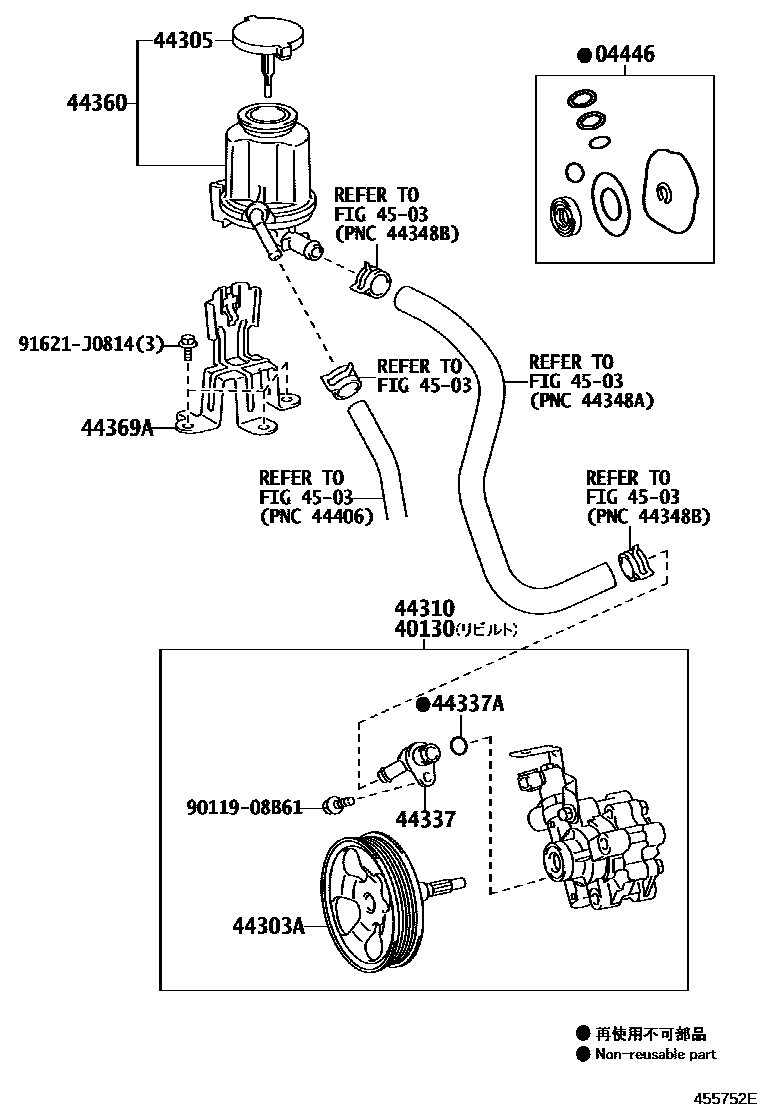

VANE PUMP & RESERVOIR (POWER STEERING)

04446GASKET KIT, POWER STEERING PUMP

main04446-35080iGSJ15201011-201801

40130PUMP ASSY,VANE REBUILT

main40130-35750iGSJ15201011-201801

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-60020iGSJ15201011-201801

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-28060iGSJ15201011-201207

main44305-28061iGSJ15201208-201801

44310PUMP ASSY, VANE

main44310-35750iGSJ15201011-201801

44337UNION, POWER STEERING SUCTION PORT

main44337-60230iGSJ15201011-201801

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-15025iGSJ15201011-201801

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-60320iGSJ15201011-201207

main44360-60321iGSJ15201208-201801

44369ABRACKET, OIL RESERVOIR, NO.1

main44369-60080iGSJ15201011-201801

4503POWER STEERING TUBE

→ Go to FIG 45-03

9011908B61

main90119-08B61

91621J0814

main91621-J0814

12 parts on this diagram · 1 diagram in section
