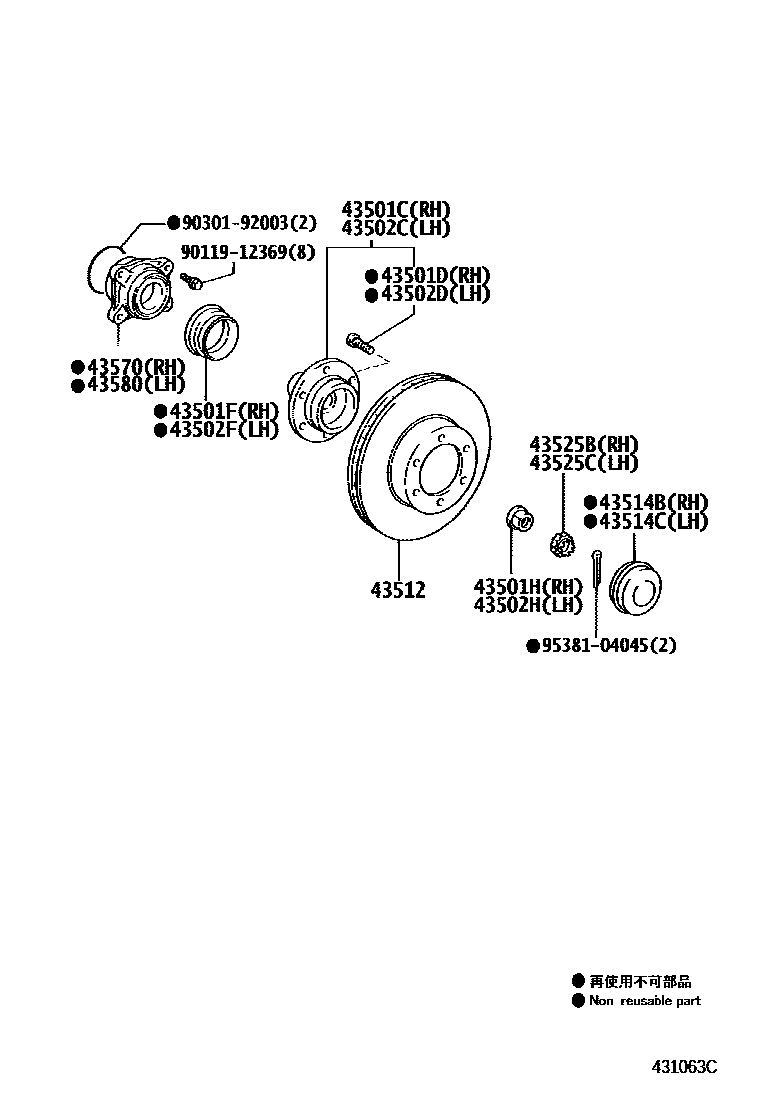

FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-60201iGSJ15201011-201801

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×6iGSJ15201011-201801

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90312-96001iGSJ15201011-201801

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90178-28002iGSJ15201011-201801

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-60201iGSJ15201011-201801

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×6iGSJ15201011-201801

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90312-96001iGSJ15201011-201801

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90178-28002iGSJ15201011-201801

43512DISC, FRONT

main43512-35322×2iGSJ15201011-201801

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-28010iGSJ15201011-201801

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-28010iGSJ15201011-201801

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-35010iGSJ15201011-201801

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-35010iGSJ15201011-201801

43570BEARING ASSY, FRONT AXLE W/ABS ROTOR RH

main43570-60010iGSJ15201011-201108

main43570-60011iGSJ15201109-201801

43580BEARING ASSY, FRONT AXLE W/ABS ROTOR LH

main43570-60010iGSJ15201011-201108

main43570-60011iGSJ15201109-201801

9011912369

main90119-12369

9030192003

main90301-92003

9538104045

main95381-04045

18 parts on this diagram · 1 diagram in section
