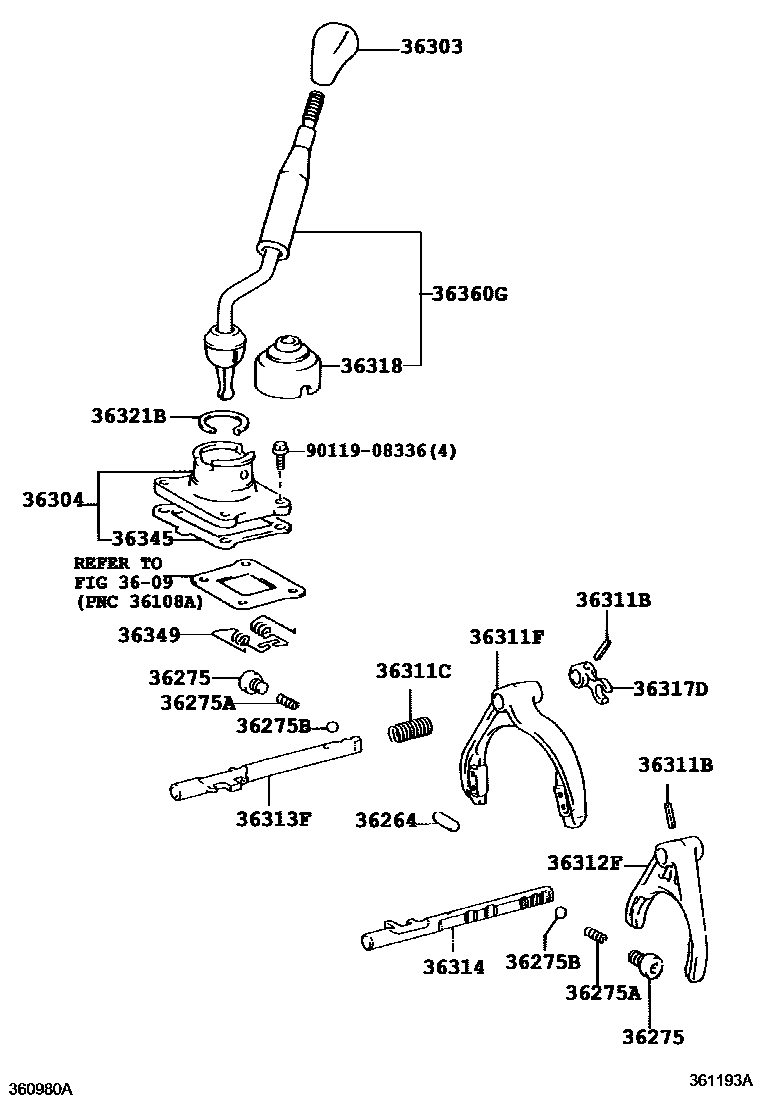

TRANSFER LEVER & SHIFT ROD

3609TRANSFER CASE & EXTENSION HOUSING

→ Go to FIG 36-09

36264PIN OR ROLLER, SHIFT INTER-LOCK

main90250-10020iGSJ15201011-201801

36275PLUG, SHIFT DETENT BALL SPRING

main90341-12014×2iGSJ15201011-201801

36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)

main90501-16116×2iGSJ15201011-201801

36275BBALL, SHIFT DETENT

main90360-10003×2iGSJ15201011-201801

36303KNOB SUB-ASSY, SHIFT LEVER

main36303-35210-B0iGSJ15201112-201408

36304RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER

main36304-35061iGSJ15201011-201801

36311BPIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)

main90254-05001×2iGSJ15201011-201801

36311CSPRING, COMPRESION (FOR SHIFT FORK)

main90501-20088iGSJ15201011-201801

36311FFORK, TRANSFER GEAR SHIFT, NO.1

main36311-35030iGSJ15201011-201801

36312FFORK, TRANSFER GEAR SHIFT, NO.2

main36312-35040iGSJ15201011-201801

36313FSHAFT, TRANSFER FRONT DRIVE SHIFT FORK

main36313-35070iGSJ15201011-201801

36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK

main36314-35140iGSJ15201011-201801

36317DSTOPPER, NO.2, TRANSFER SHIFT SHAFT

main36317-35030iGSJ15201011-201801

36318BOOT, TRANSFER FRONT DRIVE SHIFT

main33555-35190iGSJ15201011-201801

36321BRING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER)

main90521-49003iGSJ15201011-201801

36345GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER

main36345-35050iGSJ15201011-201801

36349SPRING, TRANSFER SELECT RETURN

main36349-35010iGSJ15201011-201801

36360GLEVER ASSY, TRANSFER HIGH & LOW SHIFT

main36360-35630iGSJ15201011-201801

9011908336

main90119-08336

20 parts on this diagram · 1 diagram in section
