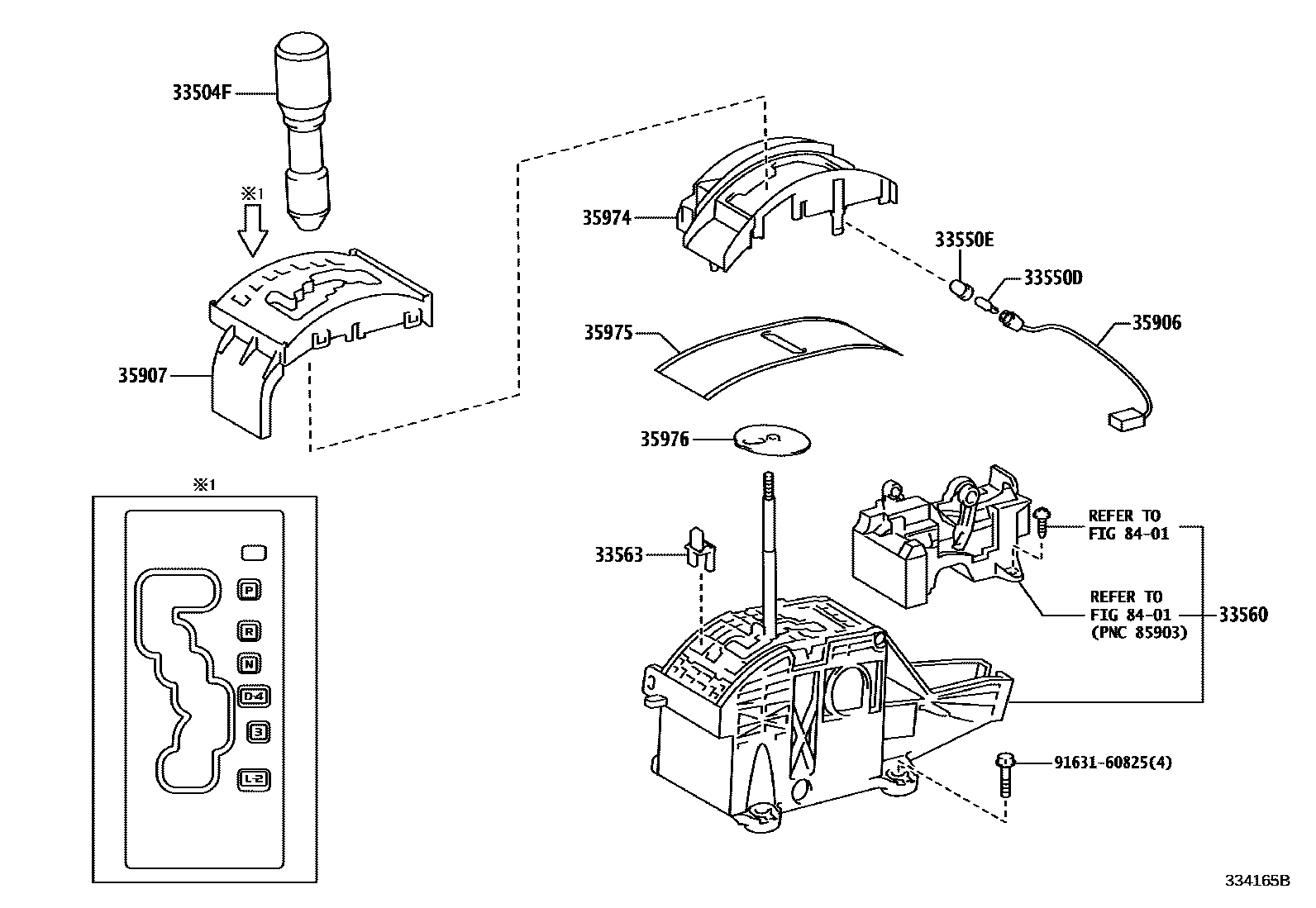

SHIFT LEVER & RETAINER

0001 1 0002 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-35101-B0supersedes 33504-35093-B0iGSJ15201011-201102

main33504-35103-B0supersedes 33504-35093-B0iGSJ15201102-201801

33550DBULB, POSITION INDICATOR LAMP

main90981-11018iGSJ15201011-201801

33550ECAP, POSITION INDICATOR LAMP

main35956-35020iGSJ15201011-201801

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-35060iGSJ15201011-201801

33563BUTTON, SHIFT LOCK RELEASE

main33563-35140iGSJ15201011-201801

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-35120iGSJ15201011-201801

35907HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)

main35907-35310iGSJ15201011-201801

35974HOUSING, POSITION INDICATOR, LOWER

main35974-35200iGSJ15201011-201801

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-35150iGSJ15201011-201801

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-35100iGSJ15201011-201801

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9163160825

main91631-60825

12 parts on this diagram · 2 diagrams in section
